Fuel Lid Opener System: Notes

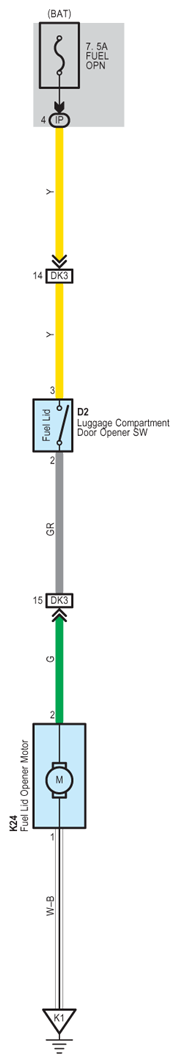

Fig 1: Fuel Lid Opener - Circuit Diagram

G07616604

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
