Push-Button Start, Engine Immobiliser and Steering Lock System: Notes

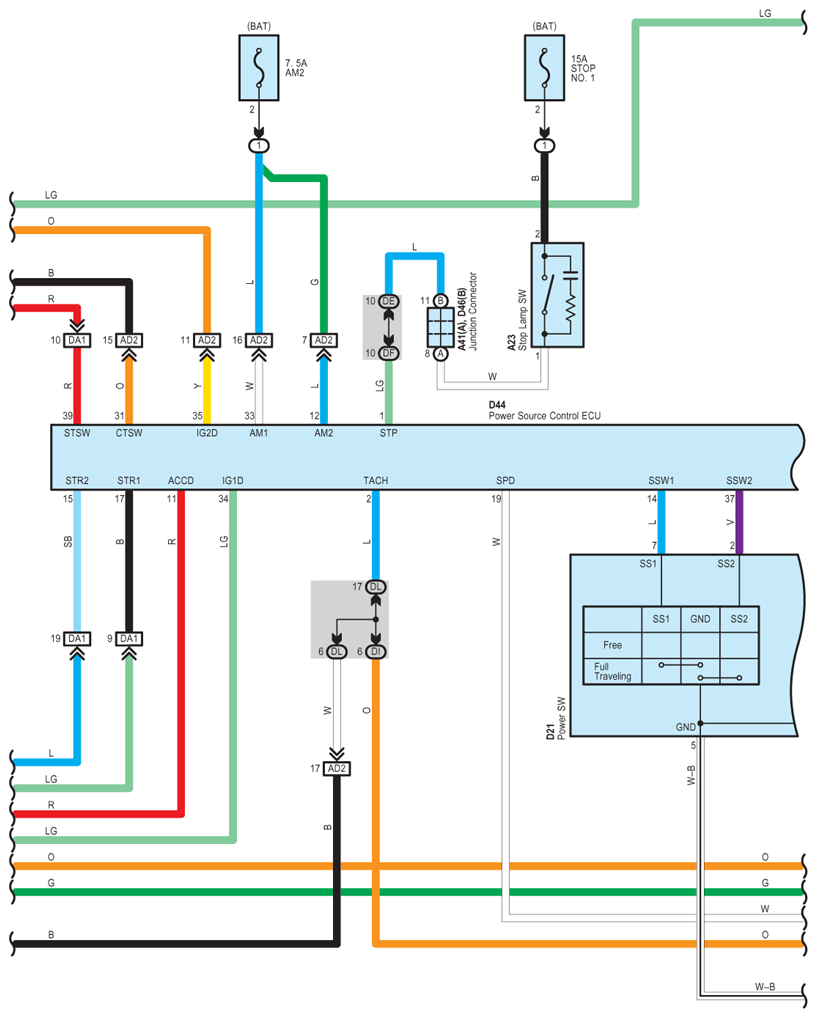

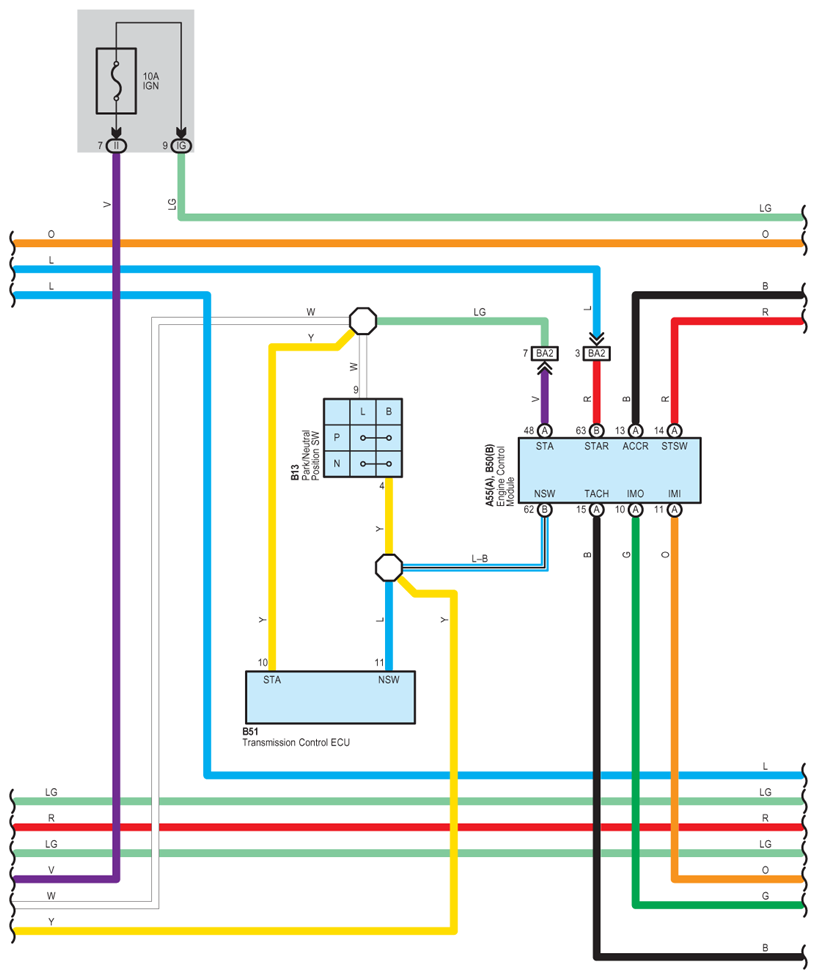

Fig 1: Push-Button Start, Engine Immobiliser And Steering Lock - Circuit Diagram (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

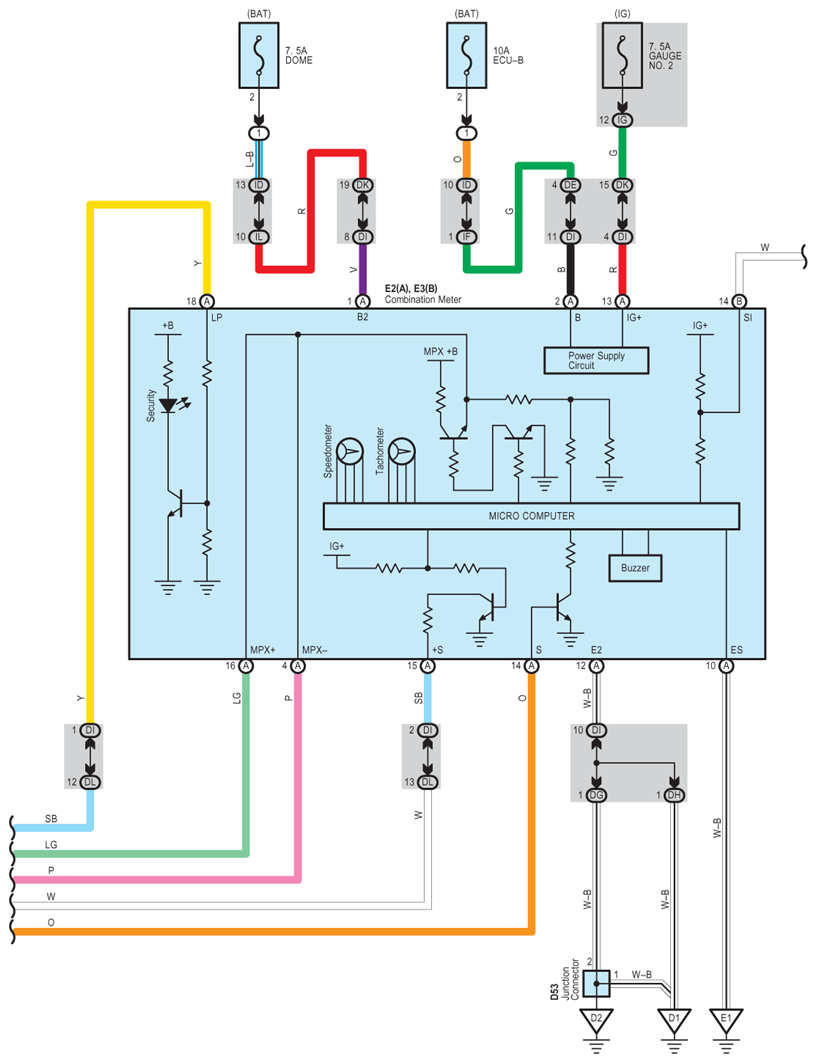

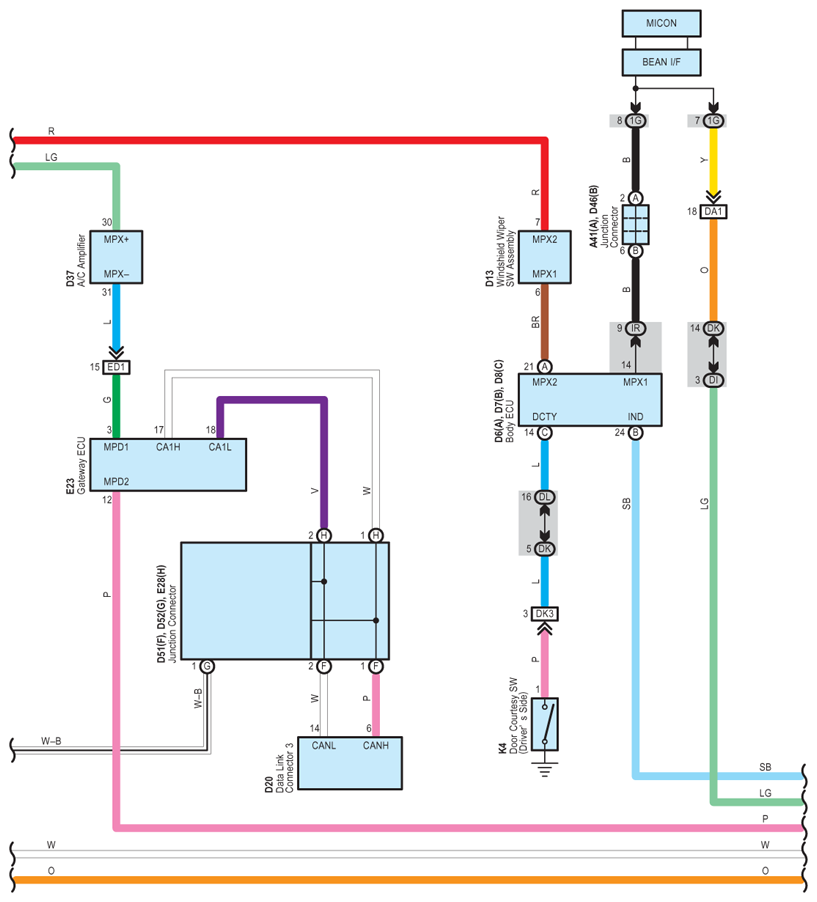

Fig 2: Push-Button Start, Engine Immobiliser And Steering Lock - Circuit Diagram (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

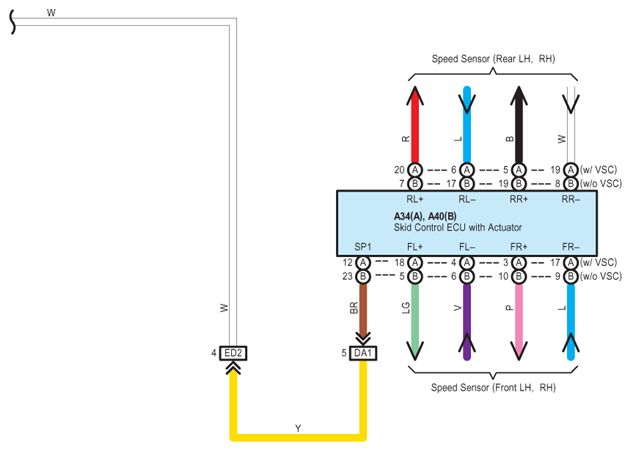

Fig 3: Push-Button Start, Engine Immobiliser And Steering Lock - Circuit Diagram (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

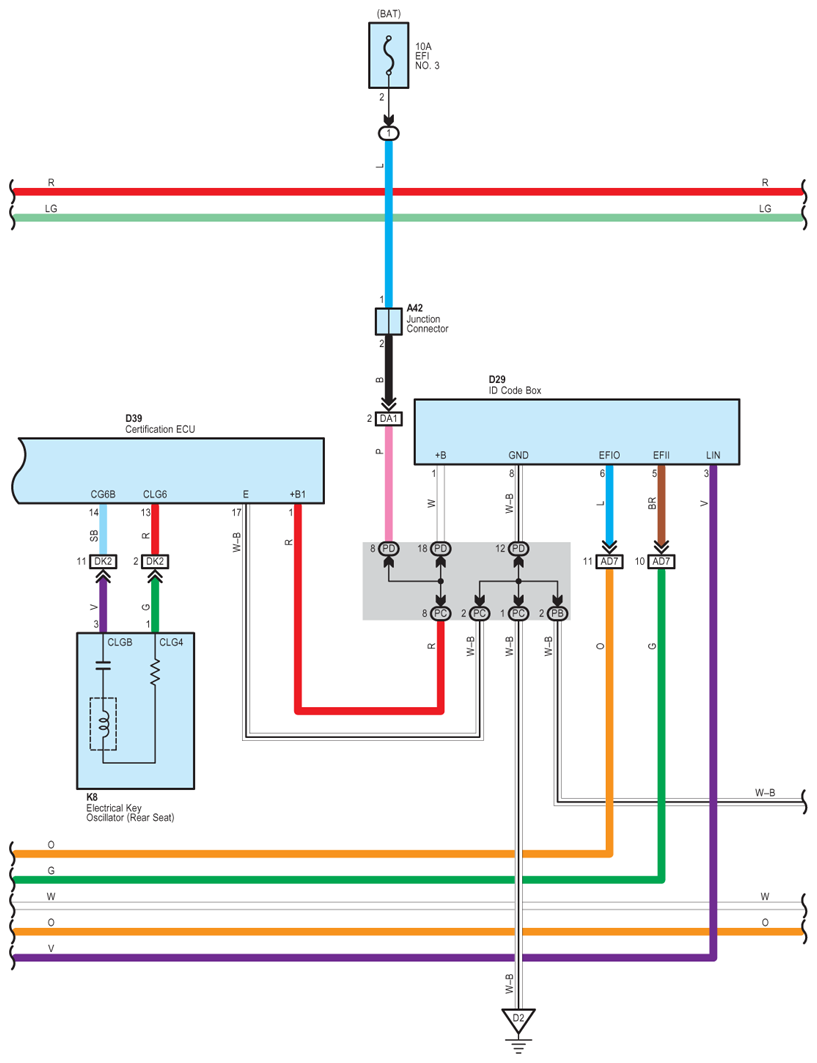

Fig 4: Push-Button Start, Engine Immobiliser And Steering Lock - Circuit Diagram (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

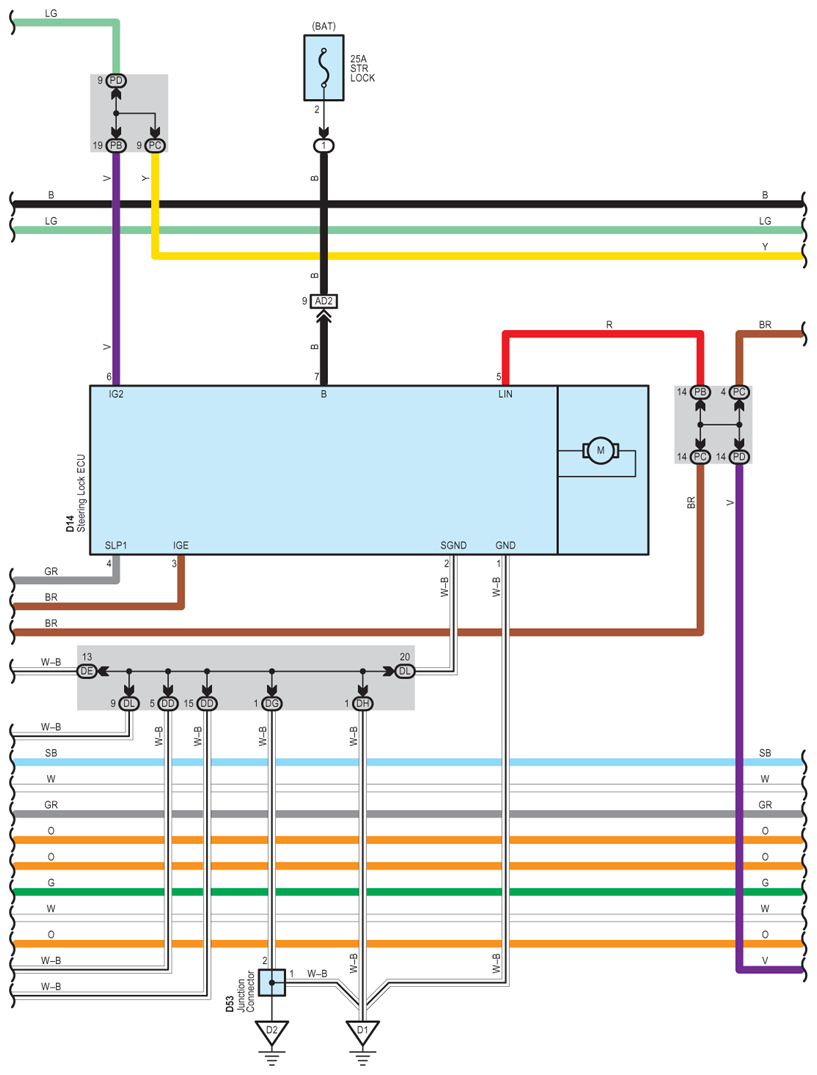

Fig 5: Push-Button Start, Engine Immobiliser And Steering Lock - Circuit Diagram (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

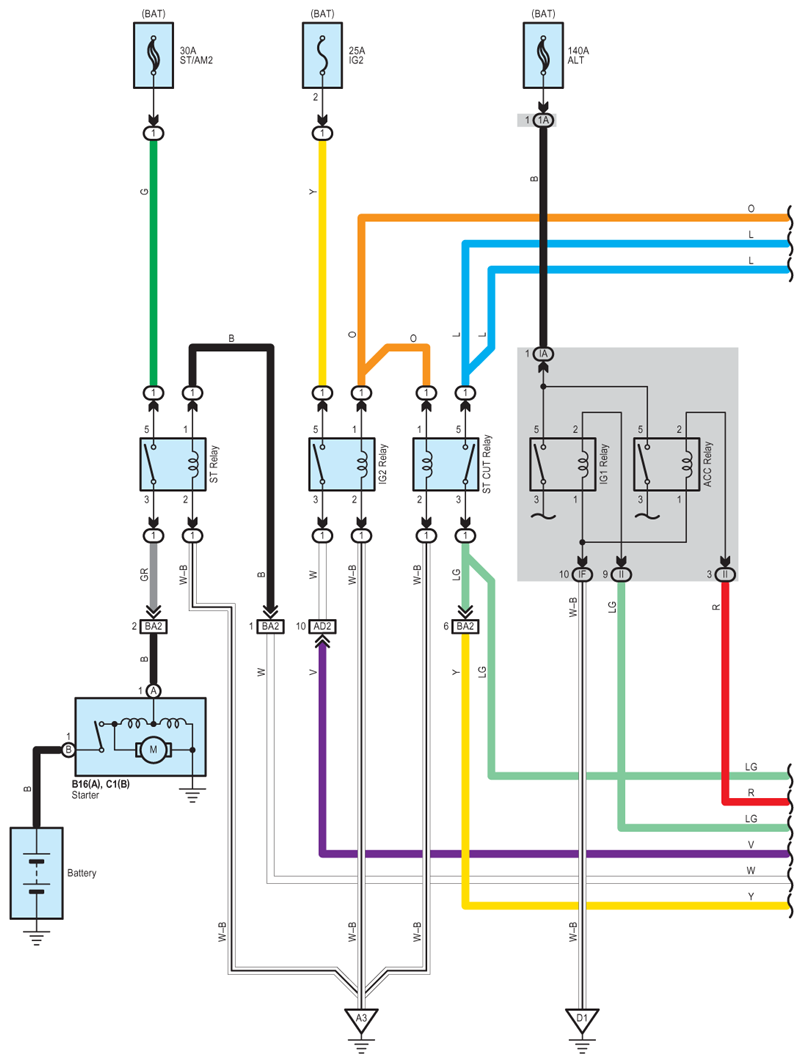

Fig 6: Push-Button Start, Engine Immobiliser And Steering Lock - Circuit Diagram (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

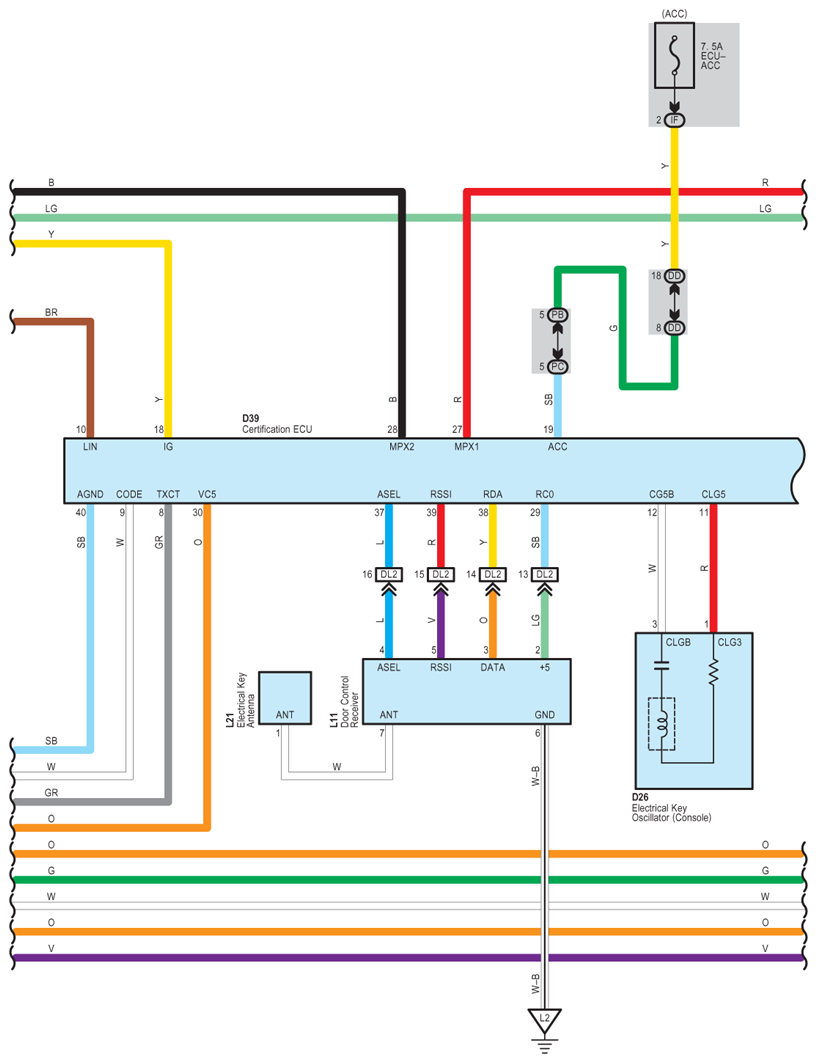

Fig 7: Push-Button Start, Engine Immobiliser And Steering Lock - Circuit Diagram (7 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

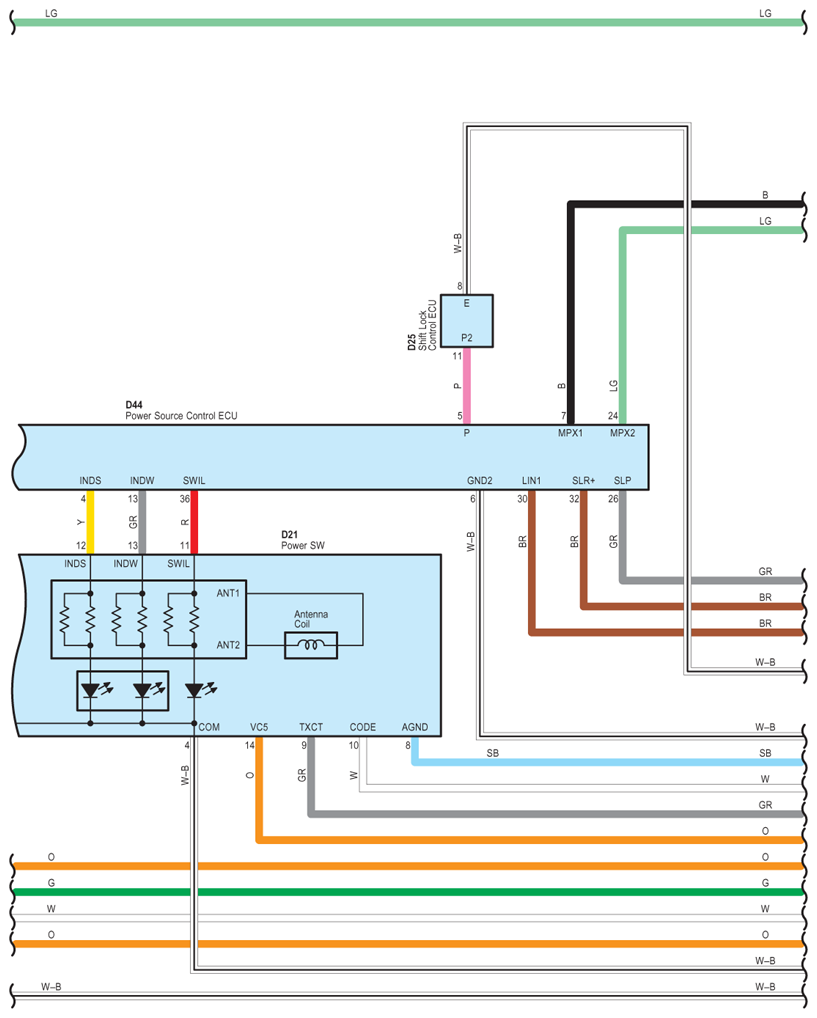

Fig 8: Push-Button Start, Engine Immobiliser And Steering Lock - Circuit Diagram (8 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Push-Button Start, Engine Immobiliser And Steering Lock - Circuit Diagram (9 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Push-Button Start, Engine Immobiliser And Steering Lock - Circuit Diagram (10 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
