System Diagram

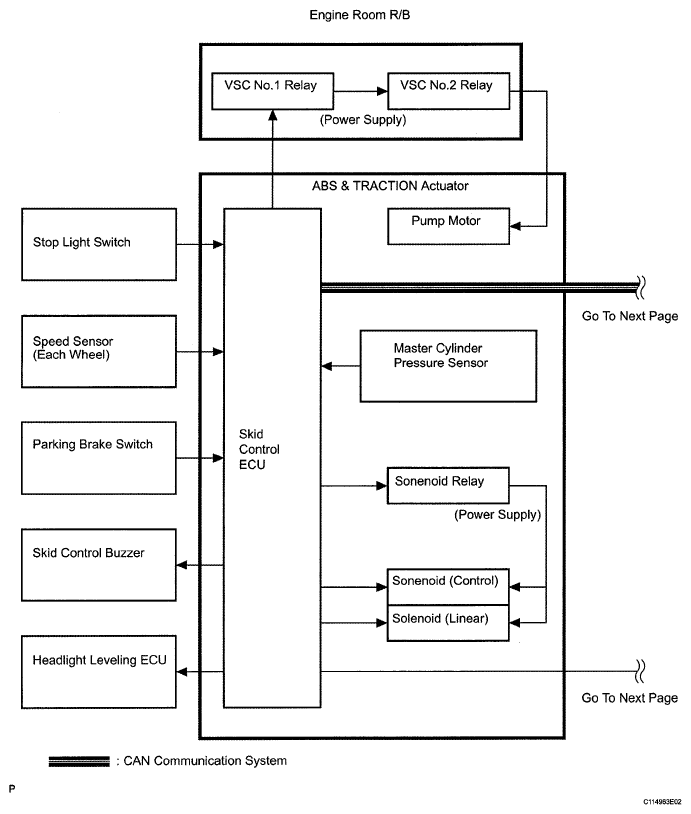

Fig 1: Vehicle Stability Control System - System Wiring Diagram (1 Of 2)
G05406659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

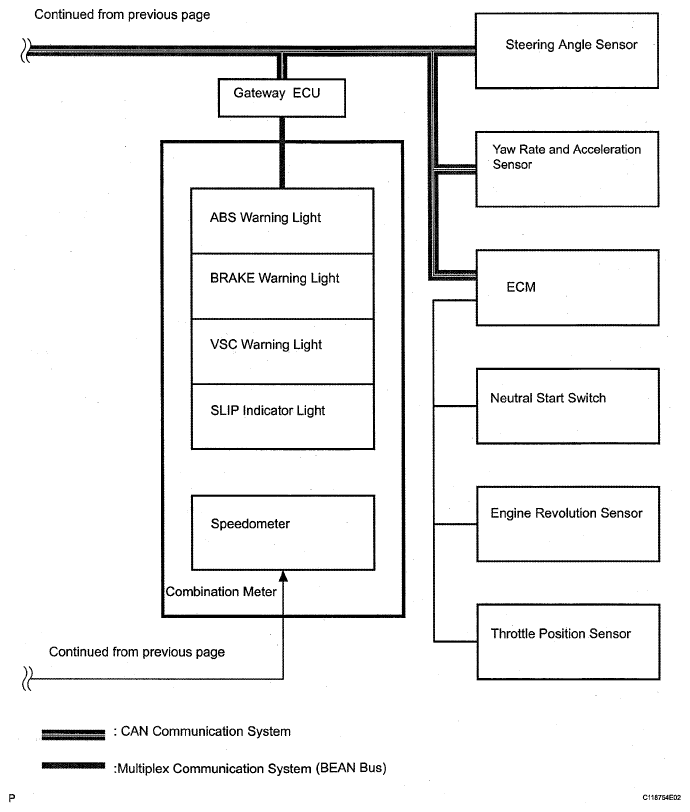

Fig 2: Vehicle Stability Control System - System Wiring Diagram (2 Of 2)
G05406660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ECU SIGNAL REFERENCE CHART

Transmitting ECU (transmitter) Receiving ECU Signals Communication method
ECM Skid Control ECU
  • Shift Position signal
  • Throttle Position Signal
  • Engine Revolution Signal
 CAN Communication System
Skid Control ECU ECM
  • Yaw Rate and Acceleration Signal
  • Torque Demand Signal
 CAN Communication System
Skid Control ECU Combination Meter
  • ABS Warning Light ON Signal
  • VSC Warning Light ON Signal
  • Brake Warning Light ON Signal
  • SLIP Indicator Light ON Signal
  • CAN Communication System
  • Multiplex communication System
