Multi Display System without Navigation System: Notes

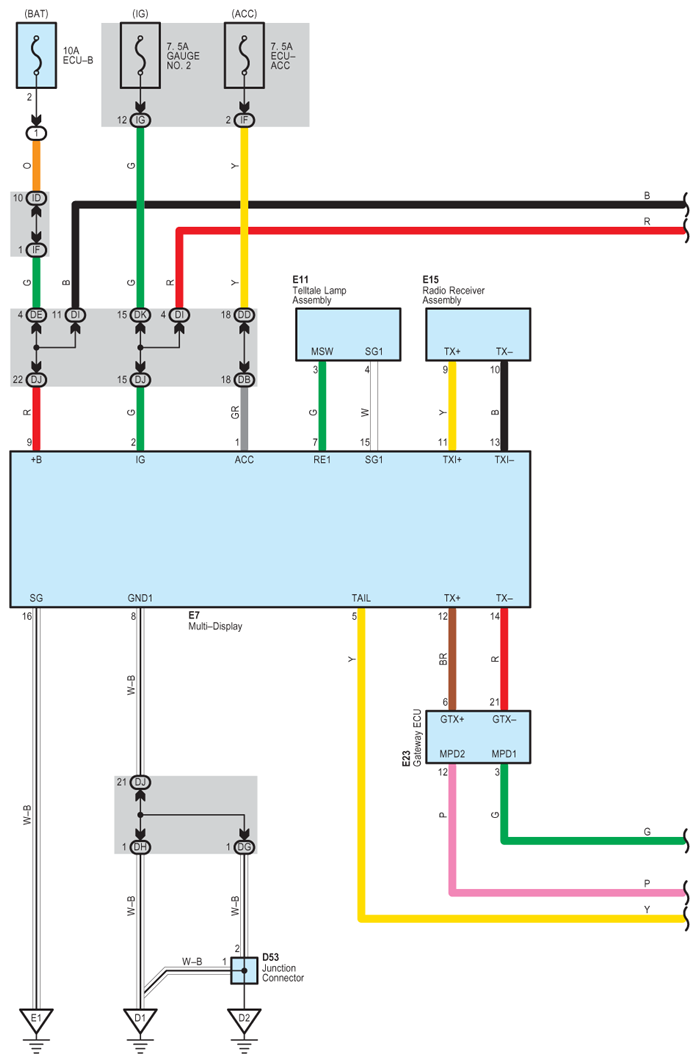

Fig 1: Multi Display Without Navigation System - Circuit Diagram (1 Of 3)
G07616612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

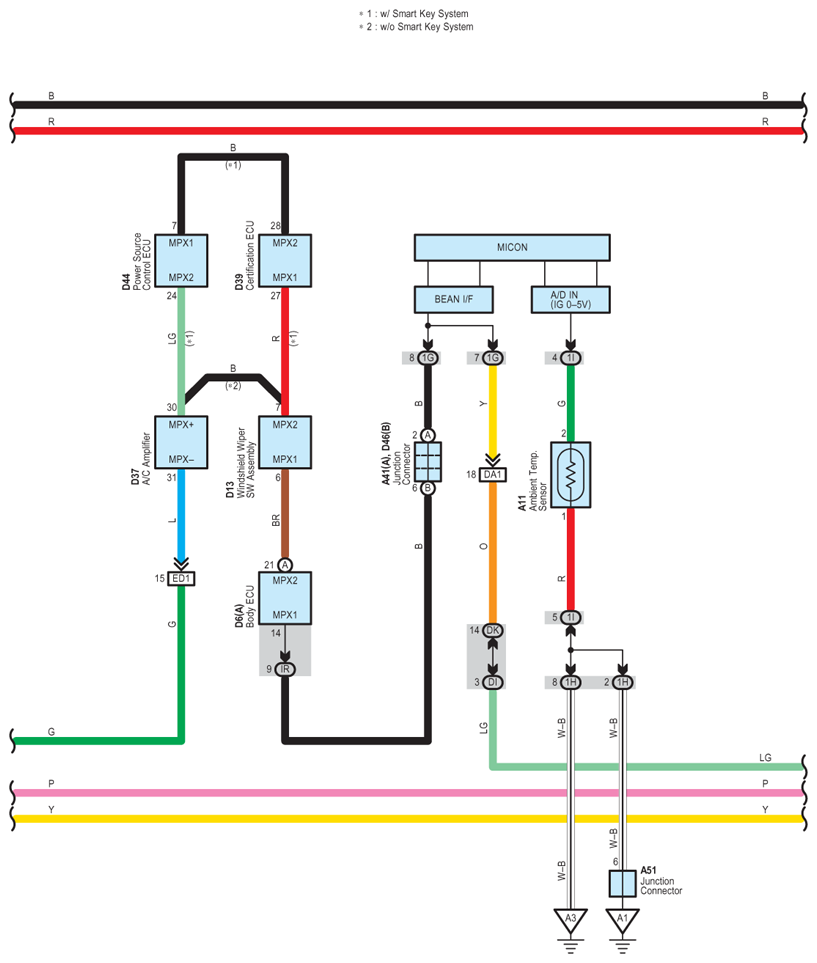

Fig 2: Multi Display Without Navigation System - Circuit Diagram (2 Of 3)
G07616613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

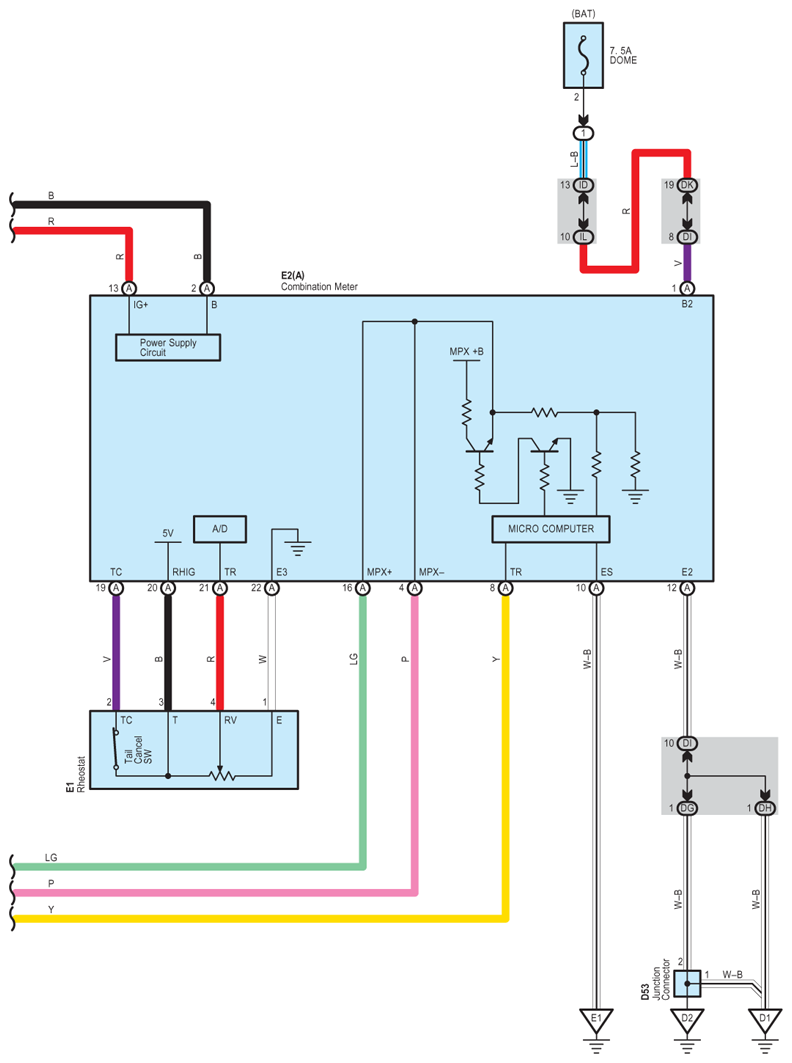

Fig 3: Multi Display Without Navigation System - Circuit Diagram (3 Of 3)
G07616614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
