Remote Control System Mirror without Memory: Notes

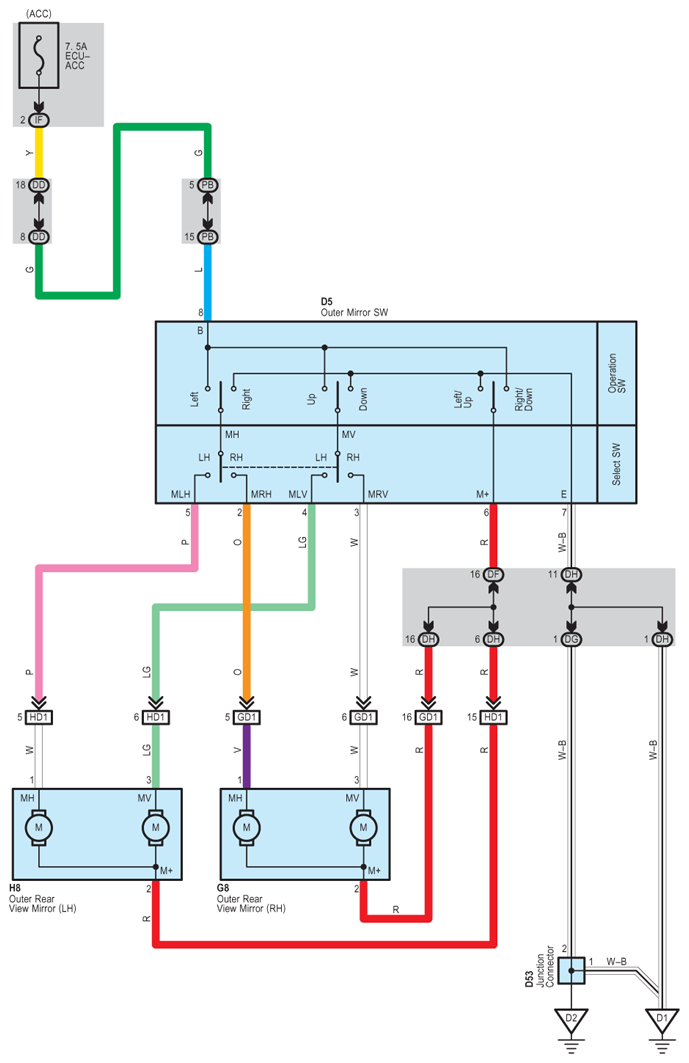

Fig 1: Remote Control Mirror Without Memory - Circuit Diagram
G07616598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
