Inspection Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK MIL CONDITION (MIL IS ILLUMINATED)
    1. Perform troubleshooting in accordance with the table below.
    CONDITION CHART

    Conditions Proceed to
    MIL remains ON A
    MIL does not illuminate B

    B:  Go to step  5

    A: Go to next step

  2. CHECK MIL CONDITION (WHETHER MIL TURNS OFF)
    1. Connect Techstream to the DLC3.
    2. Turn the power switch on (IG) and turn the tester on.
    3. Select the following menu items: Powertrain / Engine / Trouble Code.
    4. Check if any DTCs have been stored. Note down any DTCs.
    5. Clear the DTCs (See DTC CHECK/CLEAR ).
    6. Check if the MIL goes off.

      Standard:

      MIL should go off.

    OK: REPAIR CIRCUITS INDICATED BY OUTPUT DTCS

    NG: Go to next step

  3. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN WIRE HARNESS)
    1. Disconnect the A61 hybrid vehicle control ECU connector.
      2. Fig 1: Identifying A61 Hybrid Vehicle Control ECU Connector Terminals
      G05007963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the power switch on (IG).
    3. Check that the MIL is not illuminated.

      OK:

      MIL is not illuminated.

    4. Reconnect the hybrid vehicle control ECU connector.

    OK: REPLACE HYBRID VEHICLE CONTROL ECU

    NG: Go to next step

  4. CHECK HARNESS AND CONNECTOR (COMBINATION METER - HYBRID VEHICLE CONTROL ECU)
    1. Disconnect the A61 hybrid vehicle control ECU connector.
    2. Disconnect the F2 combination meter connector.

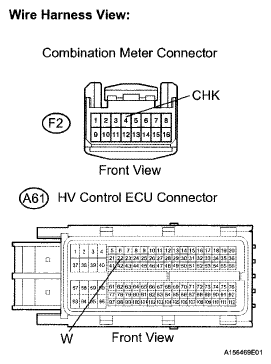

      3. Fig 2: Identifying F2 Combination Meter Connector Terminals
      G05007964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance.

      Standard resistance (Check for short)

      TESTER CONNECTIONS SPECIFIED CONDITIONS

      Tester Connections Specified Conditions
      A61-22 (W) or F2-4 (CHK) - Body ground 10 kΩ or higher
    4. Reconnect the hybrid vehicle control ECU connector.
    5. Reconnect the combination meter connector.

    OK: REPAIR OR REPLACE COMBINATION METER ASSEMBLY

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

  5. CHECK MIL CONDITION (MIL ILLUMINATED)
    1. Check if the MIL is illuminated when the power switch is turned on (IG).

      OK:

      MIL should be illuminated.

    OK: SYSTEM IS OK

    NG: Go to next step

  6. CHECK THAT ENGINE START
    1. Turn the power switch on (IG).
    2. Put the engine in inspection mode (See INSPECTION MODE PROCEDURE ).

    Result

    RESULT CHART

    Result Proceed to
    Engine starts A
    Engine does not start* B

    HINT:

    *: Techstream cannot communicate with the hybrid vehicle control ECU.

    B:  Go to VC OUTPUT CIRCUIT

    A: Go to next step

  7. INSPECT COMBINATION METER ASSEMBLY (MIL CIRCUIT)
    1. Check the MIL circuit (See PROBLEM SYMPTOMS TABLE ).

    NG: REPAIR OR REPLACE COMBINATION METER ASSEMBLY

    OK: CHECK AND REPLACE HARNESS OR CONNECTOR (COMBINATION METER - HYBRID VEHICLE CONTROL ECU)
