Knock Sensor, Intake Manifold: Components

WARNING: This page is about a different variant/trim than selected.

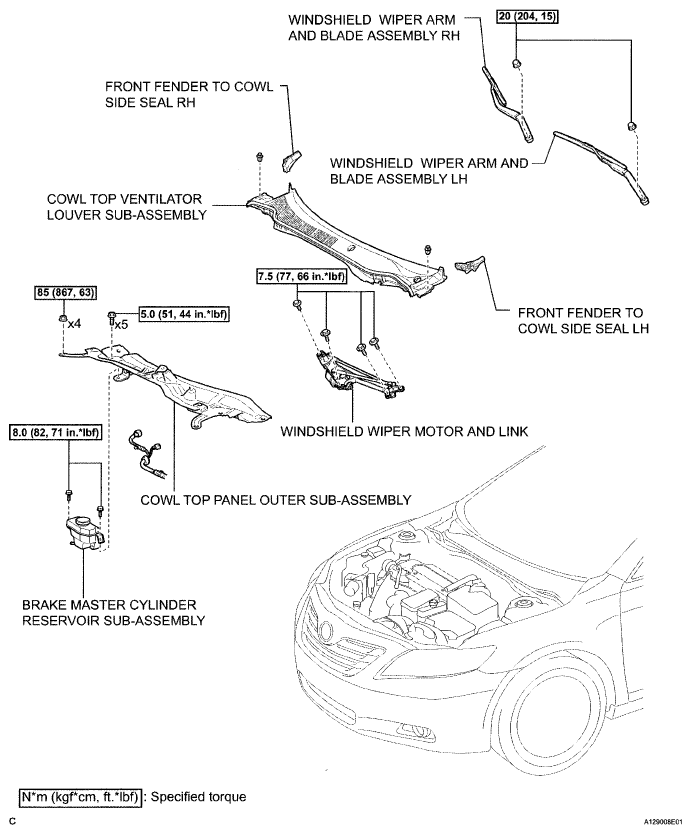

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (1 Of 3)
G05008043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

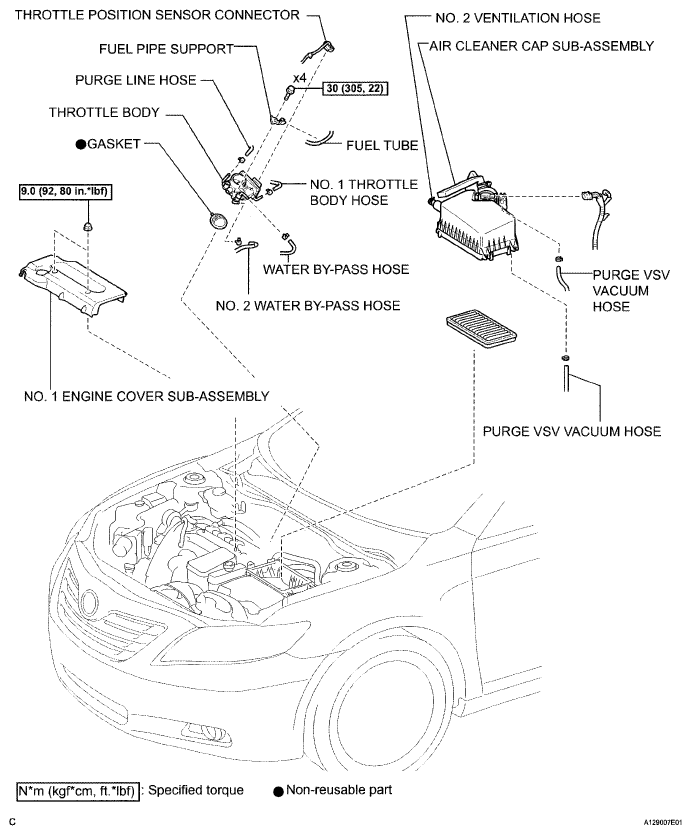

Fig 2: Throttle Position Sensor Replacement Components With Torque Specifications
G05008008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

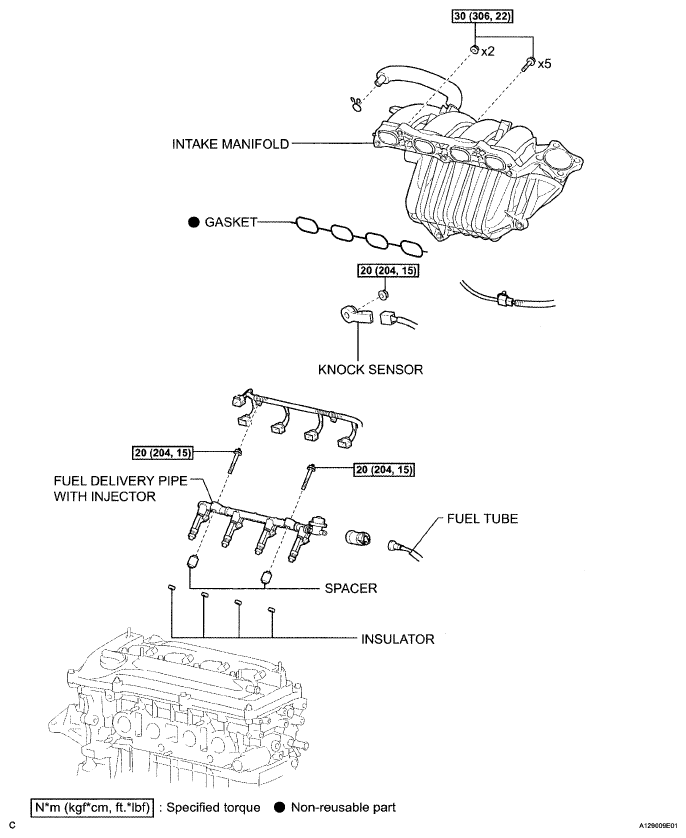

Fig 3: Knock Sensor Replacement Components With Torque Specifications (3 Of 3)
G05008045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
