Front Shock Absorber: Components

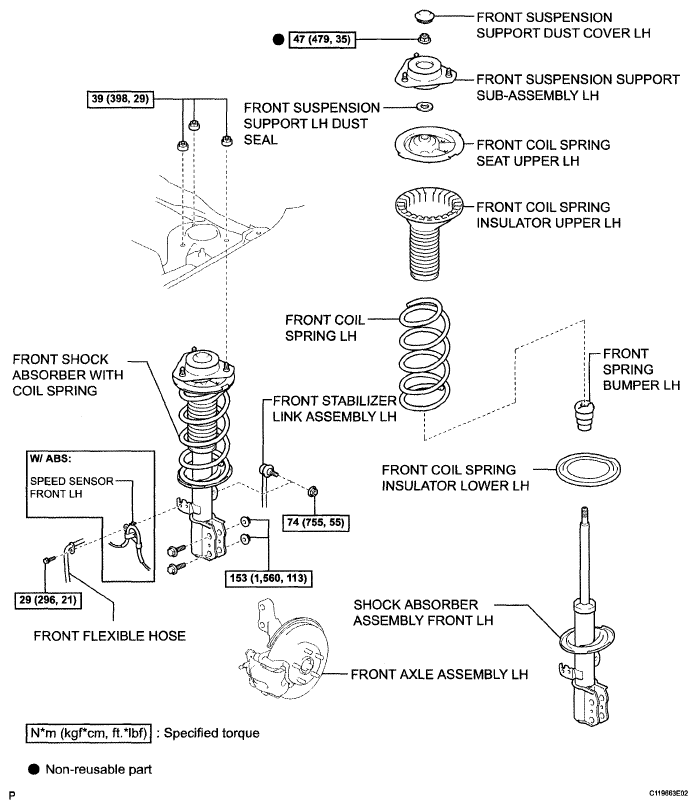

Fig 1: Front Shock Absorber Replacement Components With Torque Specifications
G05194632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
