Engine Control System: Notes

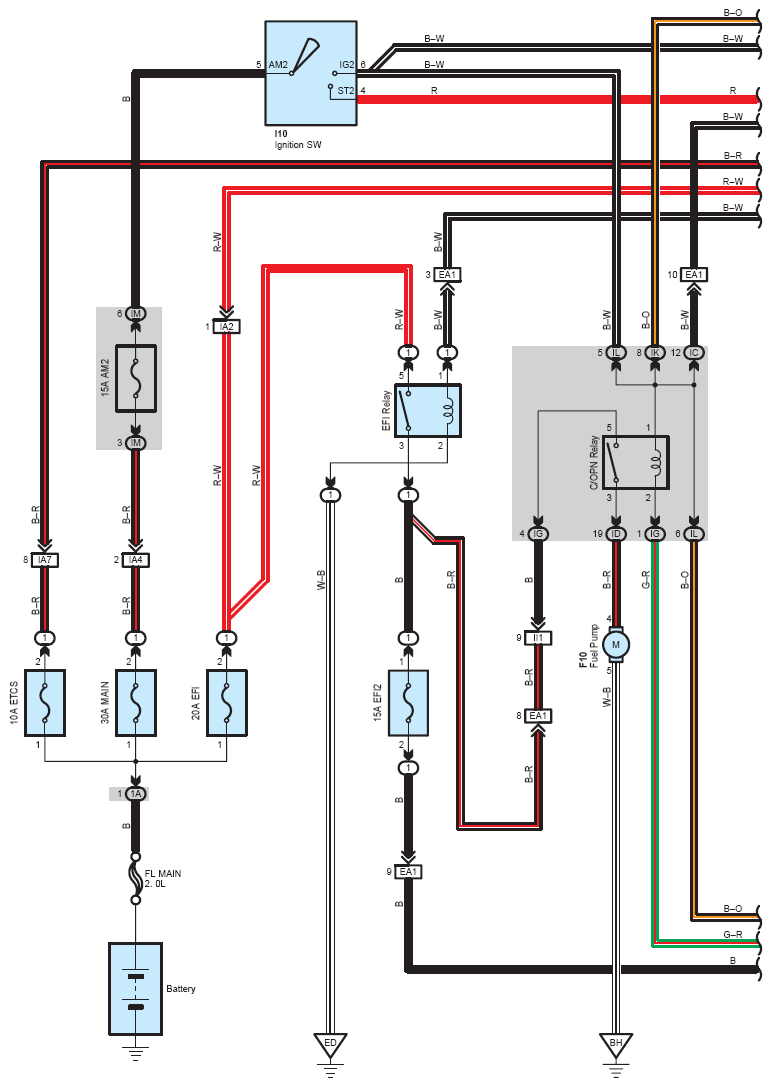

Fig 1: Engine Control - Circuit Diagram (1 Of 8)

G07604050

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

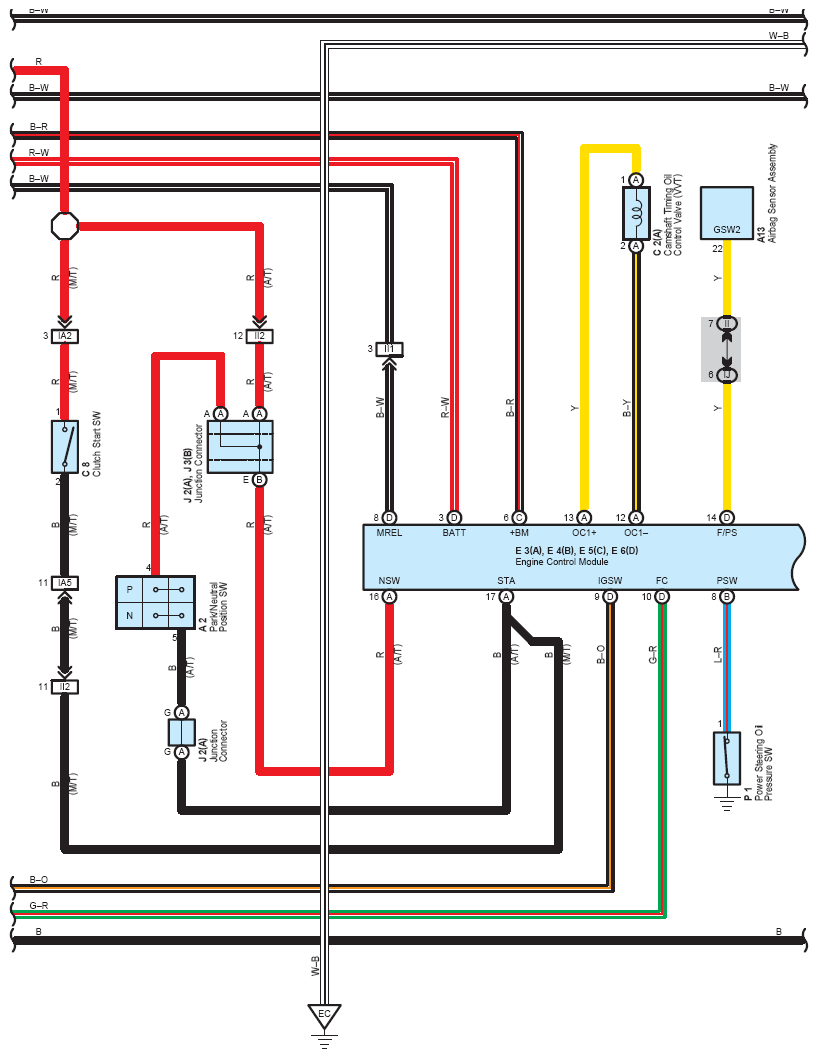

Fig 2: Engine Control - Circuit Diagram (2 Of 8)

G07604051

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

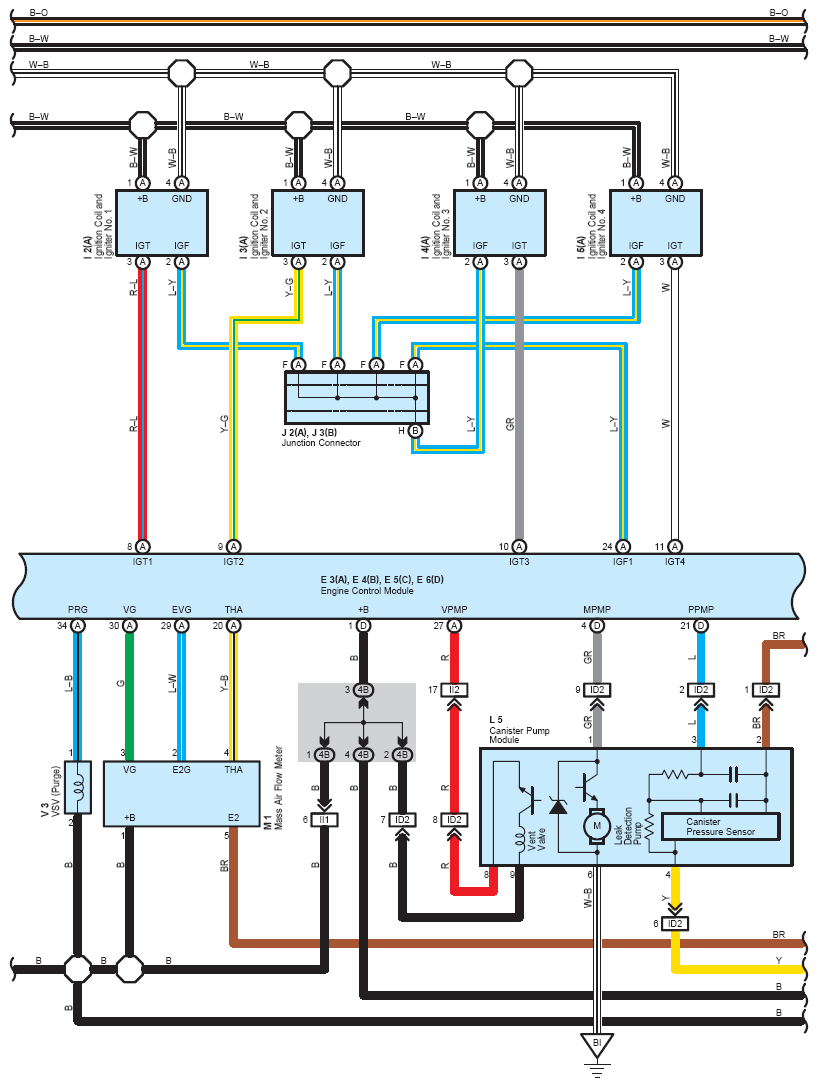

Fig 3: Engine Control - Circuit Diagram (3 Of 8)

G07604052

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

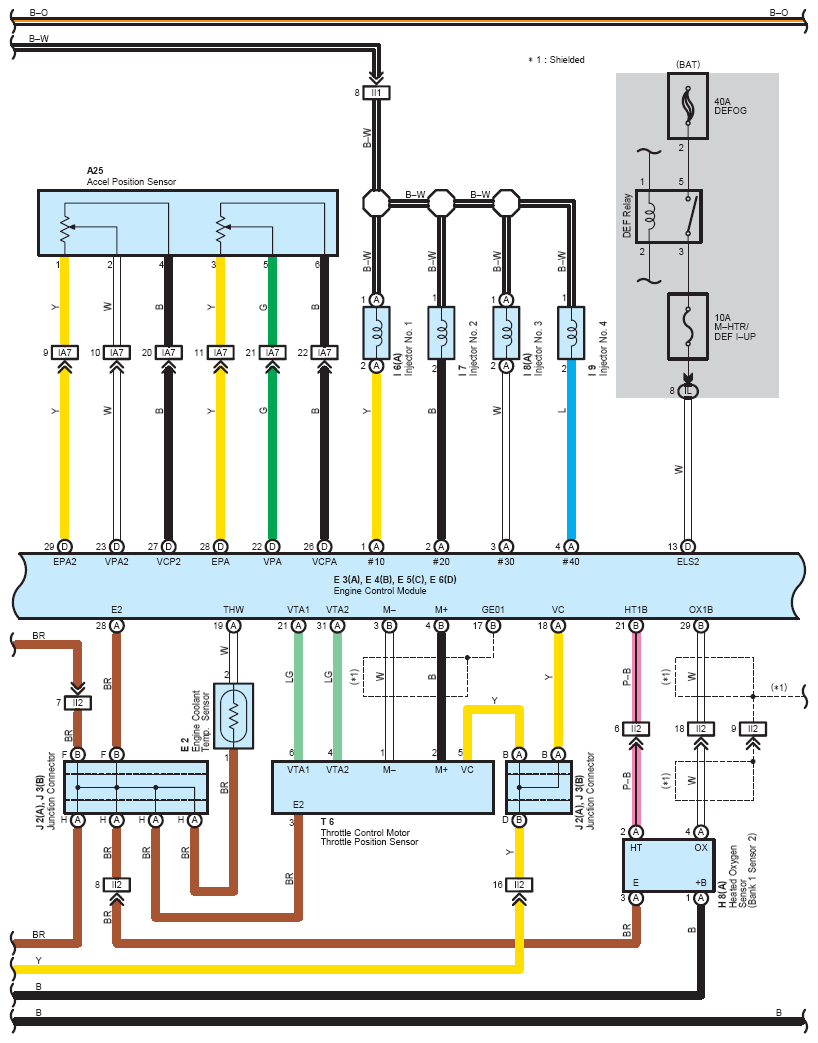

Fig 4: Engine Control - Circuit Diagram (4 Of 8)

G07604053

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

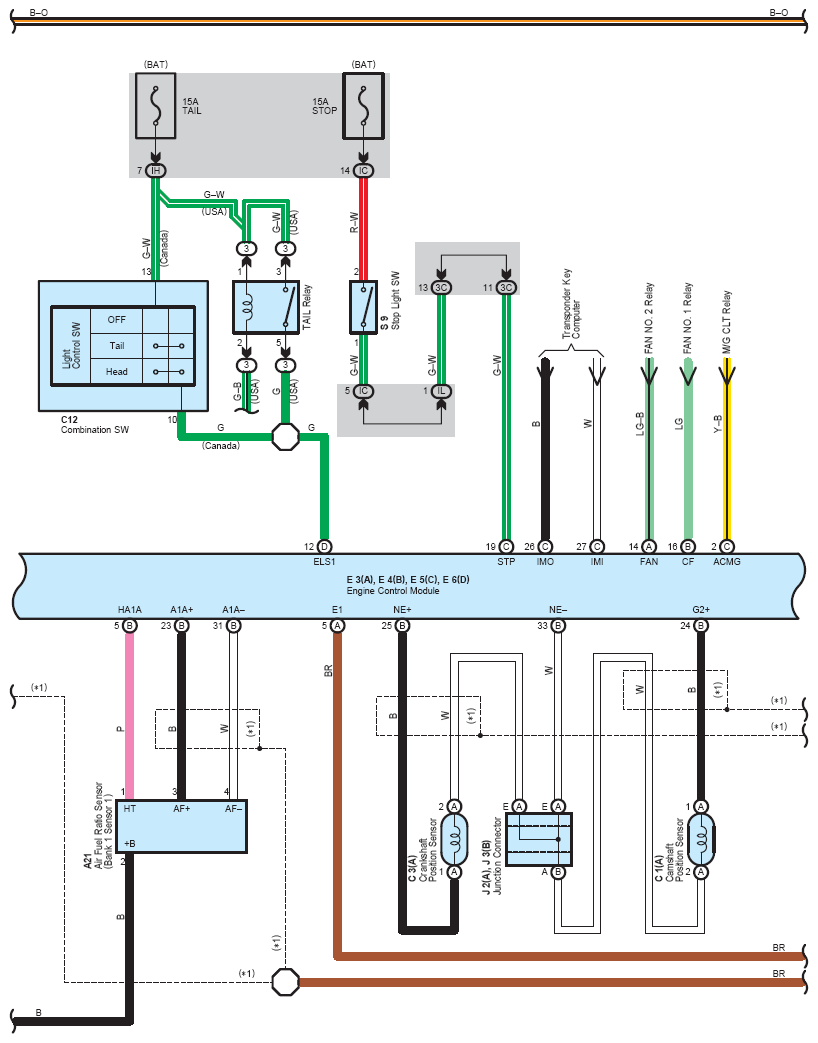

Fig 5: Engine Control - Circuit Diagram (5 Of 8)

G07604054

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

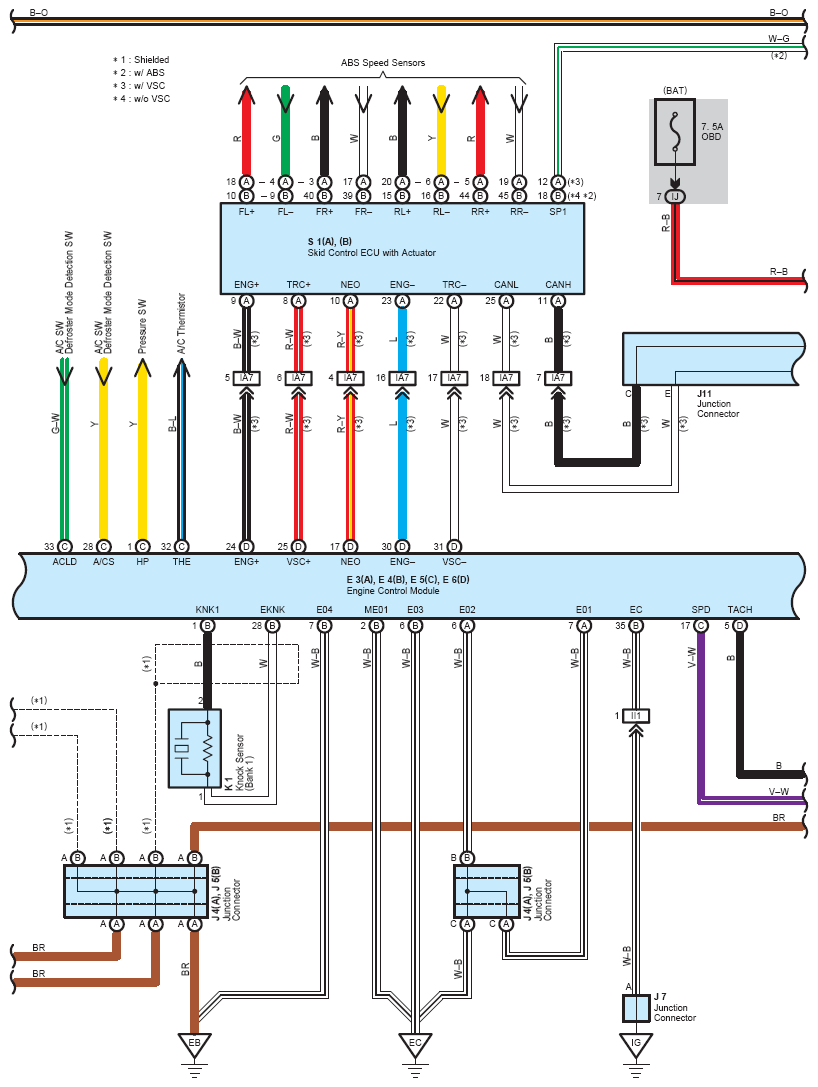

Fig 6: Engine Control - Circuit Diagram (6 Of 8)

G07604055

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

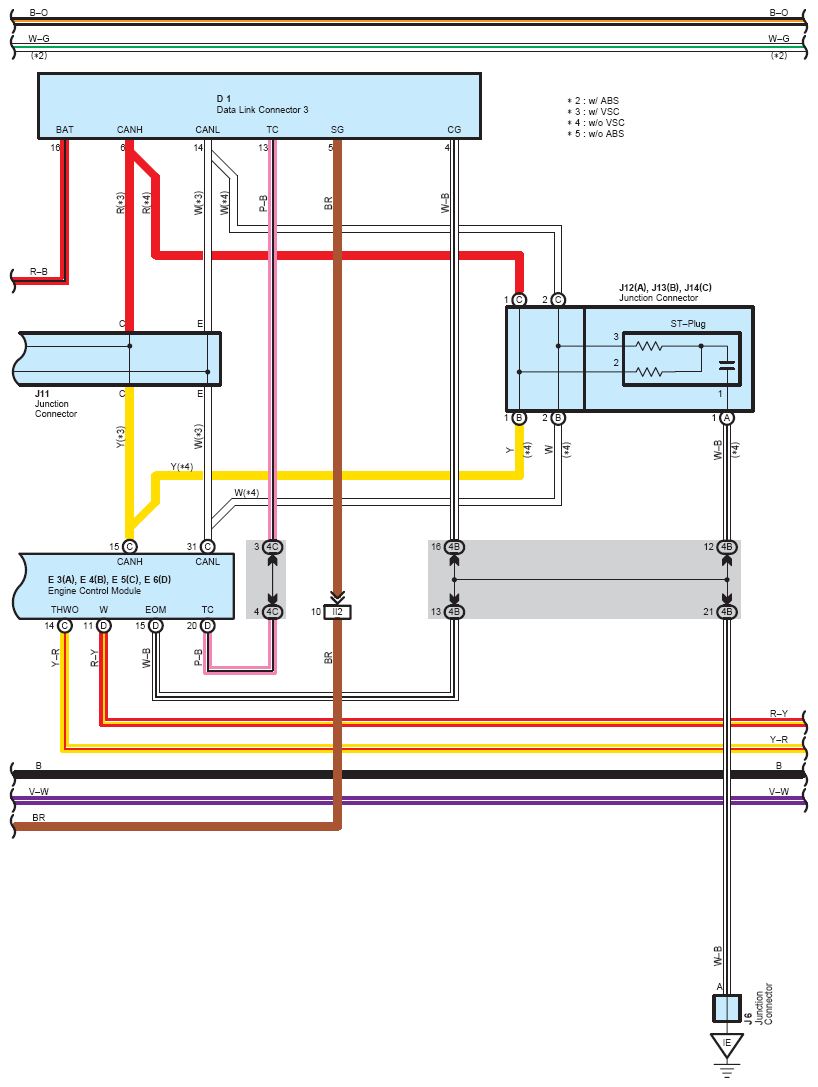

Fig 7: Engine Control - Circuit Diagram (7 Of 8)

G07604056

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

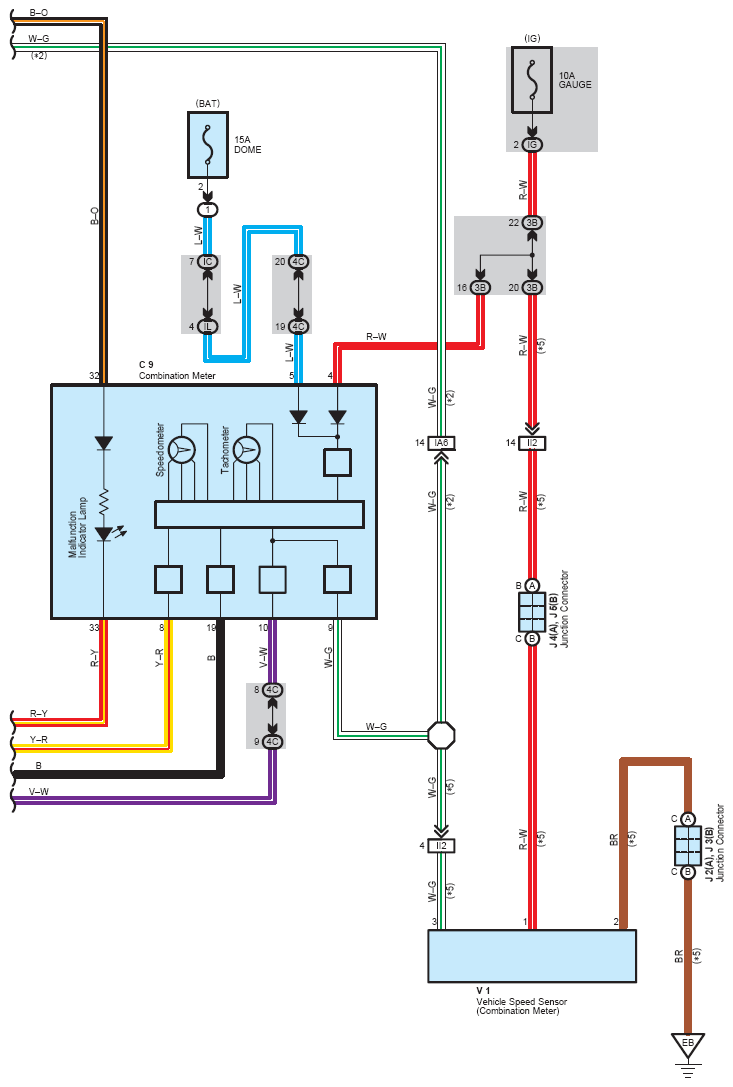

Fig 8: Engine Control - Circuit Diagram (8 Of 8)

G07604057

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
