Front Speed Sensor: Removal

WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

REMOVE FRONT WHEEL
REMOVE FRONT FENDER LINER LH
REMOVE SPEED SENSOR FRONT LH
1. Disconnect the speed sensor connector and clamp.

  Fig 1: Identifying Speed Sensor Connector And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 clamp bolts and disconnect the speed sensor harness from the body and shock absorber.

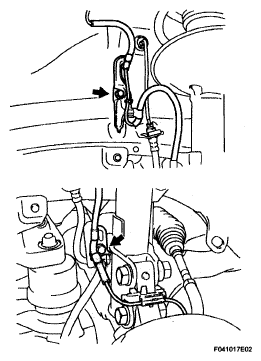

  Fig 2: Identifying Speed Sensor Harness Clamp Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the bolt and the speed sensor front LH.
  NOTE: Prevent foreign matter from attaching to the sensor tip.

  Fig 3: Identifying Speed Sensor Front LH Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
