Inspection Procedure

WARNING: This page is about a different car, the 2007 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT RADIO RECEIVER

Disconnect the radio receiver connector.

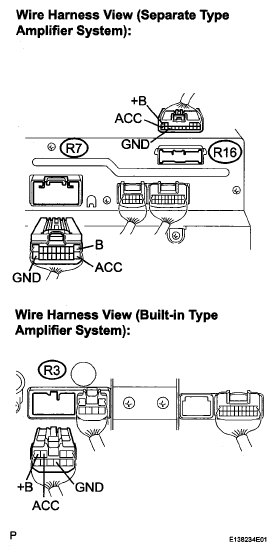

Fig 1: Identifying Radio Receiver Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value (s) in the table below.

Standard resistance

STANDARD RESISTANCE SPECIFICATION

Tester connection	Condition	Specified condition
GND - Body ground	Always	Below 1 Ω

Measure the voltage according to the value (s) in the table below.

Standard voltage

STANDARD VOLTAGE SPECIFICATION

Tester connection

Condition

Specified condition

+B-GND

Always

10 to 14 V

B-GND (⁽¹⁾)

Always

10 to 14 V

ACC-GND

Ignition switch ACC

10 to 14 V

⁽¹⁾	for Separate Type Amplifier System

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
