Audio System with Stereo Component Amplifier: Notes

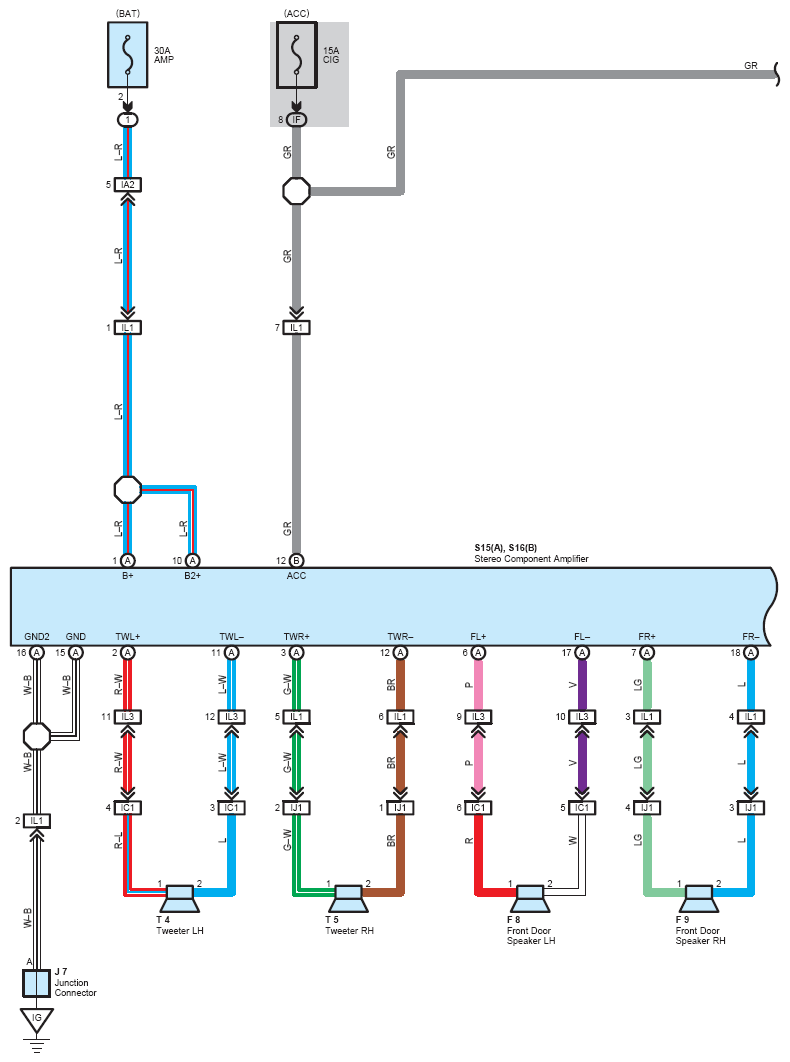

Fig 1: Audio System With Stereo Component Amplifier - Circuit Diagram (1 Of 2)
G07604122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

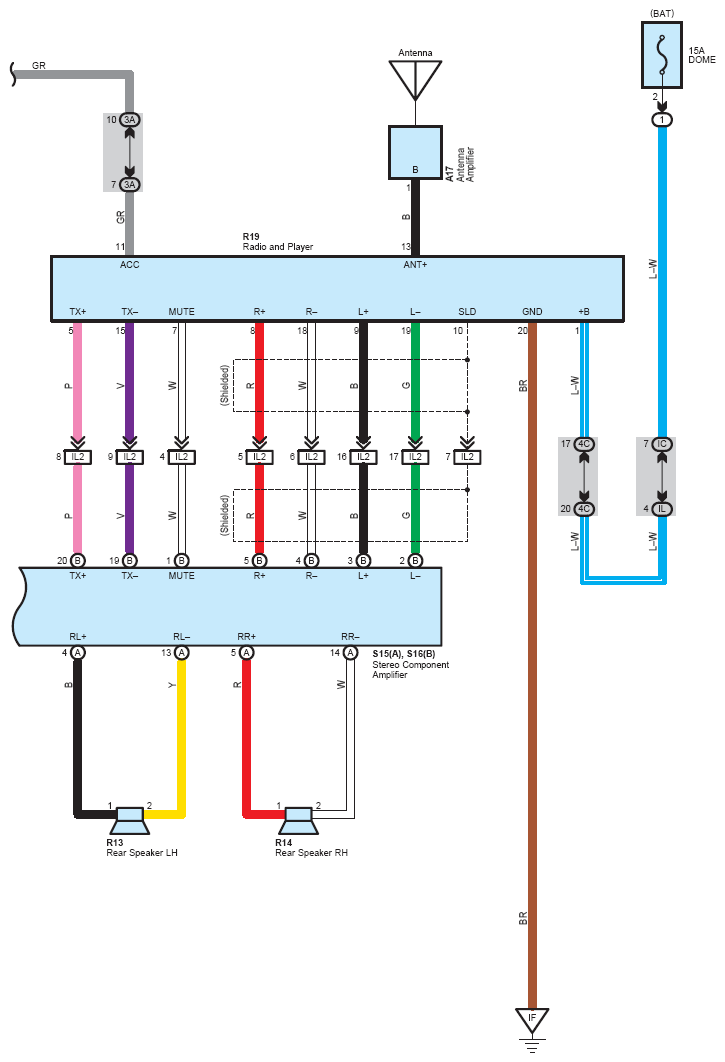

Fig 2: Audio System With Stereo Component Amplifier - Circuit Diagram (2 Of 2)
G07604123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
