Fog Light System: Notes

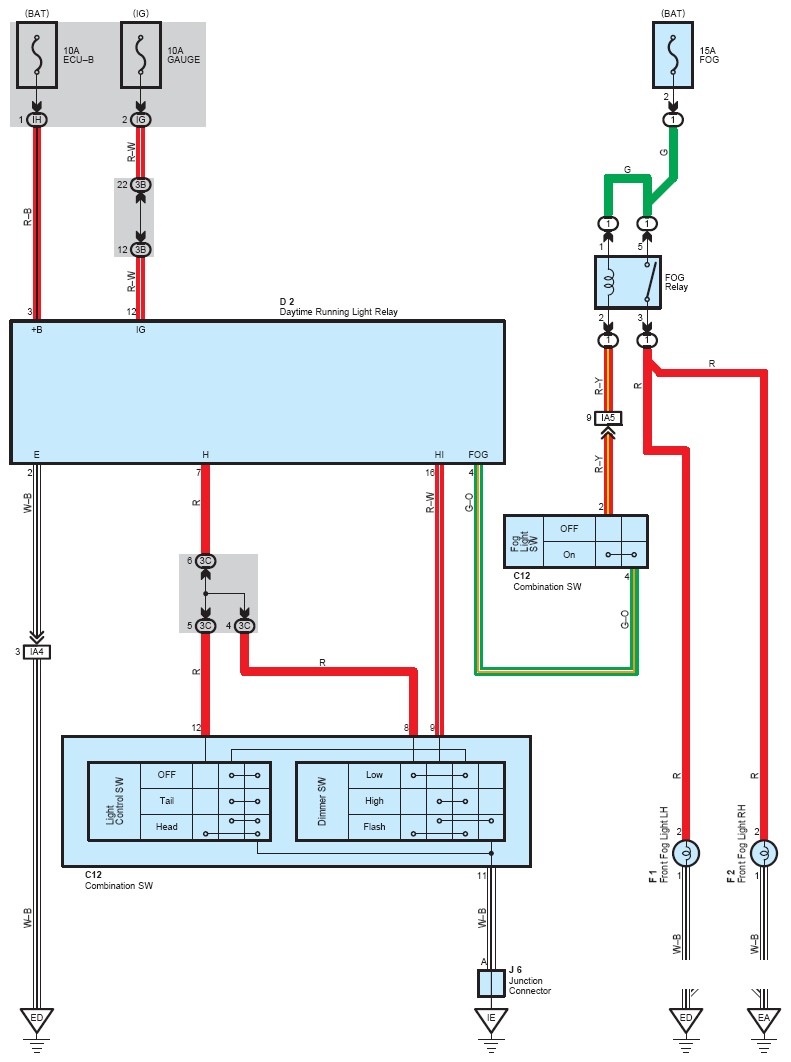

Fig 1: Fog Light - Circuit Diagram
G07604062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
