Cruise Control System: Notes

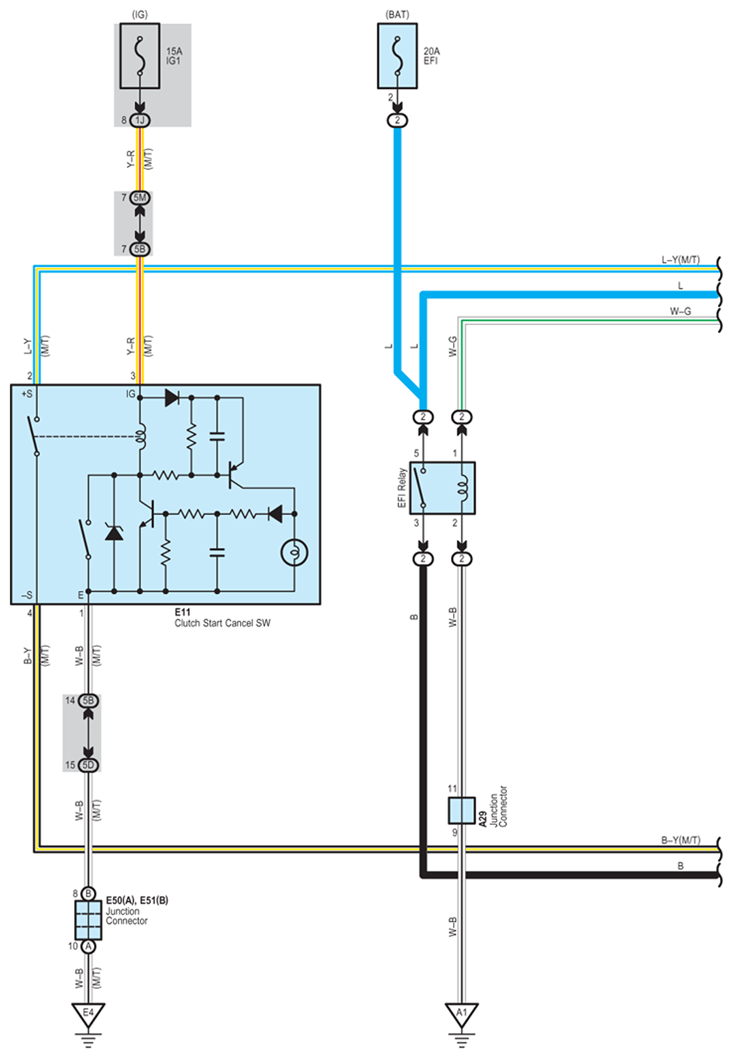

Fig 1: Cruise Control - Circuit Diagram (1 Of 6)
G07595133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

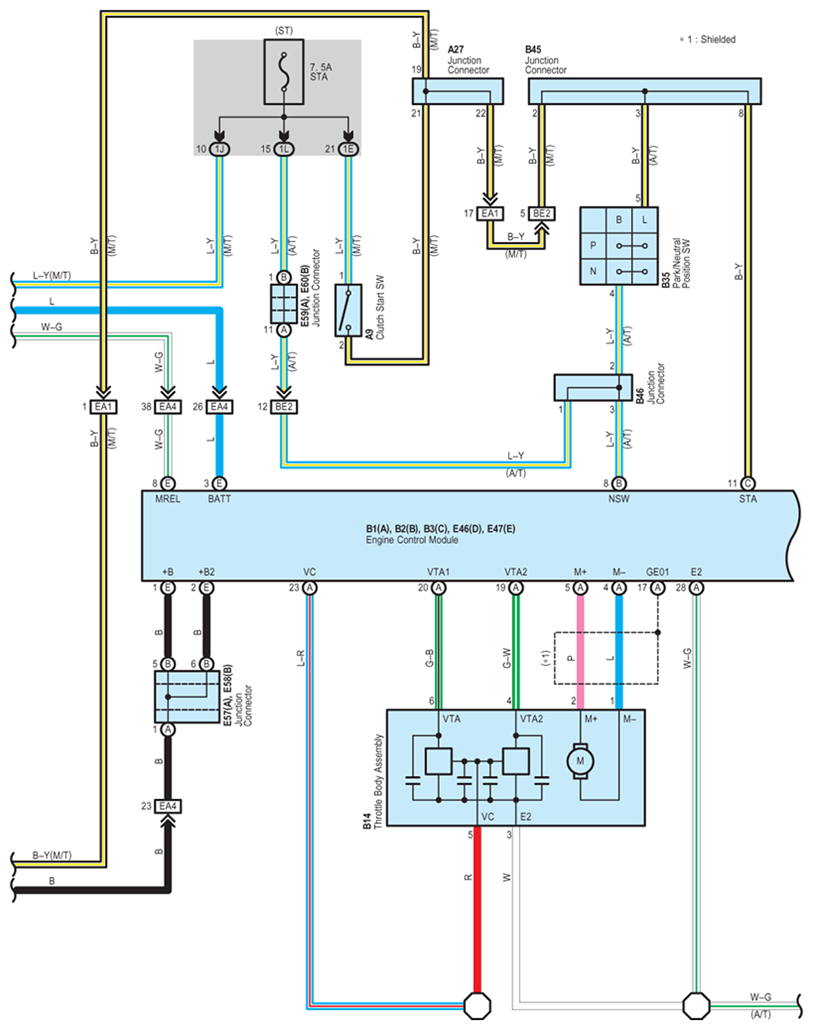

Fig 2: Cruise Control - Circuit Diagram (2 Of 6)
G07595134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

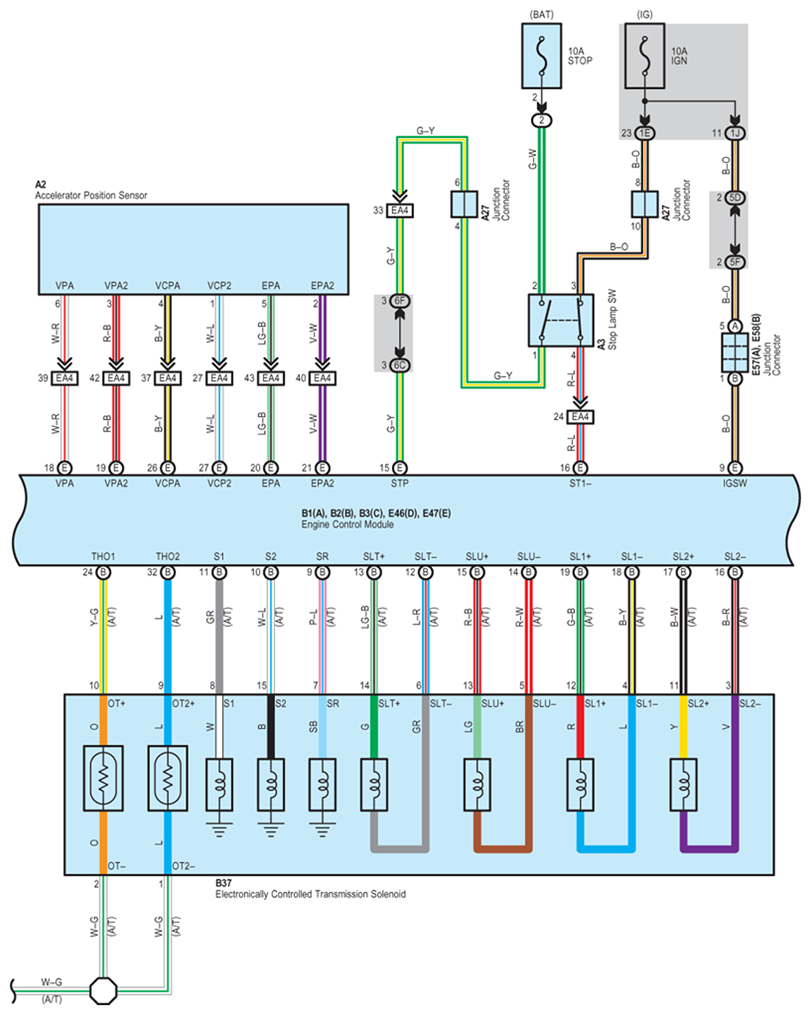

Fig 3: Cruise Control - Circuit Diagram (3 Of 6)
G07595135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

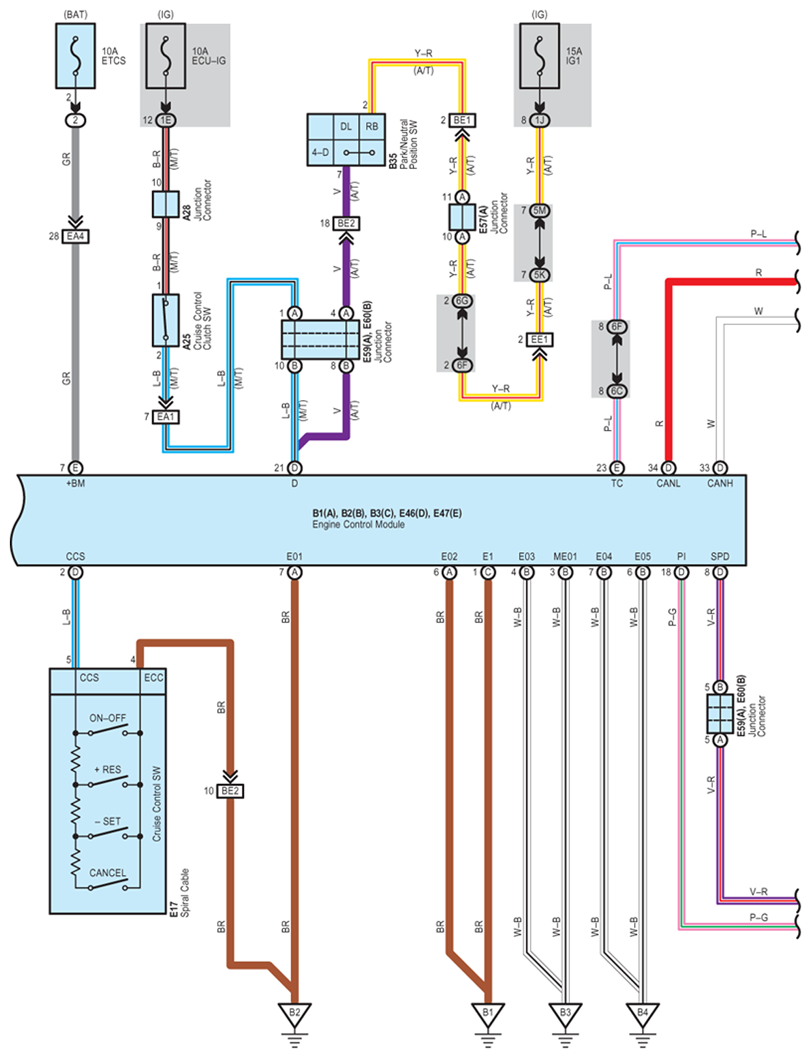

Fig 4: Cruise Control - Circuit Diagram (4 Of 6)
G07595136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

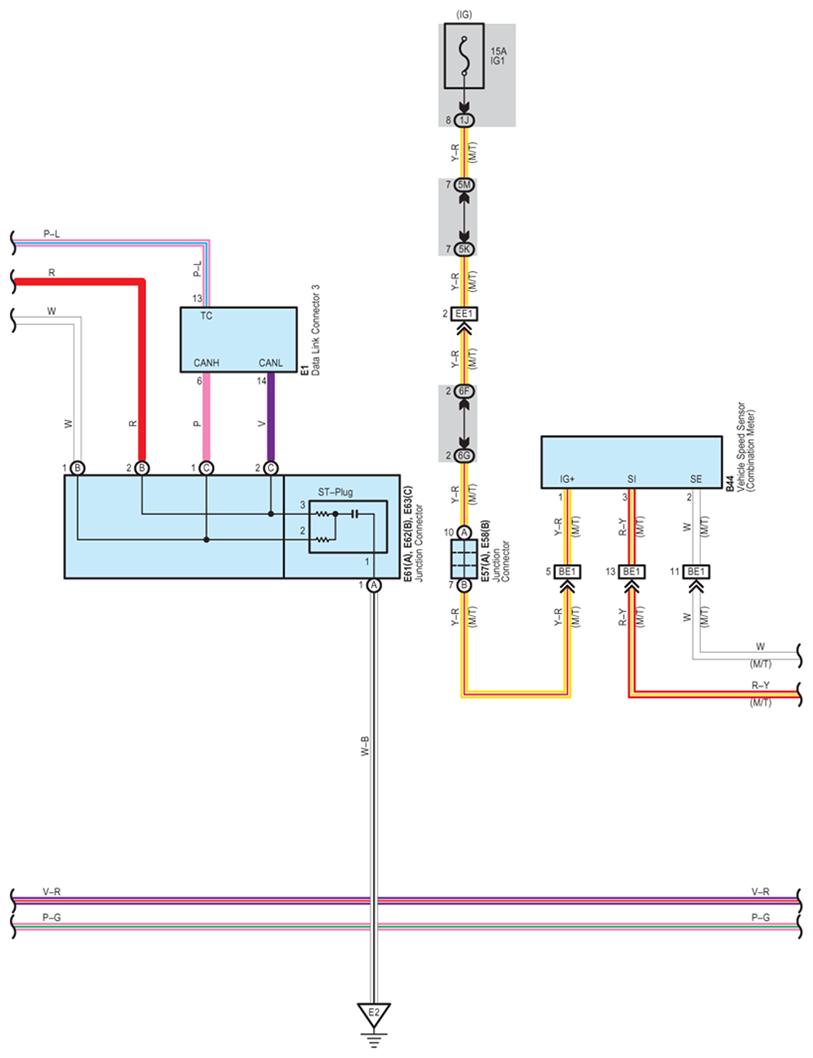

Fig 5: Cruise Control - Circuit Diagram (5 Of 6)
G07595137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

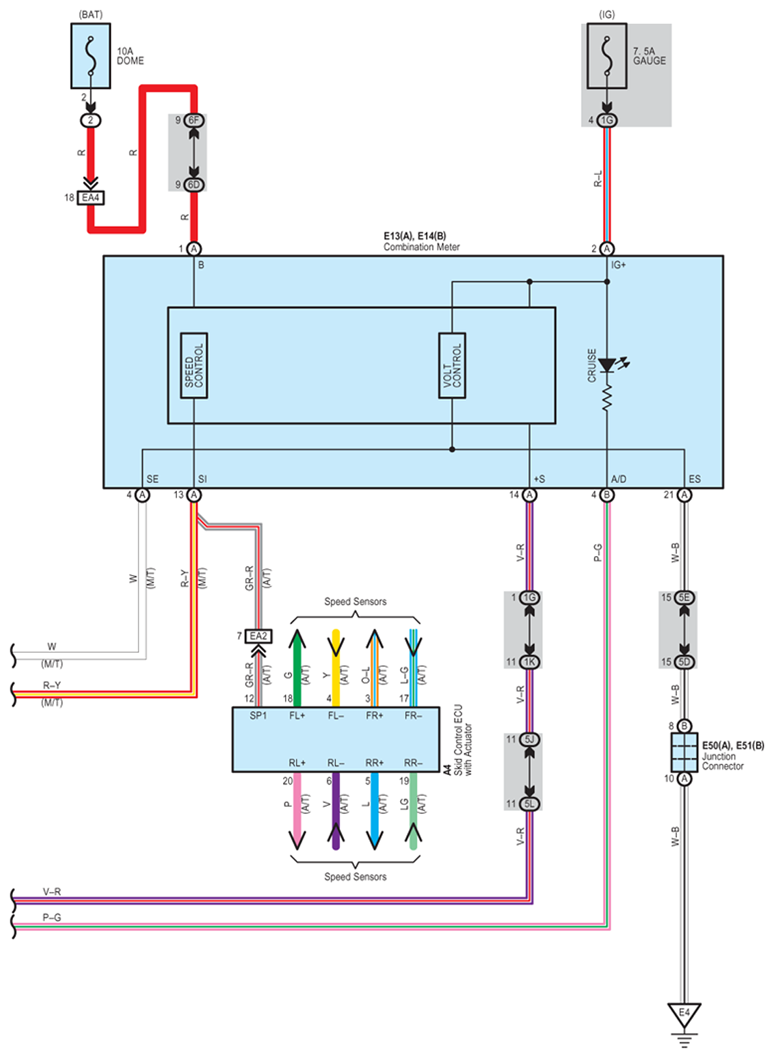

Fig 6: Cruise Control - Circuit Diagram (6 Of 6)
G07595138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
