Skid Control Buzzer: Components

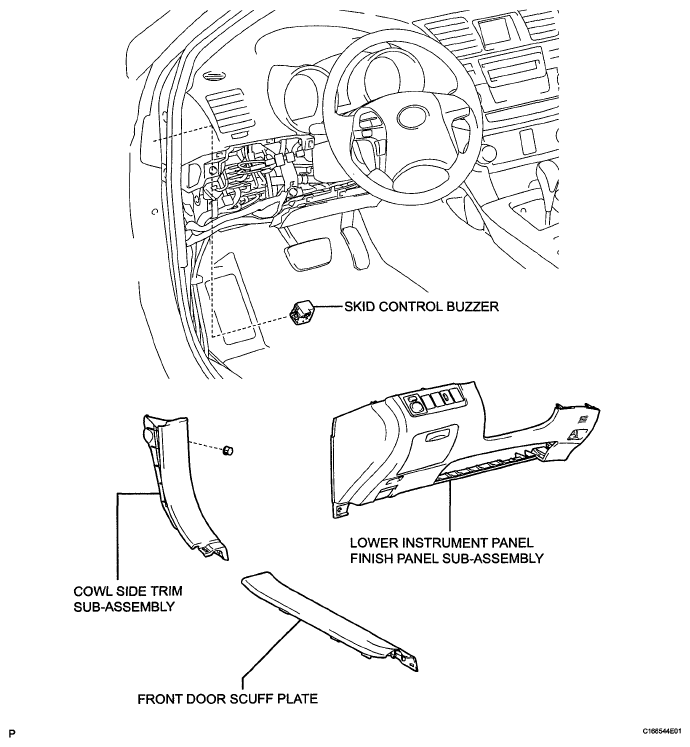

Fig 1: Identifying Skid Control Buzzer Components
G05417860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
