Yaw Rate And Acceleration Sensor: Components

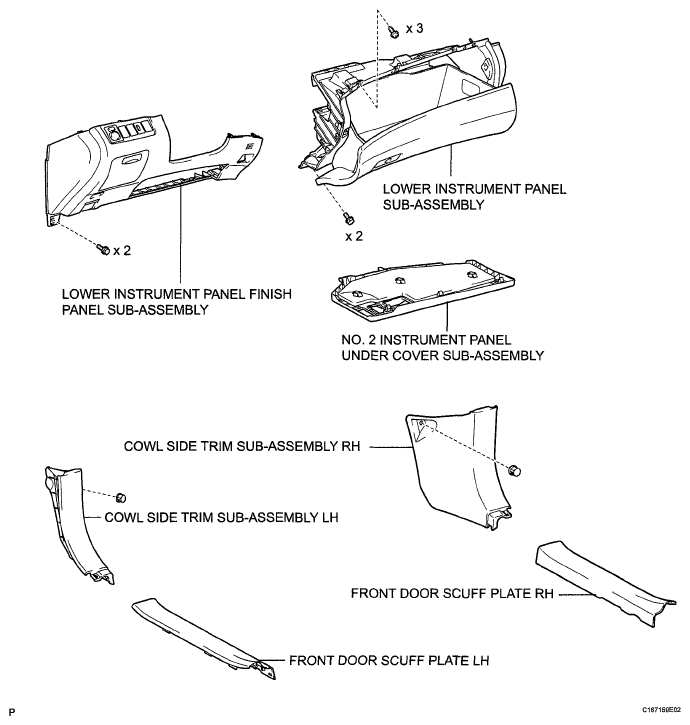

Fig 1: Identifying Yaw Rate & Acceleration Sensor Replacement Components (1 Of 4)
G05417849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

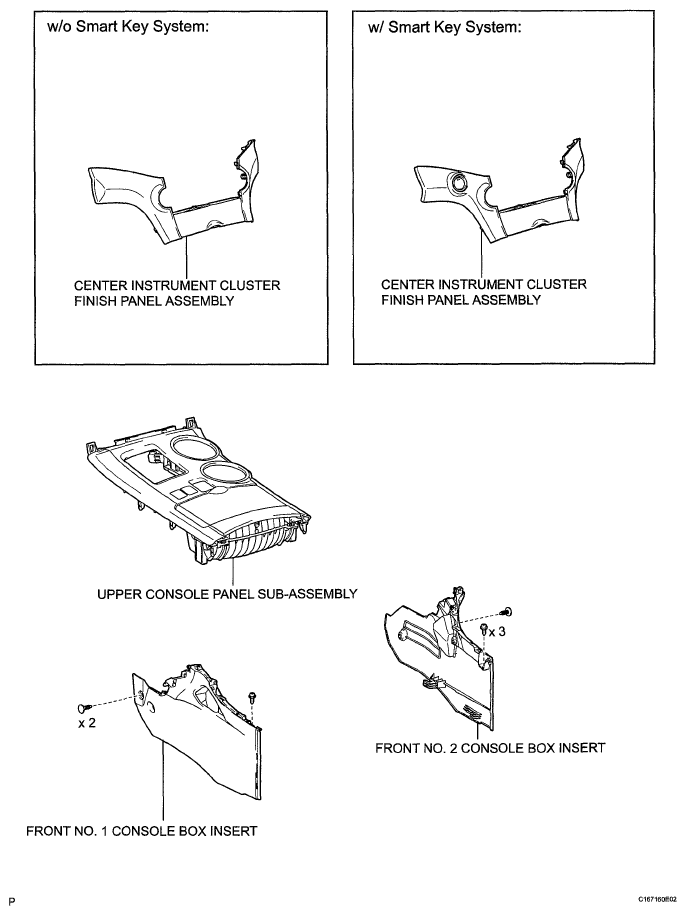

Fig 2: Identifying Yaw Rate & Acceleration Sensor Replacement Components (2 Of 4)
G05417850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

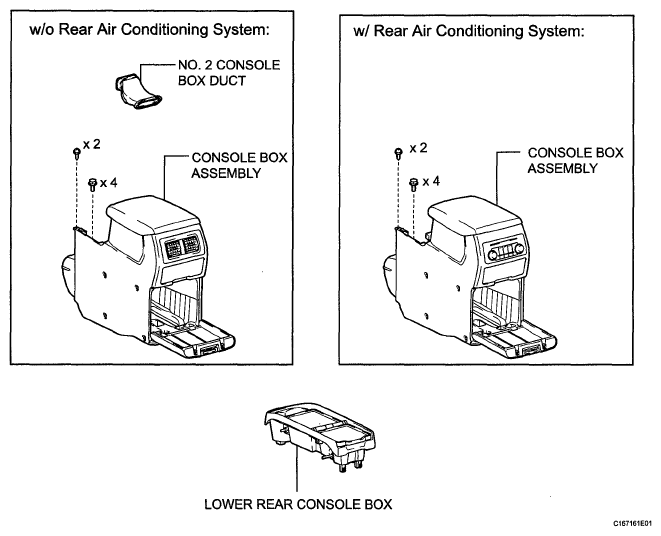

Fig 3: Identifying Yaw Rate & Acceleration Sensor Replacement Components (3 Of 4)
G05417851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

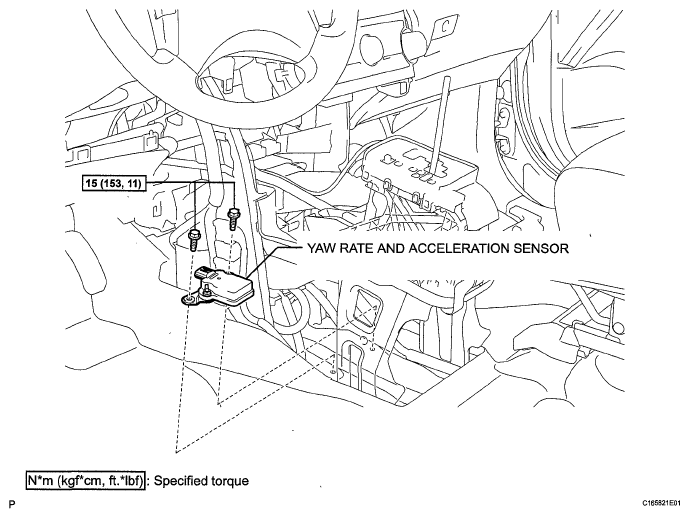

Fig 4: Identifying Yaw Rate & Acceleration Sensor Replacement Components With Torque Specification (4 Of 4)
G05417852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
