Engine Coolant Temperature Sensor: Components
WARNING:
This page is about a different variant/trim than selected.

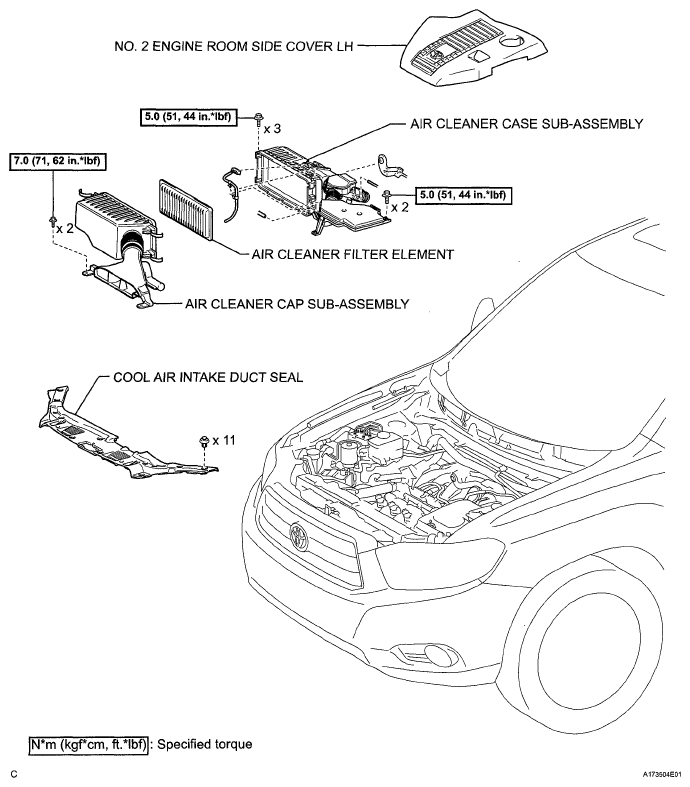

Fig 1: Throttle Body Replacement Components Replacement With Torque Specifications (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Throttle Body Replacement Components Replacement With Torque Specifications (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

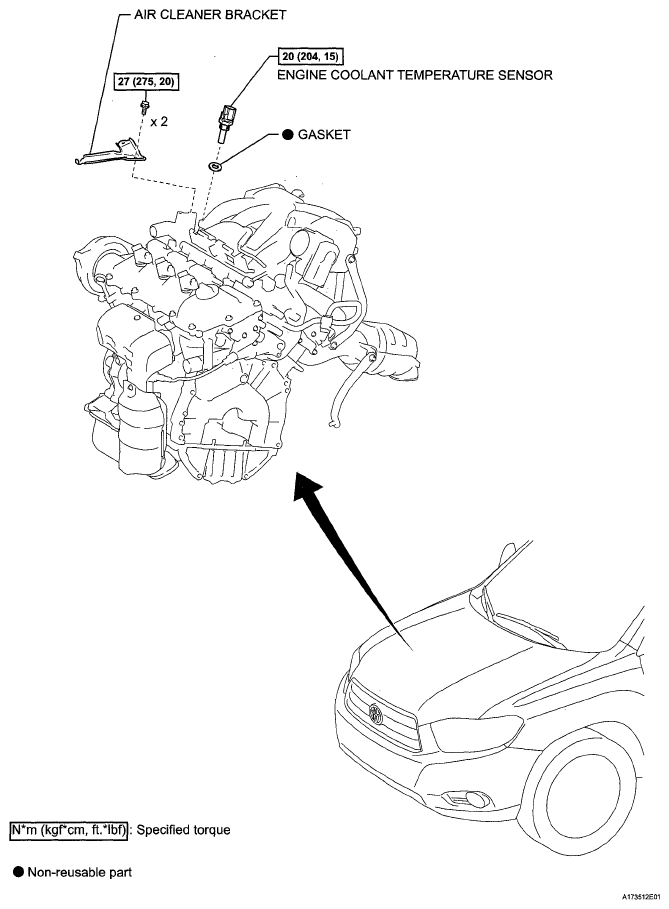

Fig 3: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
