VVT Sensor: Components

WARNING: This page is about a different variant/trim than selected.

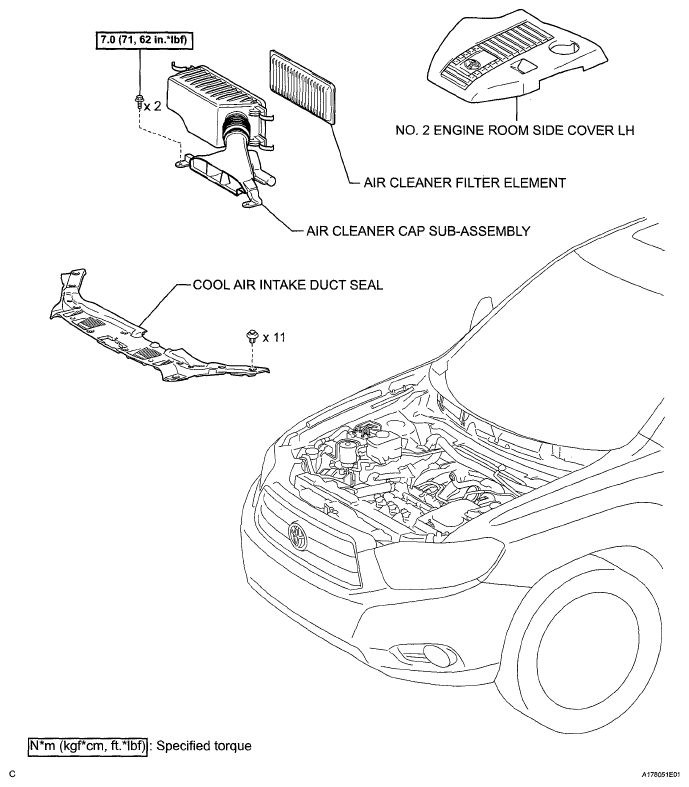

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specification (1 Of 2)
G05625727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

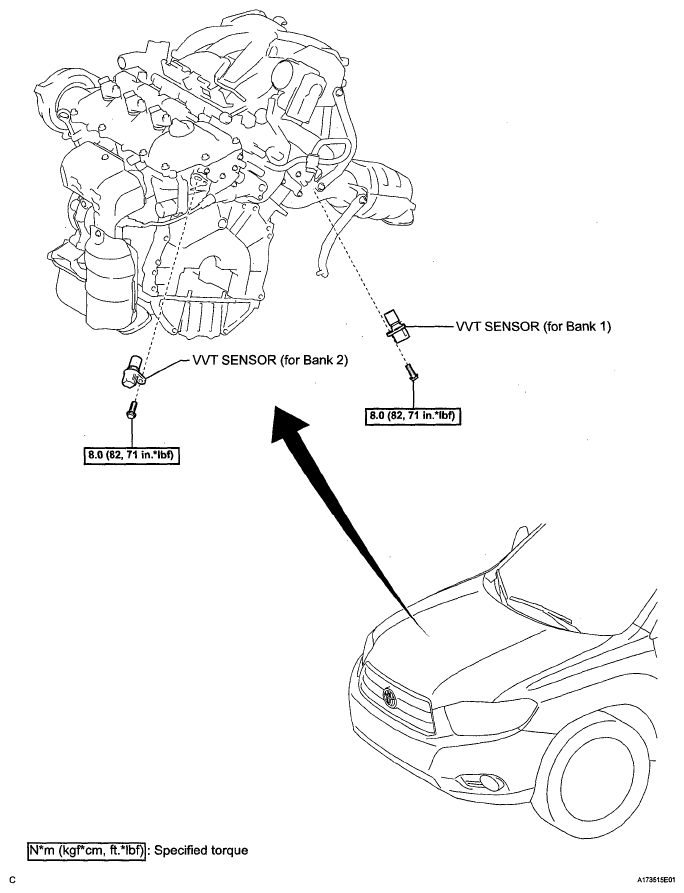

Fig 2: VVT Sensor Replacement Components With Torque Specifications (2 Of 2)
G05625728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
