Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

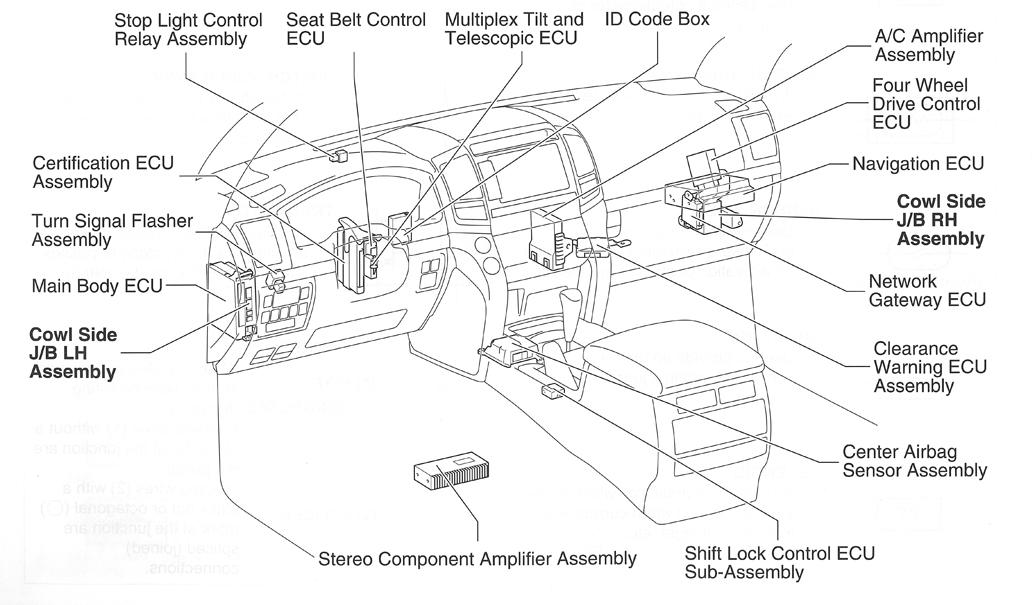

Cowl Side J/B RH Right kick panel. See Figure.

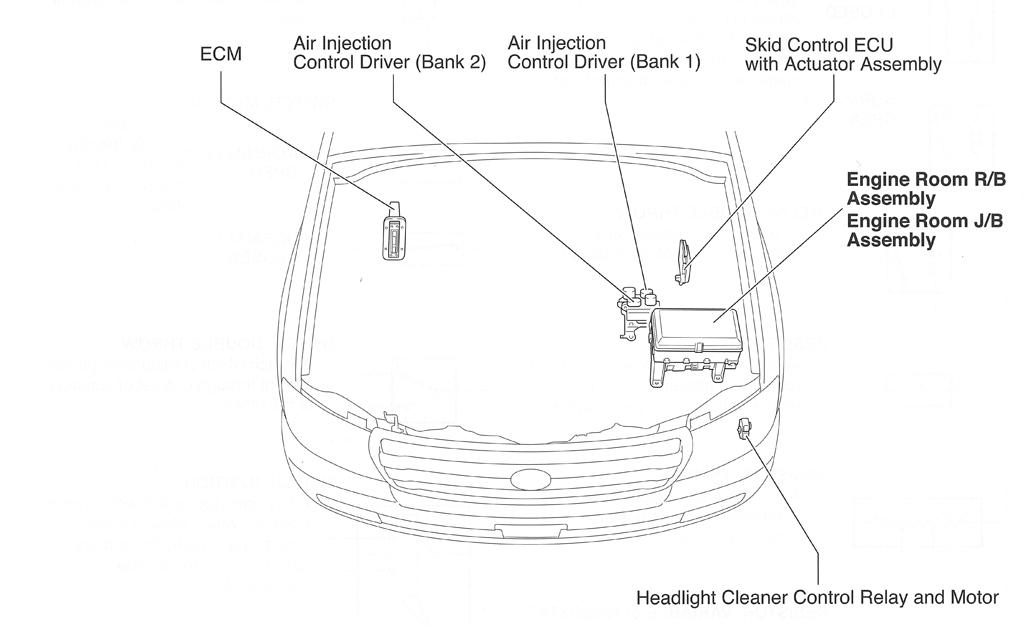

Engine Room J/B On left inner fender panel. See Figure.
