Rear Axle Hub Bolt: Components

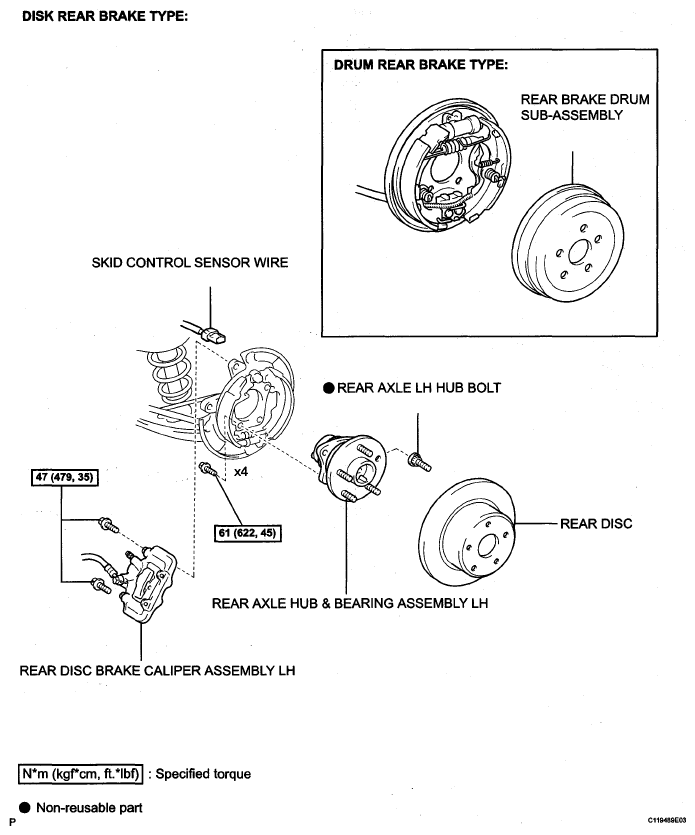

Fig 1: Rear Axle Hub Bolt Replacement Components With Torque Specifications
G05234951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
