Removal

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH:

REMOVAL

1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. INSPECT PLACE FRONT WHEELS FACING STRAIGHT AHEAD
3. REMOVE HORN BUTTON ASSEMBLY (Removal)

4. REMOVE STEERING WHEEL ASSEMBLY

HINT: (Removal)

SST: 09950-50013
09951-05010
09952-05010
09953-05020
09954-05021
5. REMOVE CRUISE CONTROL MAIN SWITCH ASSEMBLY

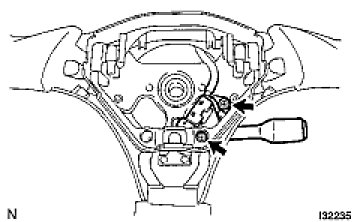

(a) Remove the 2 screws and cruise control main switch assembly.
