Emission Control Systems: Locations








1ZZ-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM:

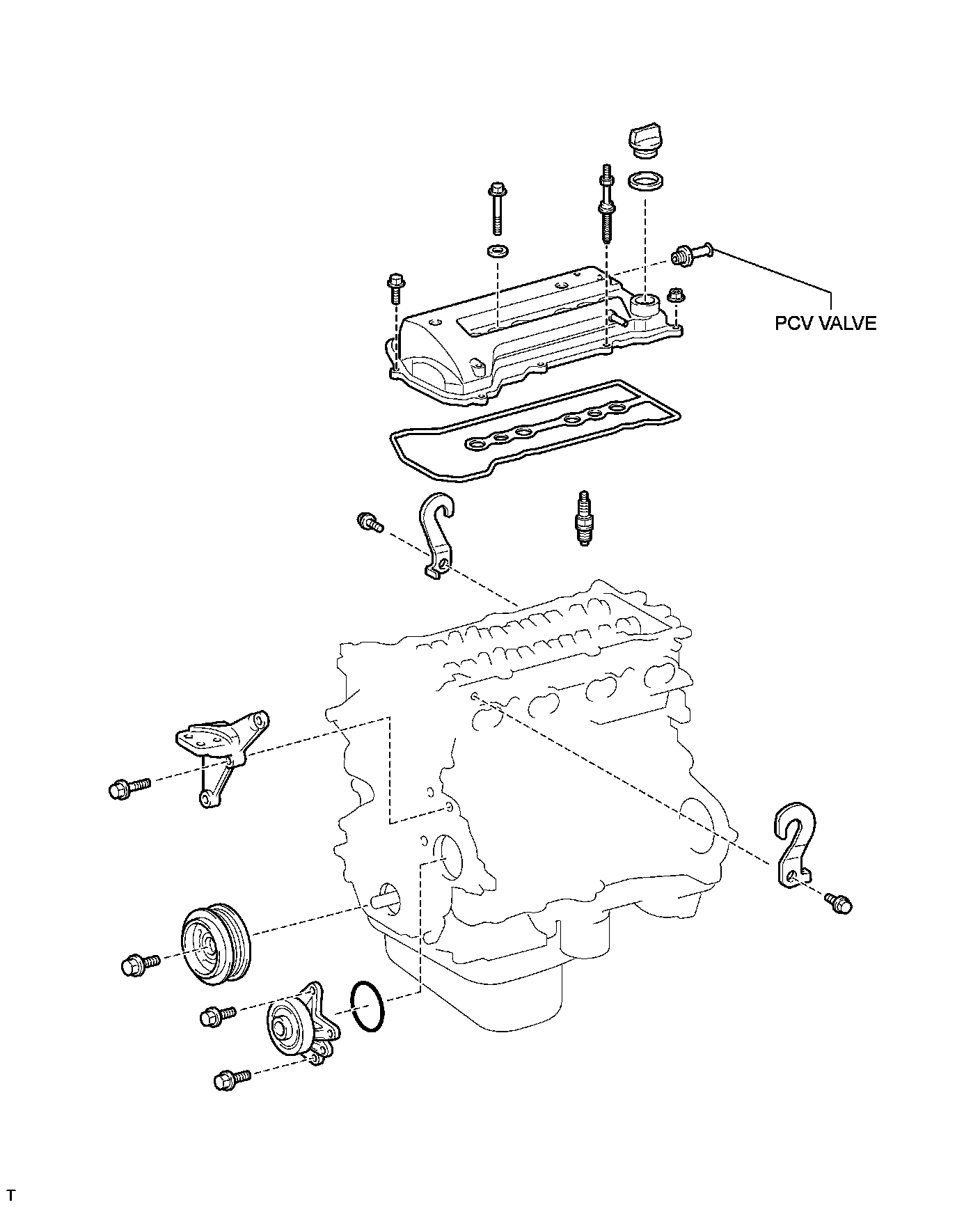

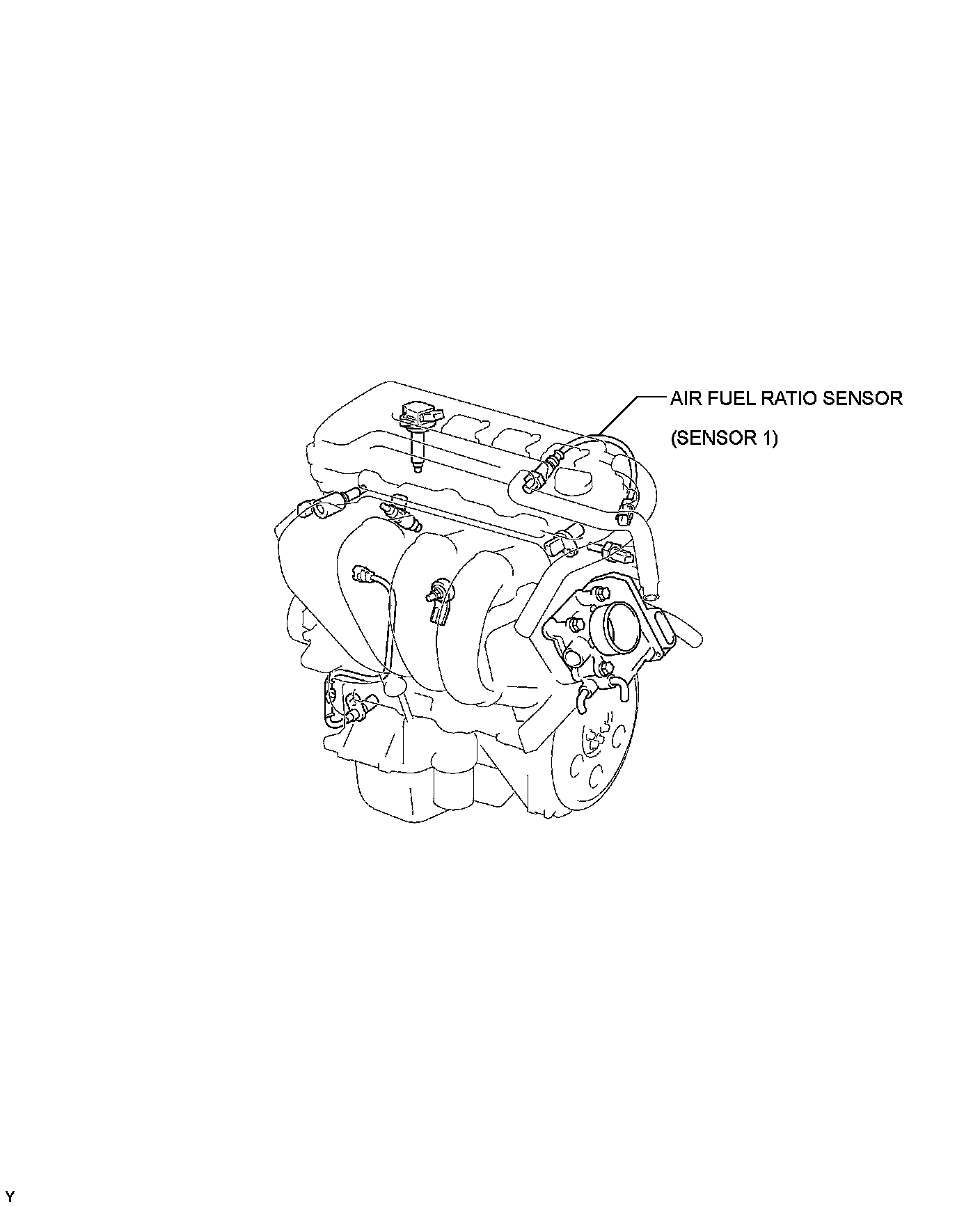

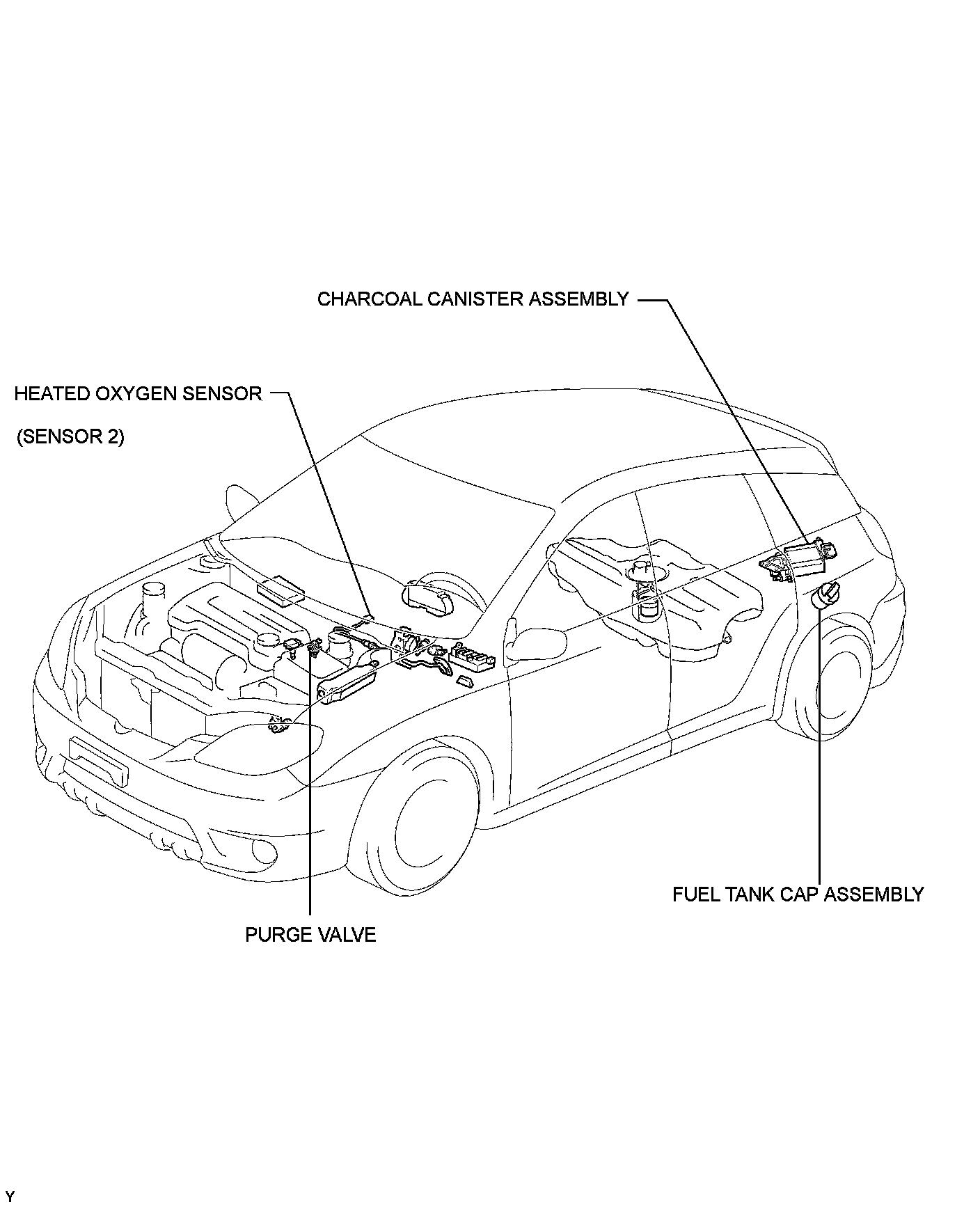

PARTS LOCATION
