Turn Signal and Hazard Warning Light System: Notes

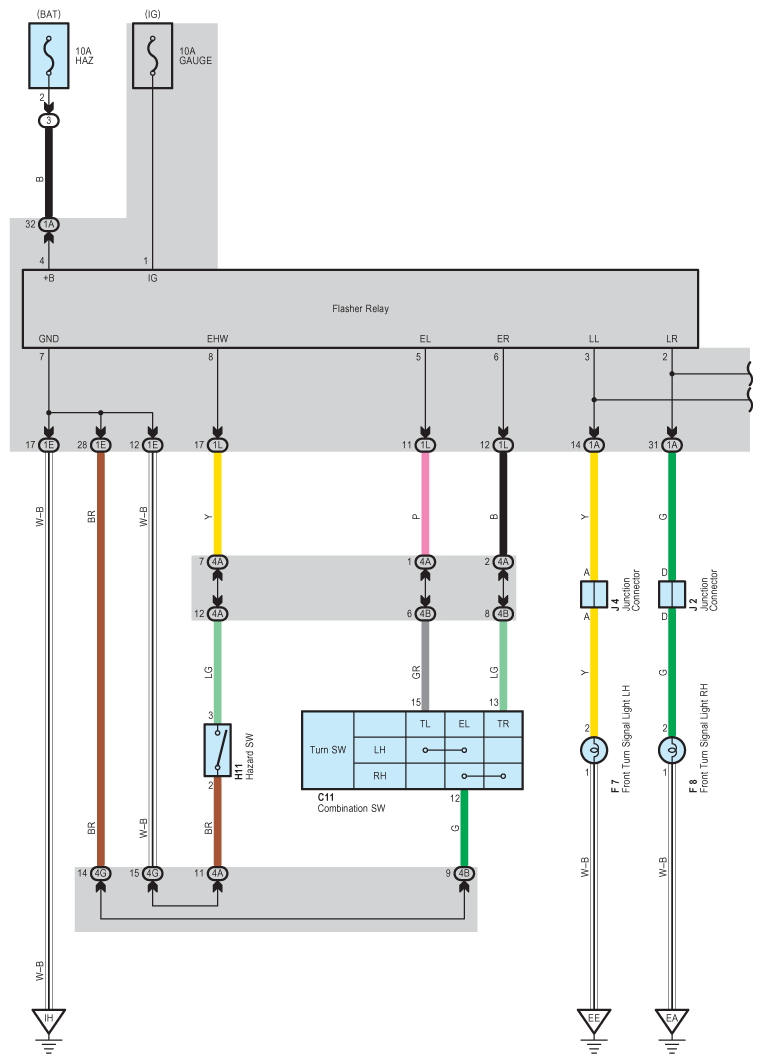

Fig 1: Turn Signal And Hazard Warning Light - Circuit Diagram (1 Of 2)
G07577013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

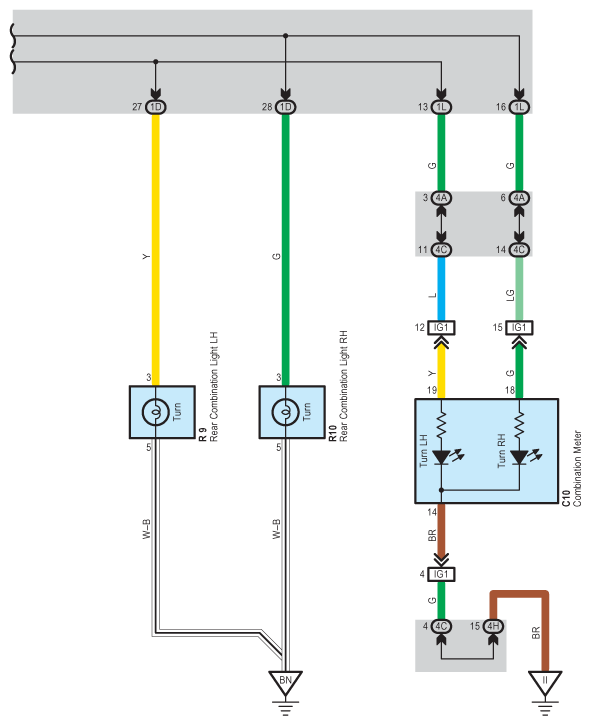

Fig 2: Turn Signal And Hazard Warning Light - Circuit Diagram (2 Of 2)
G07577014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
