Parts Location

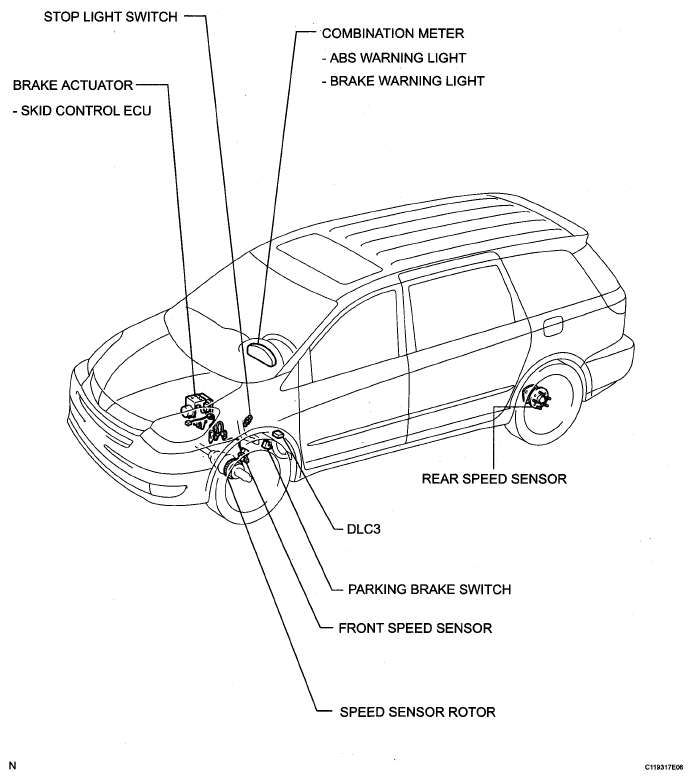

Fig 1: Identifying Anti-Lock Brake System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
