Intake Air Control Valve: Components

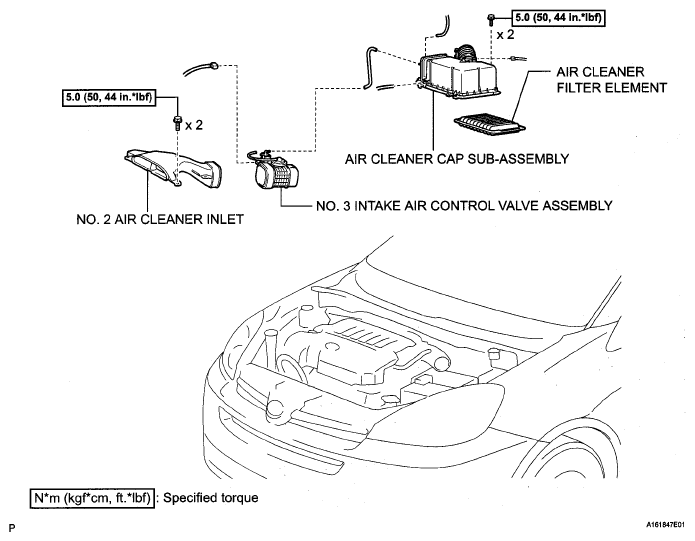

Fig 1: Intake Air Control Valve Replacement Components With Torque Specifications
G05139919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
