Parts Location

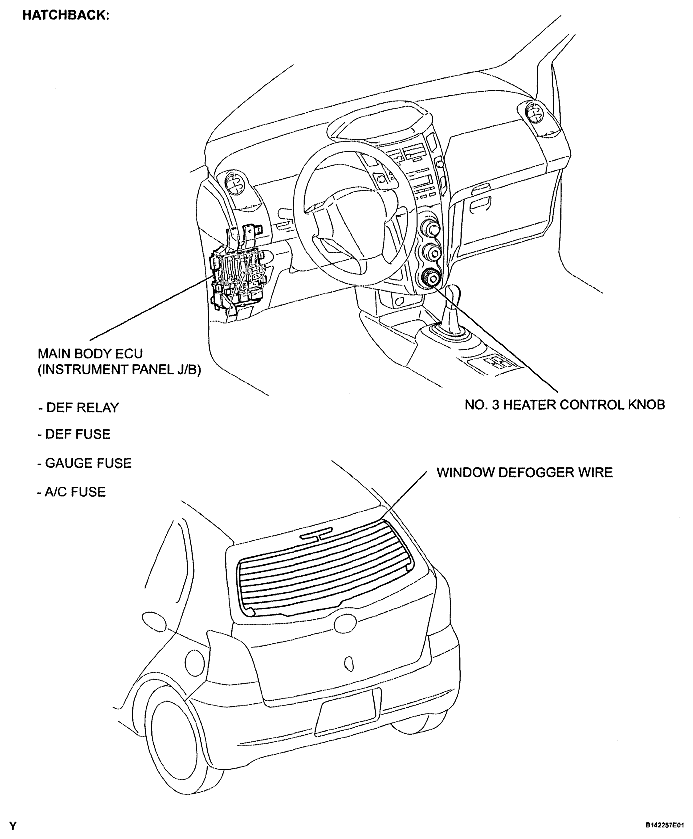

Fig 1: Identifying Window Defogger System Components Location (Hatchback)
G04833933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

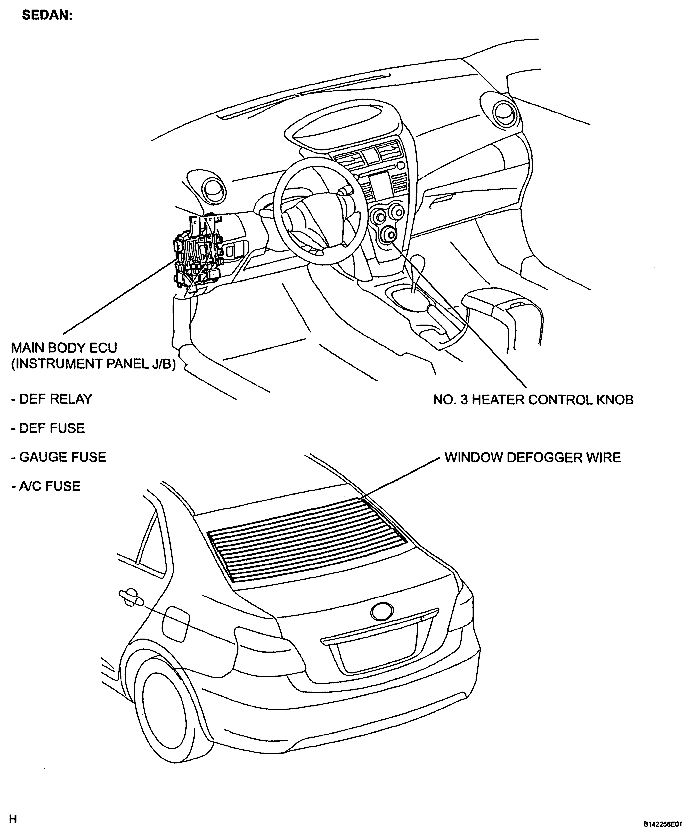

Fig 2: Identifying Window Defogger System Components Location (Sedan)
G04833934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
