Brake Actuator: Components

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (1 Of 2)
G04832225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

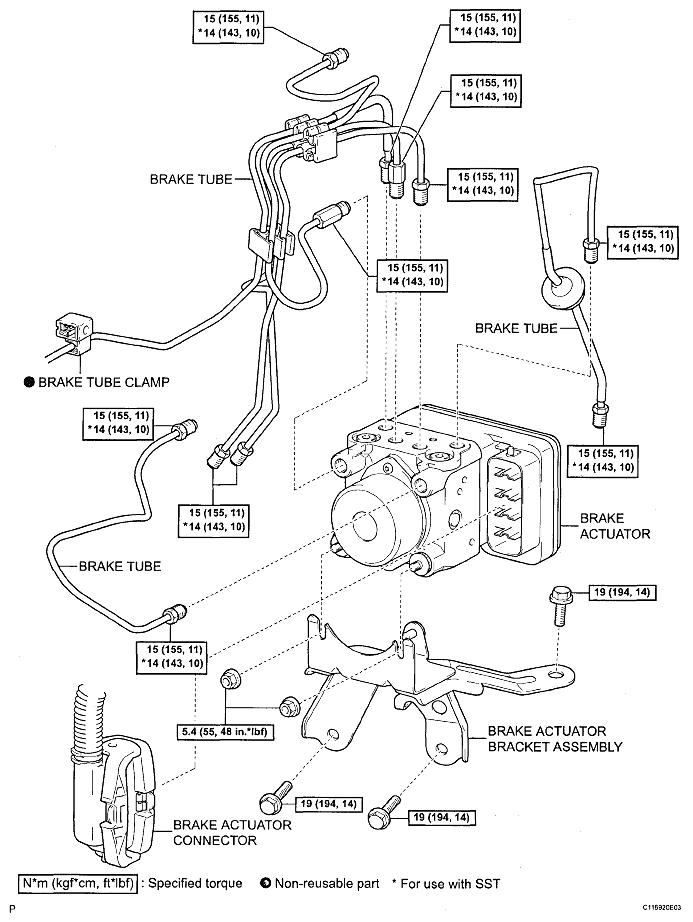

Fig 2: Identifying Brake Actuator Replacement Components With Torque Specifications (2 Of 2)
G04832226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
