ABS System: Notes

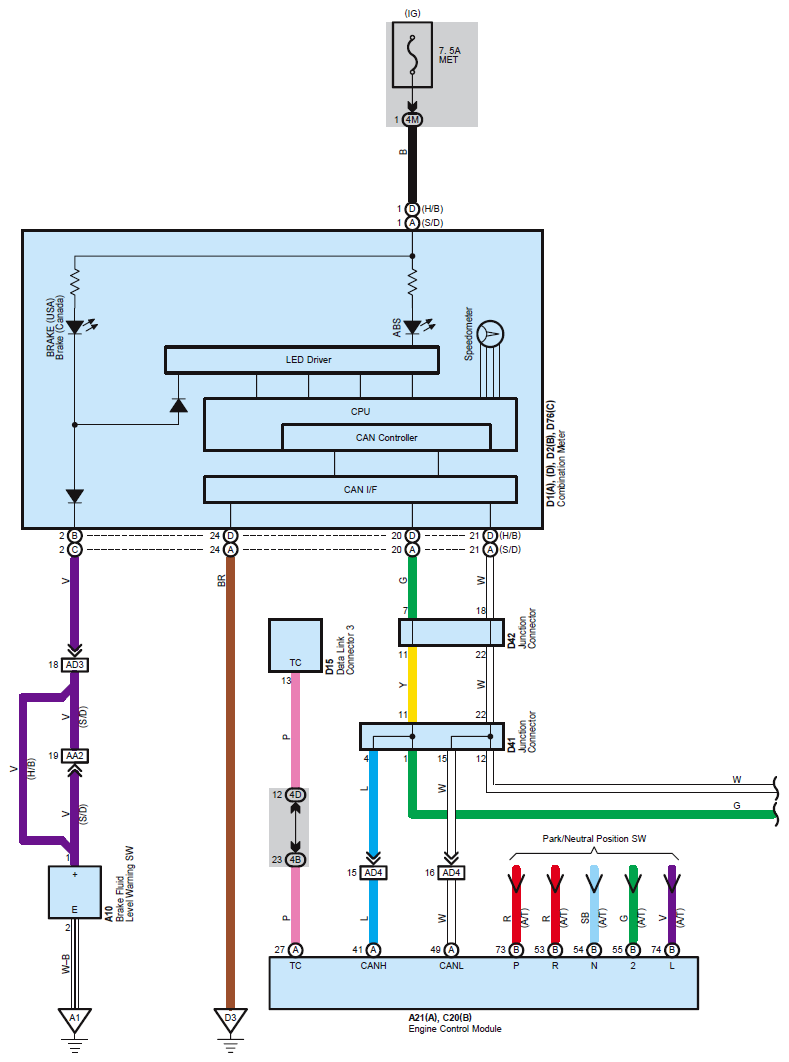

Fig 1: ABS - Circuit Diagram (1 Of 2)
G07604331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

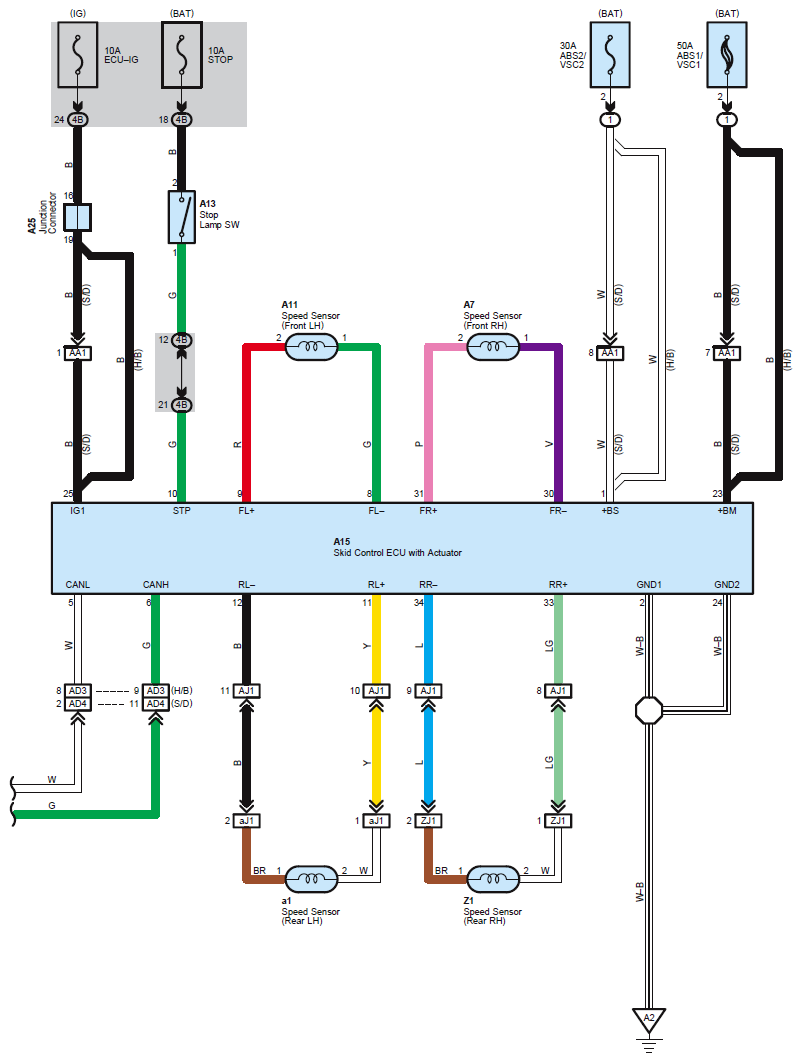

Fig 2: ABS - Circuit Diagram (2 Of 2)
G07604332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
