Parts Location

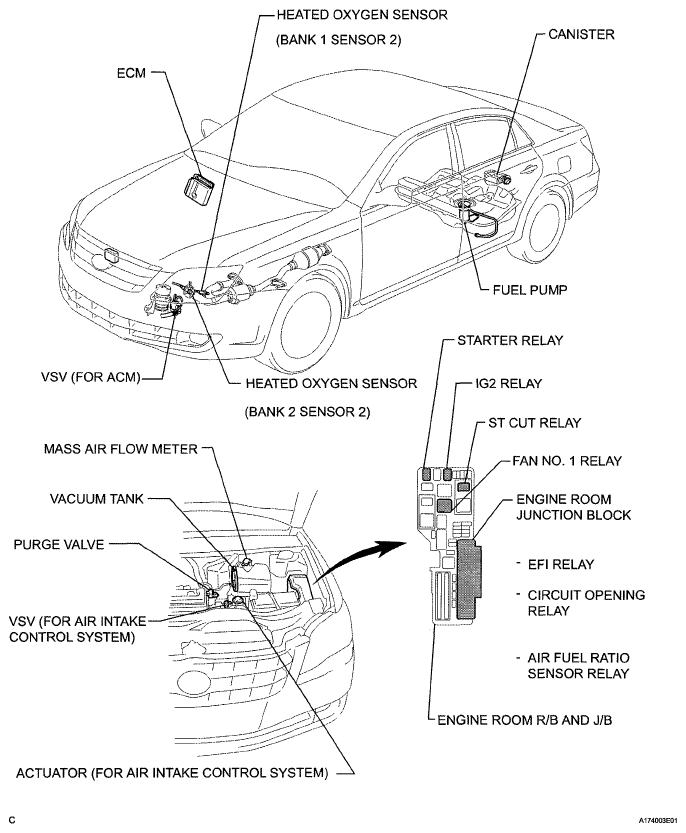

Fig 1: Identifying Engine Control System (2GR-FE) Parts Location (1 Of 4)
G05404408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

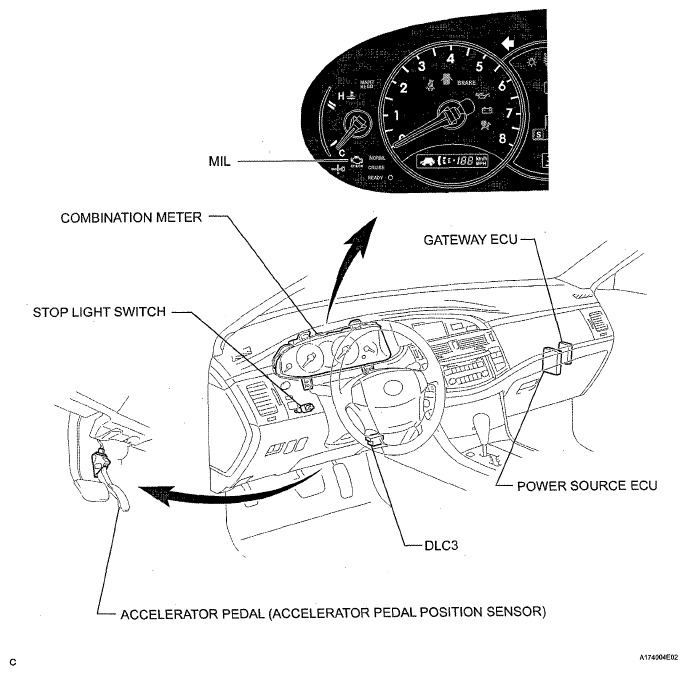

Fig 2: Identifying Engine Control System (2GR-FE) Parts Location (2 Of 4)
G05404409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

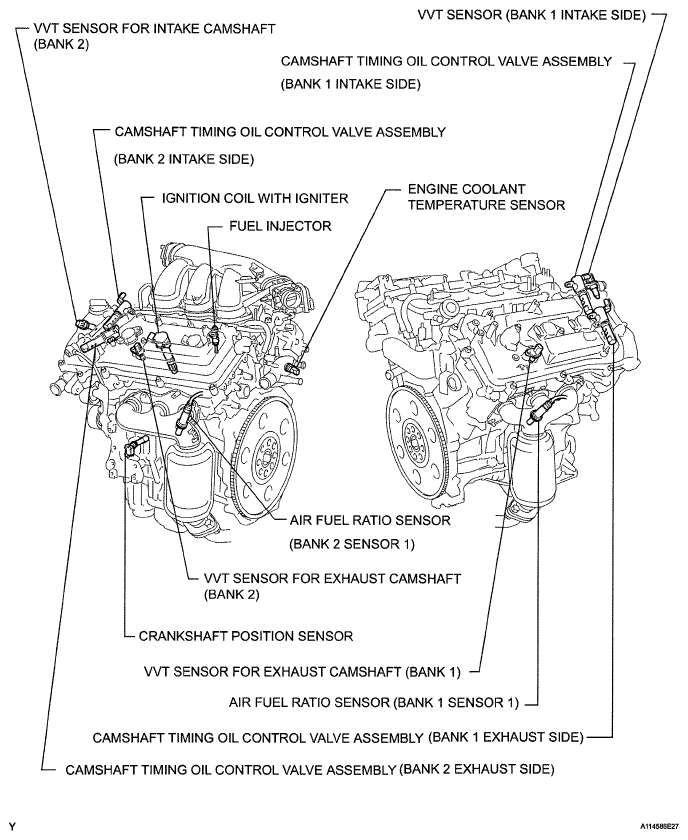

Fig 3: Identifying Engine Control System (2GR-FE) Parts Location (3 Of 4)
G05404410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

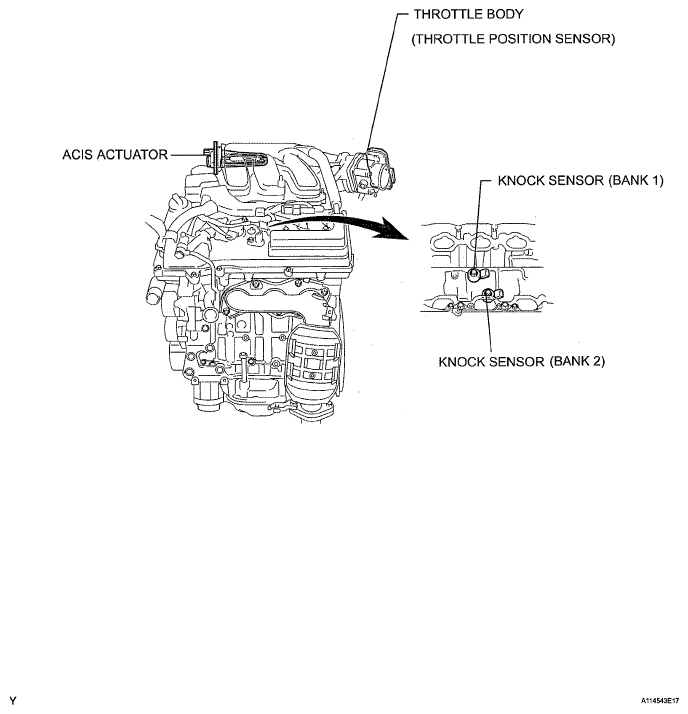

Fig 4: Identifying Engine Control System (2GR-FE) Parts Location (4 Of 4)
G05404411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
