Rear Strut Rod: Components

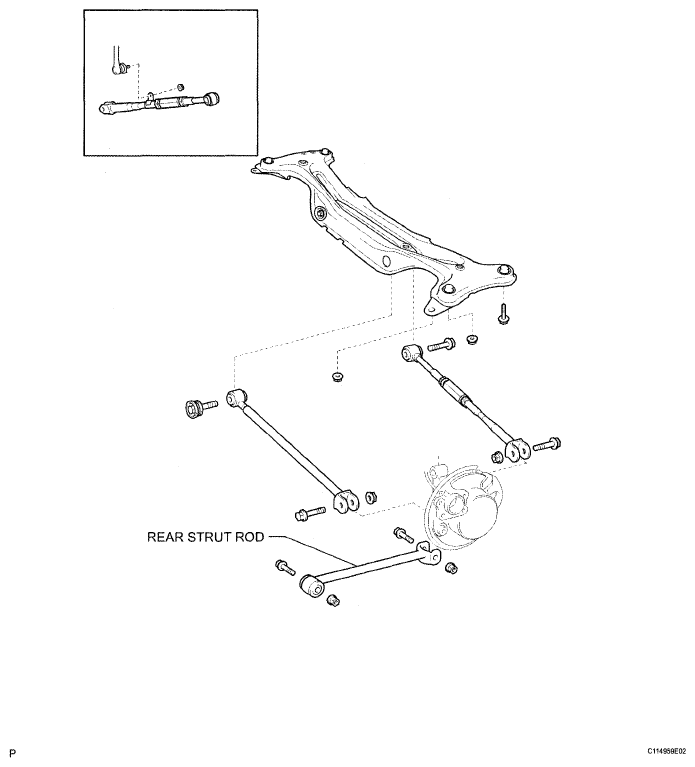

Fig 1: Identifying Rear Strut Rod Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
