Laser Sensor: Components

WARNING: This page is about a different car, the 2008 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

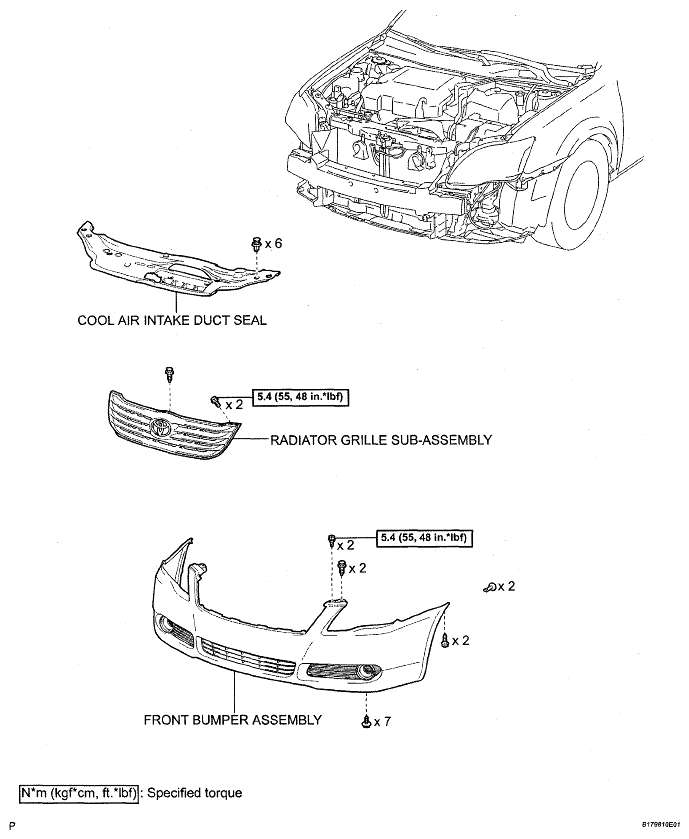

Fig 1: Laser Sensor Replacement Components With Torque Specifications (1 Of 2)
G05407361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

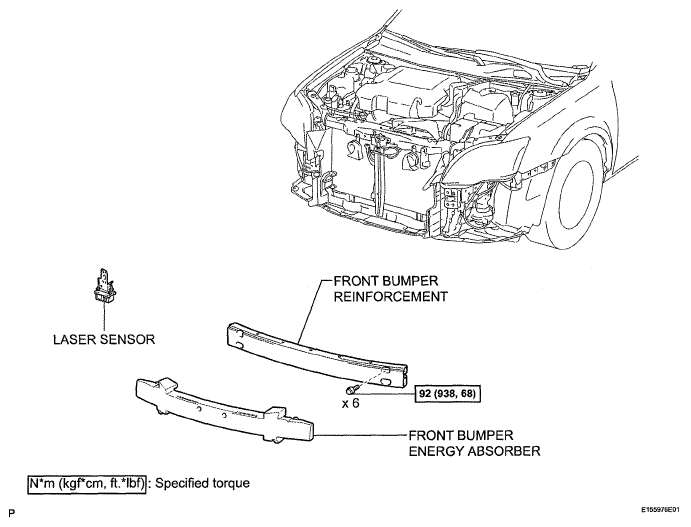

Fig 2: Laser Sensor Replacement Components With Torque Specifications (2 Of 2)
G05407362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
