Inspection Procedure

WARNING: This page is about a different car, the 2008 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT RADIO RECEIVER

Disconnect the radio receiver connectors.

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
ATX+ (E12-5) - ATX- (E12-15)	Always	60 to 80 Ω
TX+ (E15-9) - TX- (E15-10)	Always	60 to 80 Ω

NG: REPLACE RADIO RECEIVER

Fig 1: Identifying E12 And E15 Connector Terminals

OK: Go to Next Step

CHECK HARNESS AND CONNECTOR
HINT:

For details of the connectors, refer to "TERMINALS OF ECU " .
1. Referring to the AVC-LAN wiring diagram below, check all AVC-LAN circuits.
  1. Check for an open or short in all AVC-LAN circuits.
    OK: There are no open or short circuits.

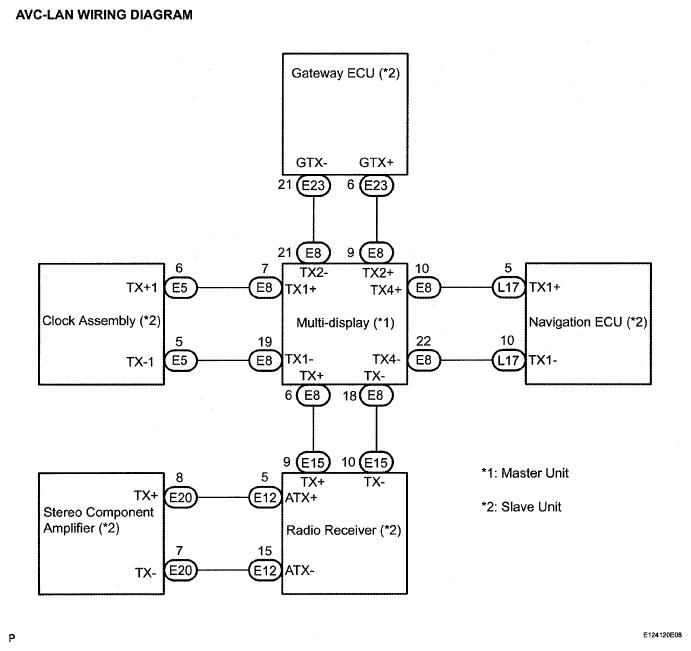

    Fig 2: AVC-LAN Wiring Diagram
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
