Inspection Procedure

1. Check if the component shown by the sub-code is displayed in the check result of the other components.
   1. Check if "01 -DC" is output for the other components.
   2. If "01 -DC" is output for any other components, check if the same physical address is displayed.

      HINT:

      For the list of the components shown by sub-codes, refer to the table in step 2.

      Result

      RESULT CHART



      Result	Proceed to
      "01 - DC" is output and the same physical address is displayed	A
      "01 - DC" is not output or the same physical address is not displayed	B

B:  Go to step  4

A: Go to Next Step

1. Enter the diagnostic mode.
2. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
3. Identify the component which has stored this code.

   Component Table:

   COMPONENT CHART



   Display	Component
   AUDIO H/U (190)	Radio receiver
   DSP-AMP (440)	Stereo component amplifier
   G/W (1C6)	Gateway ECU
   NAVI (178)	Navigation ECU
   EMV (110)	Multi-display
   CLOCK (1D6)	Clock assembly
   BT-HF(19D)	"Bluetooth" handsfree module

   HINT:

   "NAVI" is the component which has stored this code in the example shown in the illustration.

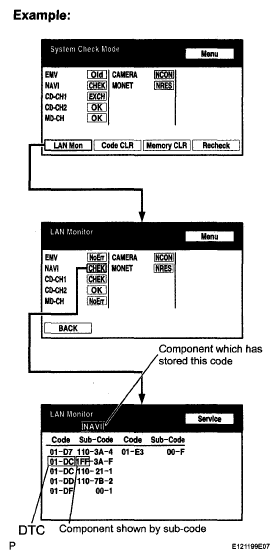

   Fig 1: Screen Display - LAN Monitor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Select the component which has stored this code.

   Component Table:

   COMPONENT CHART



   Component	Proceed to
   Gateway ECU (G/W)	Gateway ECU communication error (See GATEWAY ECU COMMUNICATION ERROR  )
   Radio receiver (AUDIO H/U)	Radio receiver communication error (See RADIO RECEIVER COMMUNICATION ERROR  )
   Stereo component amplifier (DSP-AMP)	Stereo component amplifier communication error (See STEREO COMPONENT AMPLIFIER COMMUNICATION ERROR  )
   Navigation ECU (NAVI)	Navigation ECU communication error (See NAVIGATION ECU COMMUNICATION ERROR  )
   Multi-display (EMV)	Multi-display communication error (See MULTI-DISPLAY COMMUNICATION ERROR  )
   Clock assembly (CLOCK)	Clock communication error (See CLOCK COMMUNICATION ERROR  )
   "Bluetooth" handsfree module (BT-HF)	Bluetooth handsfree module communication error (See BLUETOOTH HANDSFREE MODULE COMMUNICATION ERROR )

NEXT : END

1. Clear the DTCs (See DTC CHECK/CLEAR  ).

   HINT:

   If "01-DC" is output for only one component, this may not indicate a malfunction.

1. Recheck for DTCs and check if the same trouble occurs again.

   OK: Malfunction disappears.

NG:  Go to step  3

OK : END
