Engine Control System (2AZ-FE) (Except Hybrid): ECM: Components

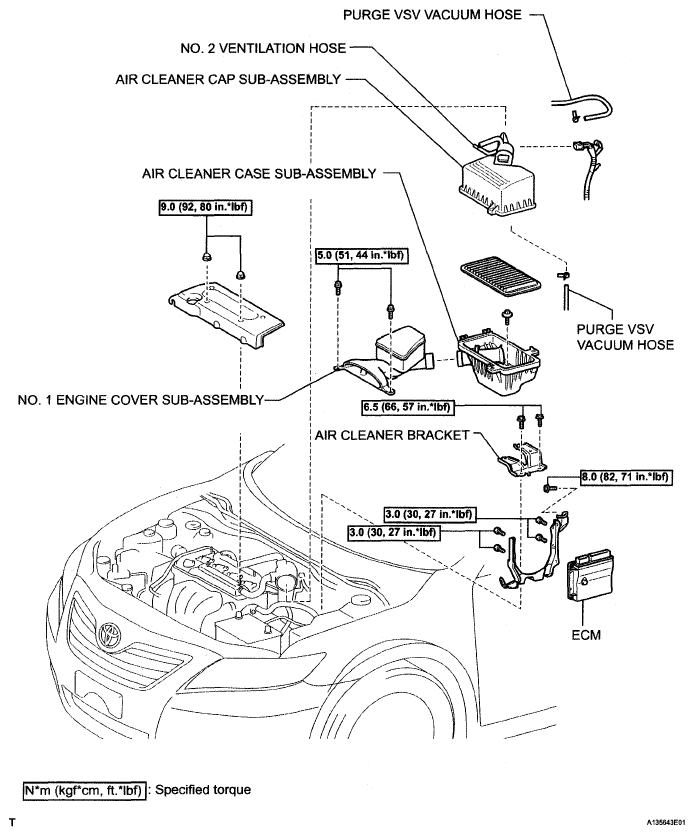

Fig 1: ECM Replacement Components W/Torque Specifications
G04973402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
