Knock Sensor, Intake Manifold: Components

Fig 1: Identifying Knock Sensor Replacement Components And Torque Specifications (1 Of 3)
G04973387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Knock Sensor Replacement Components And Torque Specifications (2 Of 3)
G04973388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

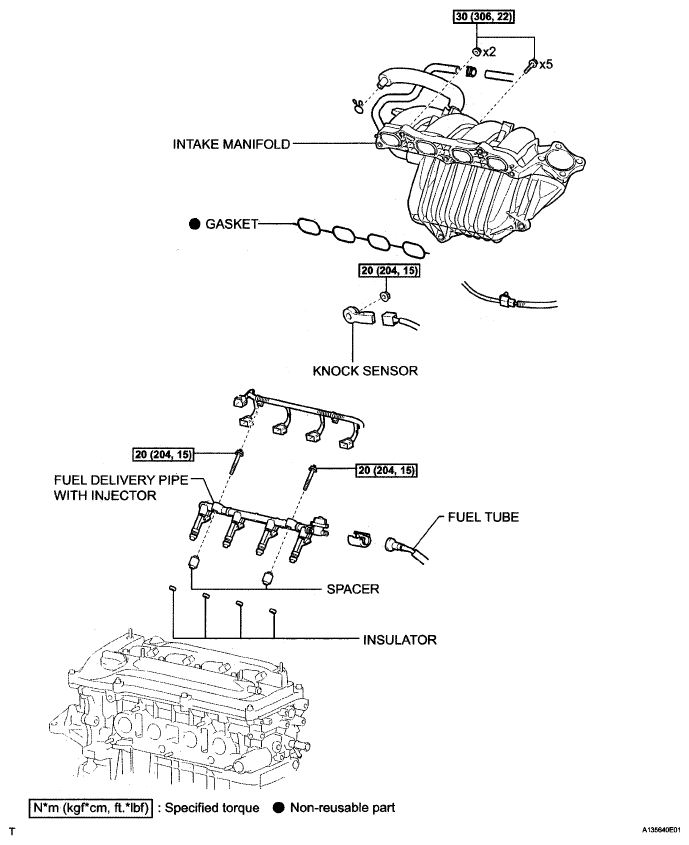

Fig 3: Identifying Knock Sensor Replacement Components And Torque Specifications (3 Of 3)
G04973389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
