Back Window Glass: Components

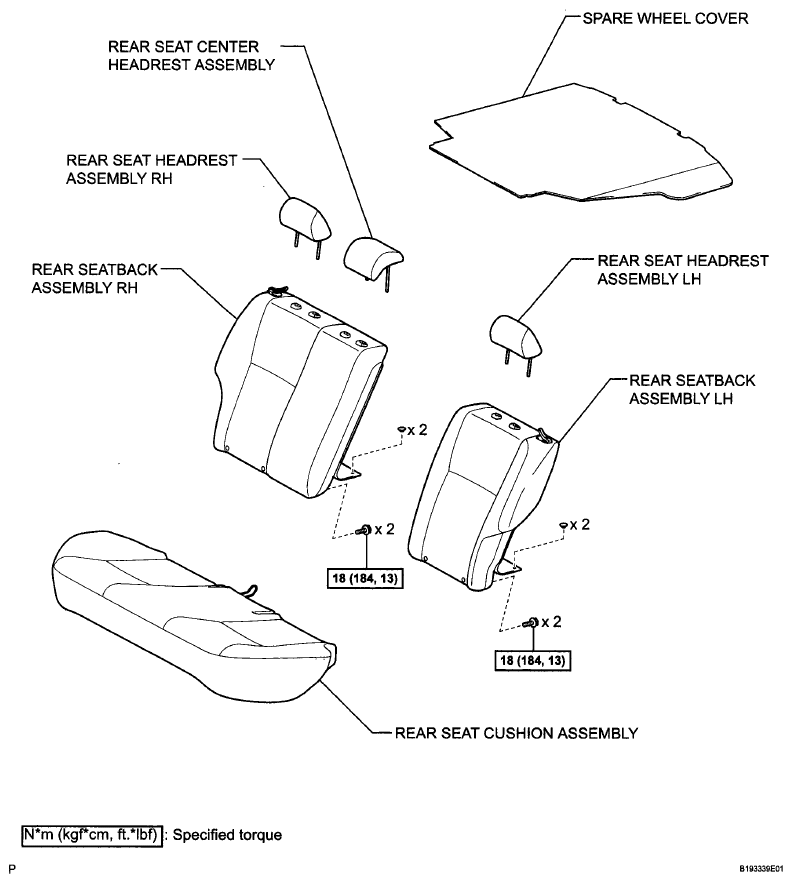

Fig 1: Back Window Glass Replacement Components With Torque Specifications (1 Of 4)
G06015956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

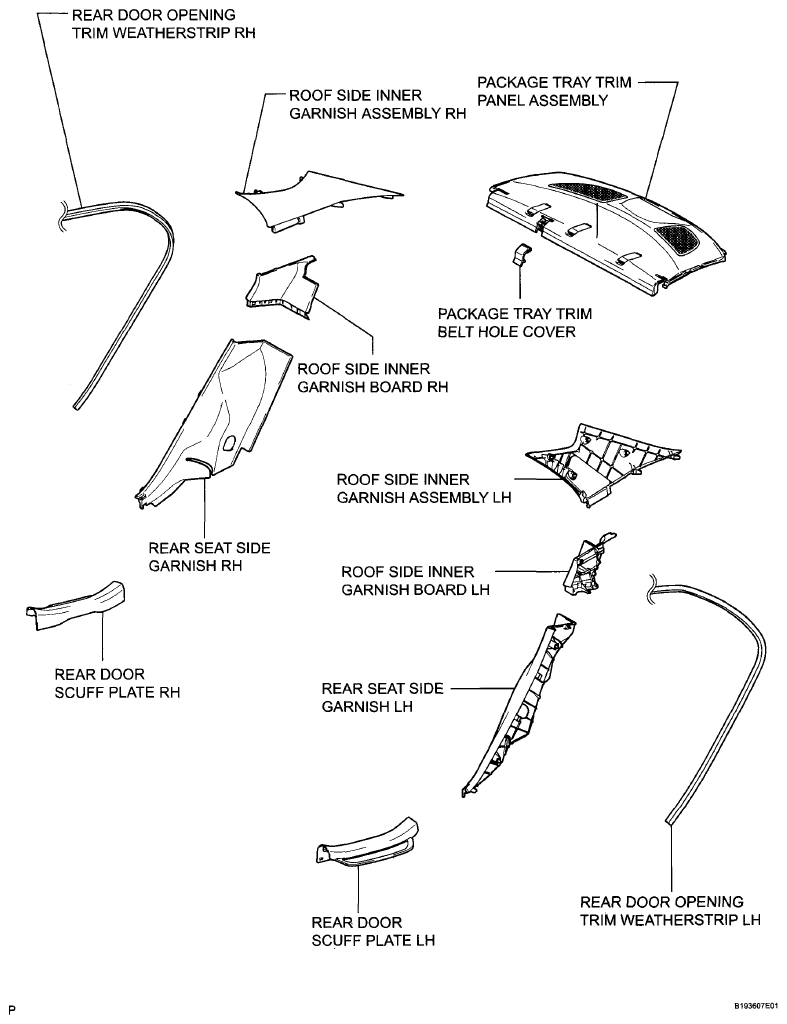

Fig 2: Identifying Back Window Glass Components (2 Of 4)
G06015957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

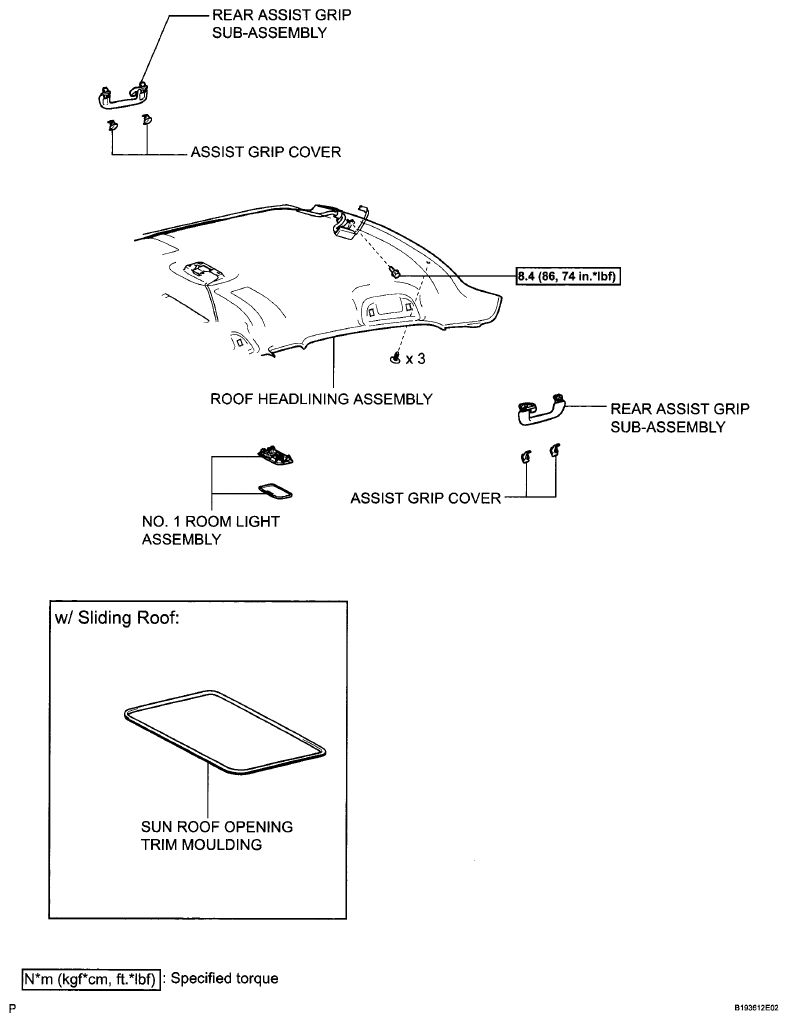

Fig 3: Back Window Glass Replacement Components With Torque Specifications (3 Of 4)
G06015958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

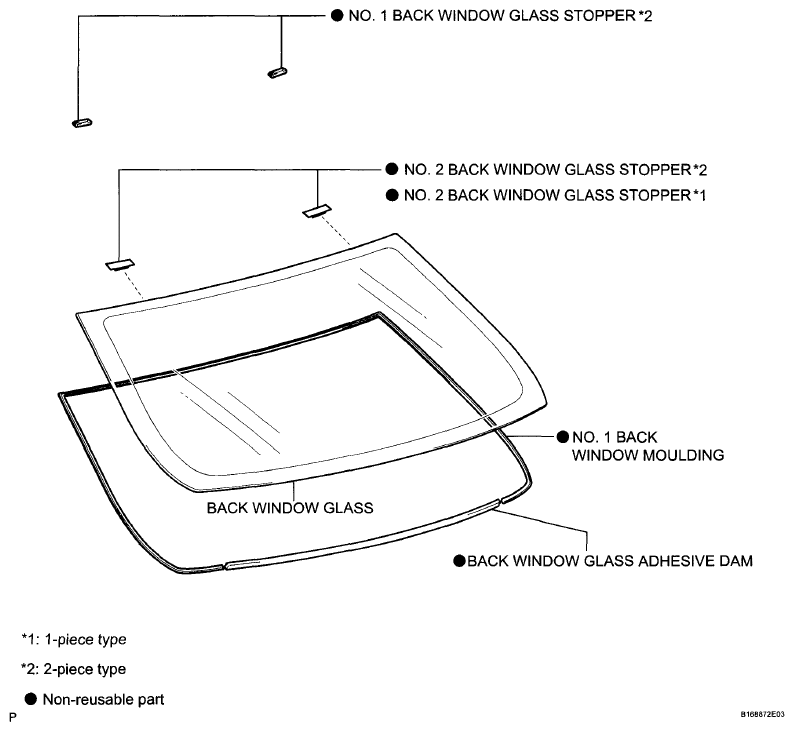

Fig 4: Identifying Back Window Glass Components (4 Of 4)
G06015959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
