Rear Power Window Switch: Installation

  1. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY  (See REASSEMBLY )
  2. INSTALL REAR DOOR ARMREST UPPER BASE PANEL  (See REASSEMBLY )

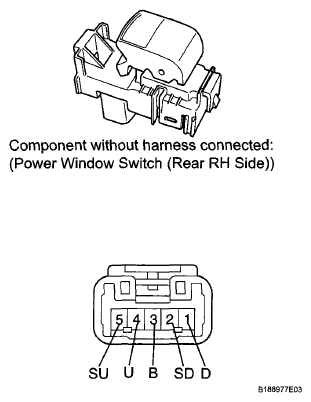

    Fig 1: Identifying Rear RH Power Window Switch Assembly Connector Terminals
    G06015904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
