Steering Wheel: Components

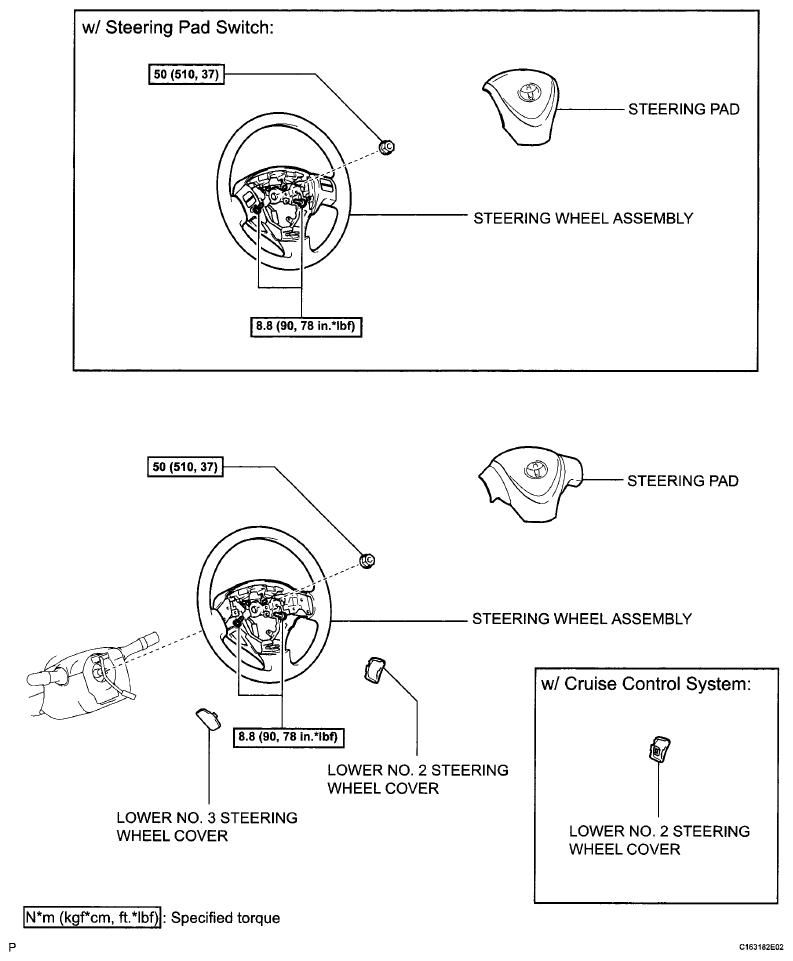

Fig 1: Steering Wheel Assembly Replacement Components With Torque Specifications (1 Of 5)
G06015318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

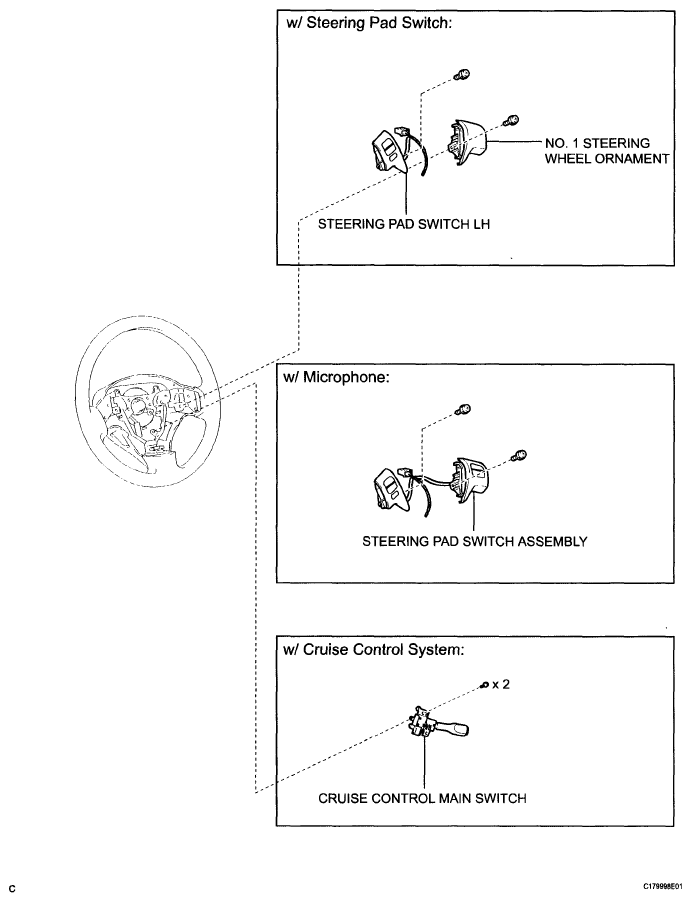

Fig 2: Identifying Steering Pad Switch Components
G06010407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Lower Steering Wheel Boss Cover And Steering Wheel Pad Attaching Screws
G06010408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
