Control Units

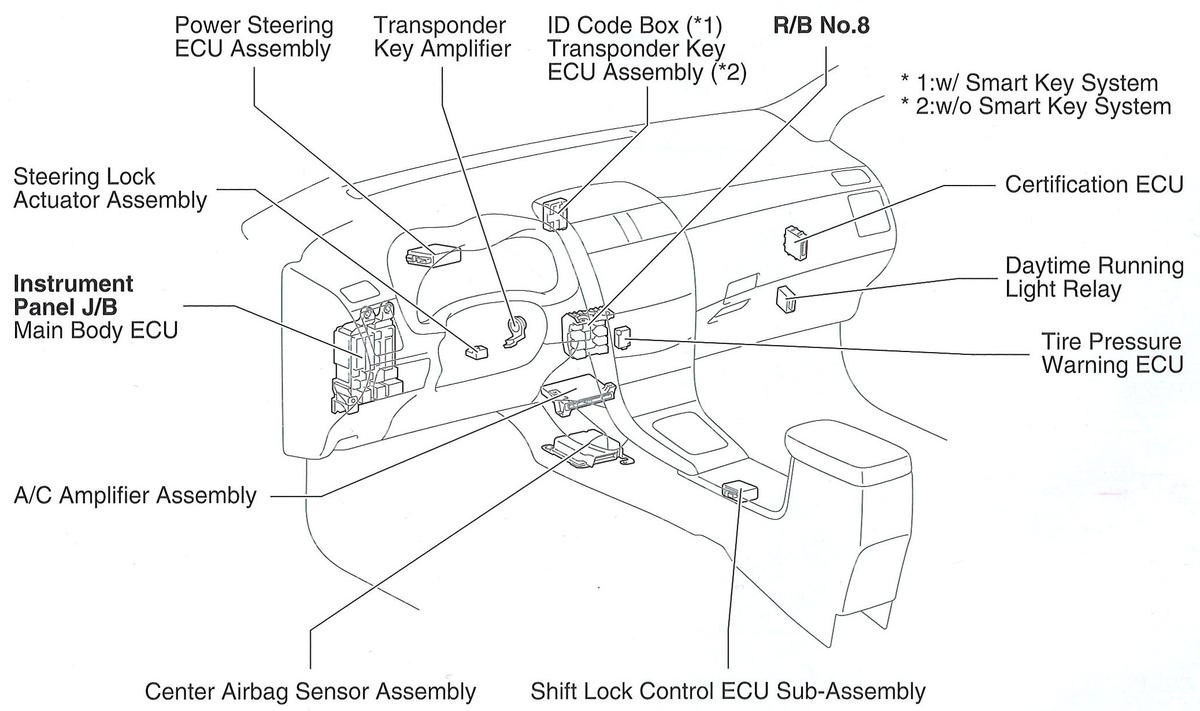

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Canister Pump Module | Under left rear of vehicle. See Figure. |
| Certification ECU | Right side of dash. See Figure. |
| Cooling Fan ECU | Left front of engine compartment. See Figure. |
| ECM | Left side of engine compartment. See Figure. |
| Main Body ECU | Instrument panel J/B. See Figure. |
| Occupant Detection ECU | Under front passenger's seat. See Figure. |
| Power Steering ECU Assembly | Steering column. See Figure. |
| Shift Lock Control ECU Sub-Assembly | Under center console. See Figure. |
| Sliding Roof Control ECU | Front center of roof. See Figure. |
| Tire Pressure Warning ECU | Center of dash. See Figure. |
| Transponder Key ECU Assembly | Center of dash. See Figure. |
