Remote Up/Down Function does not Operate: Wiring Diagram

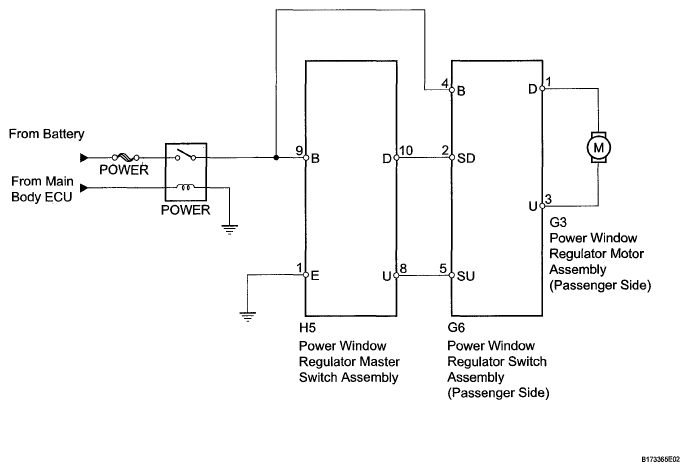

Fig 1: Remote Up /Down Function Does Not Operate - Wiring Diagram
G05581163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
