Audio System: Notes

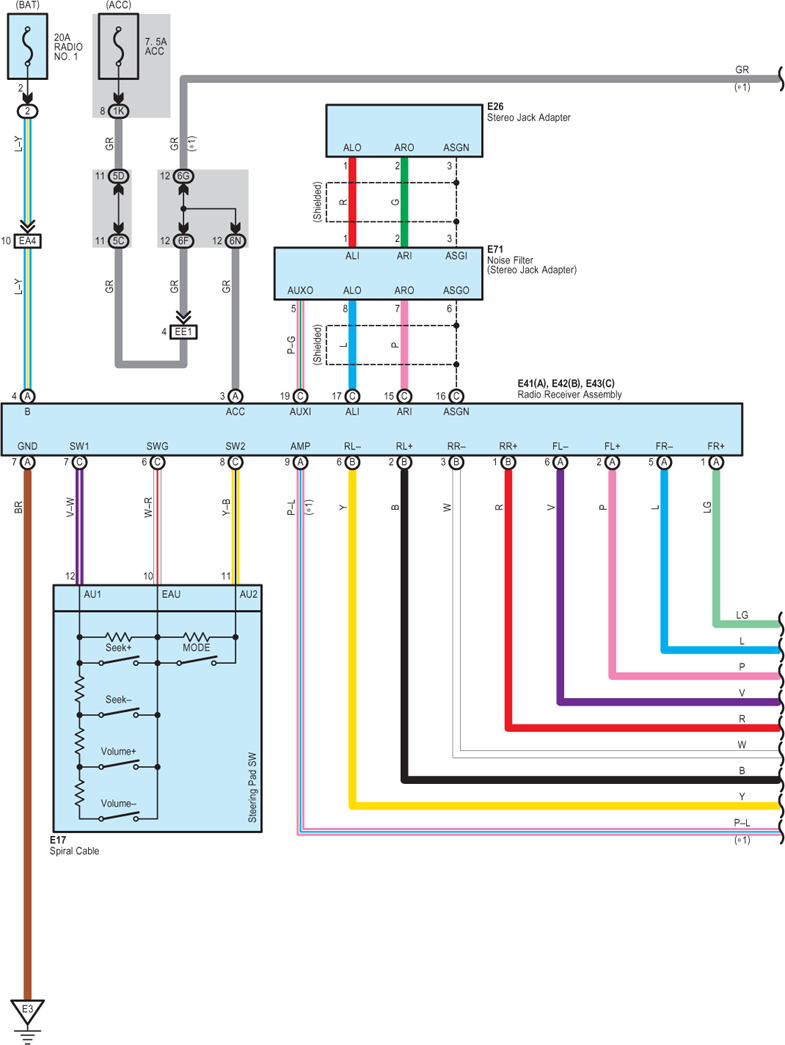

Fig 1: Audio System - Circuit Diagram (1 Of 4)
G07606656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

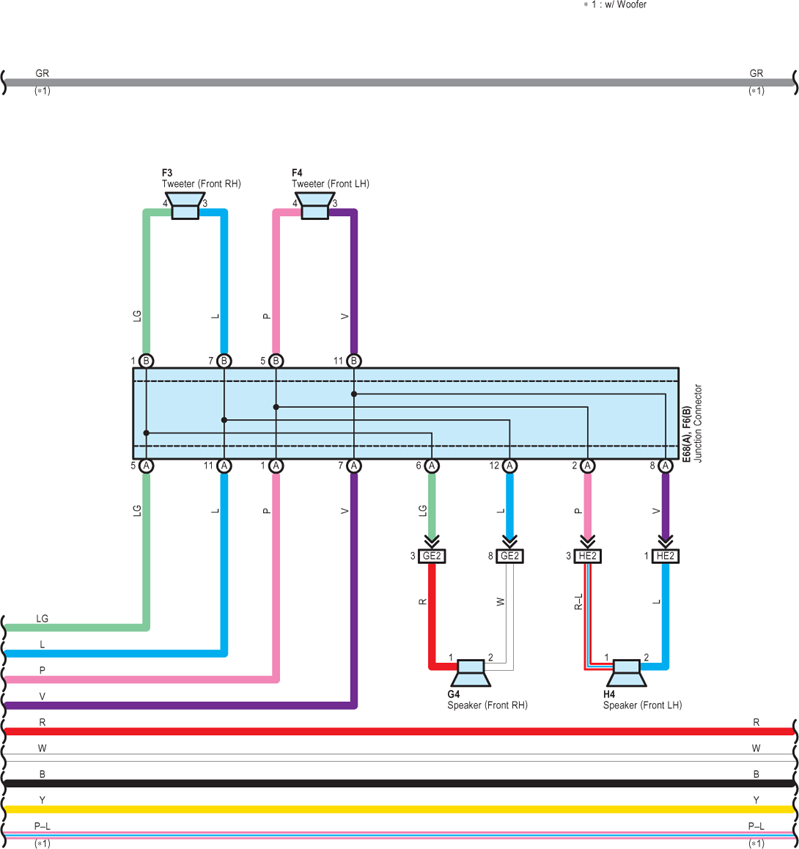

Fig 2: Audio System - Circuit Diagram (2 Of 4)
G07606657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

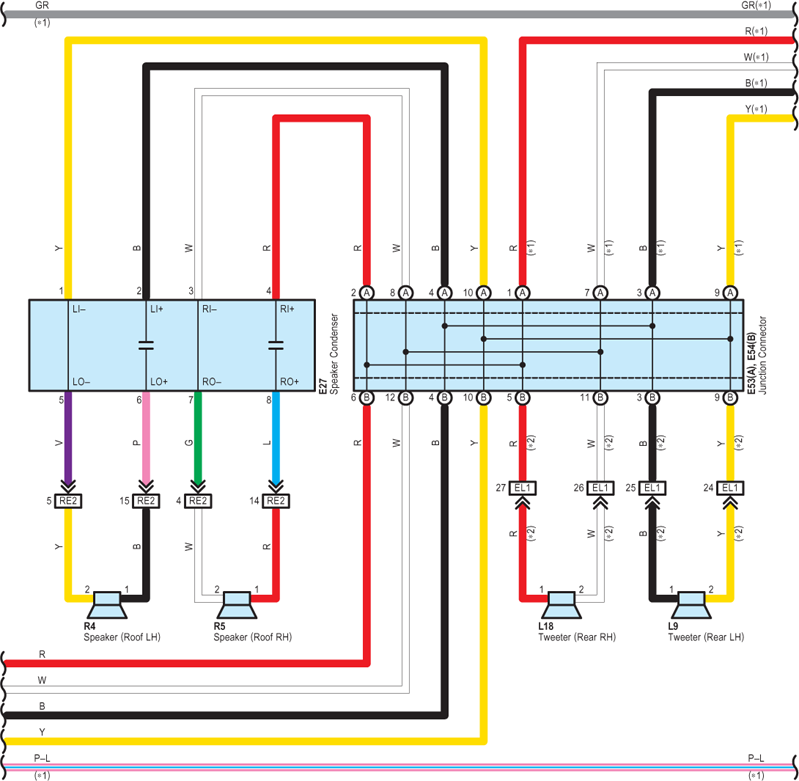

Fig 3: Audio System - Circuit Diagram (3 Of 4)
G07606658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

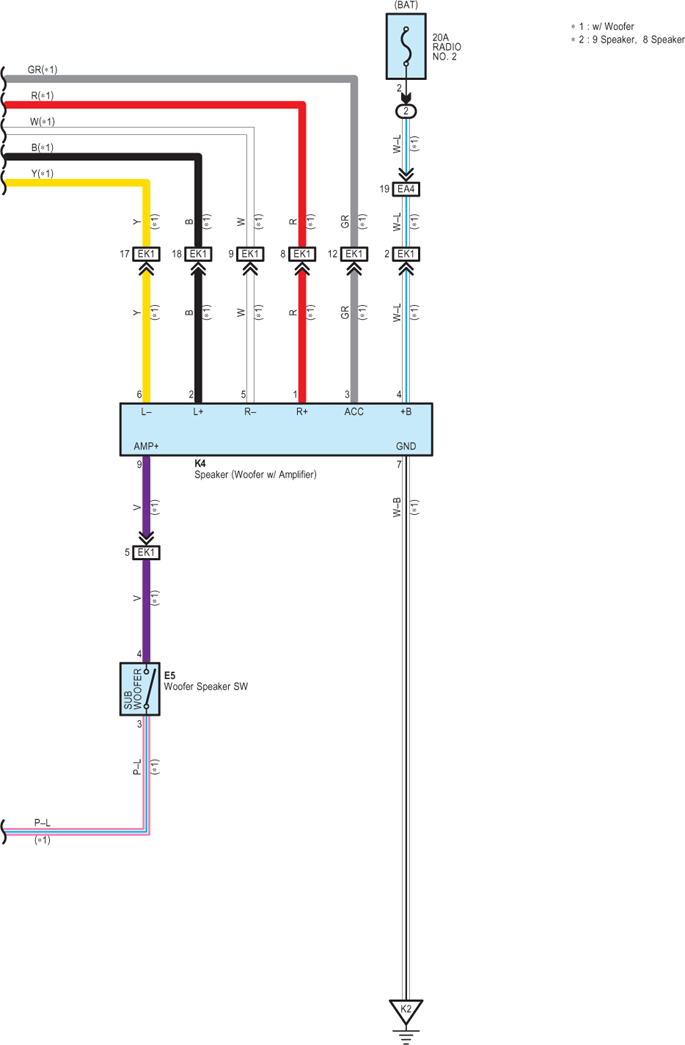

Fig 4: Audio System - Circuit Diagram (4 Of 4)
G07606659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
