System Diagram

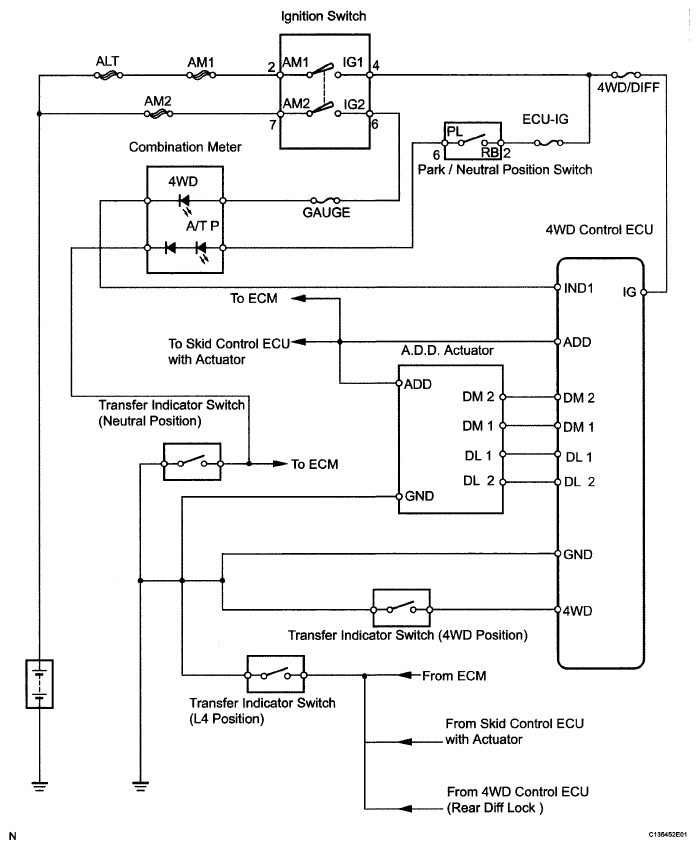

Fig 1: Identifying Transfer System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
