Rear Coil Spring: Components

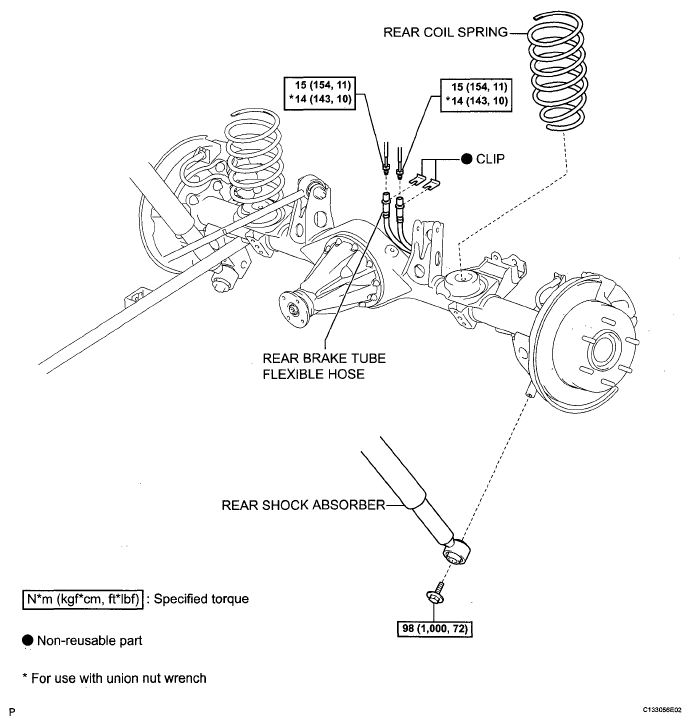

Fig 1: Rear Coil Spring Replacement Components With Torque Specifications
G05579651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
