Rear Lateral Control Rod: Components

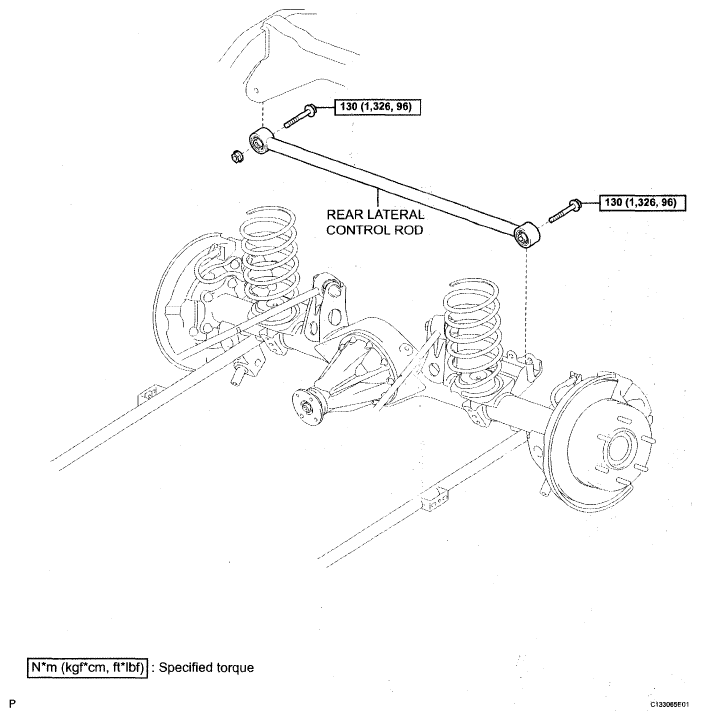

Fig 1: Rear Lateral Control Rod With Torque Specifications
G05112181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
