Rear Lower Control Arm: Components

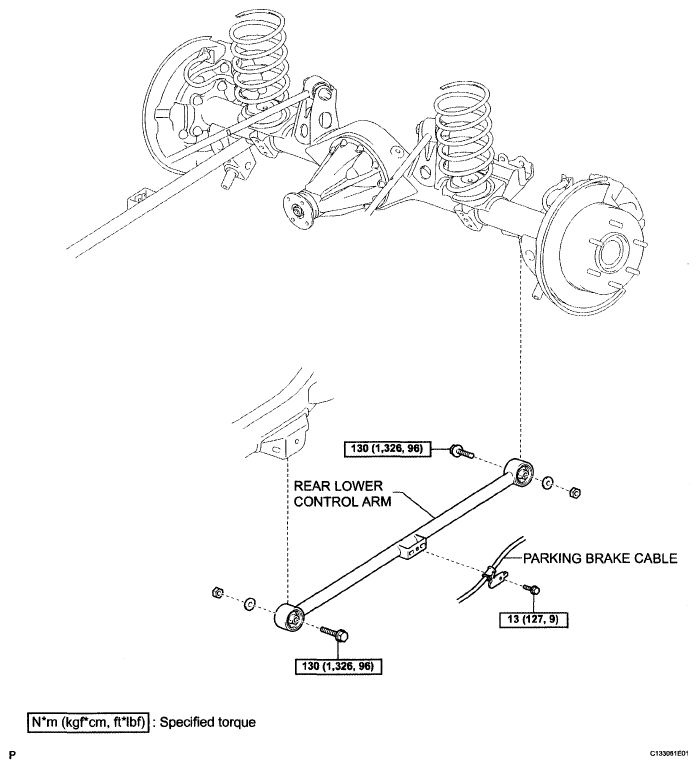

Fig 1: Rear Lower Control Arm Replacement Components With Torque Specifications
G05112172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
