Fuel Pump: Components

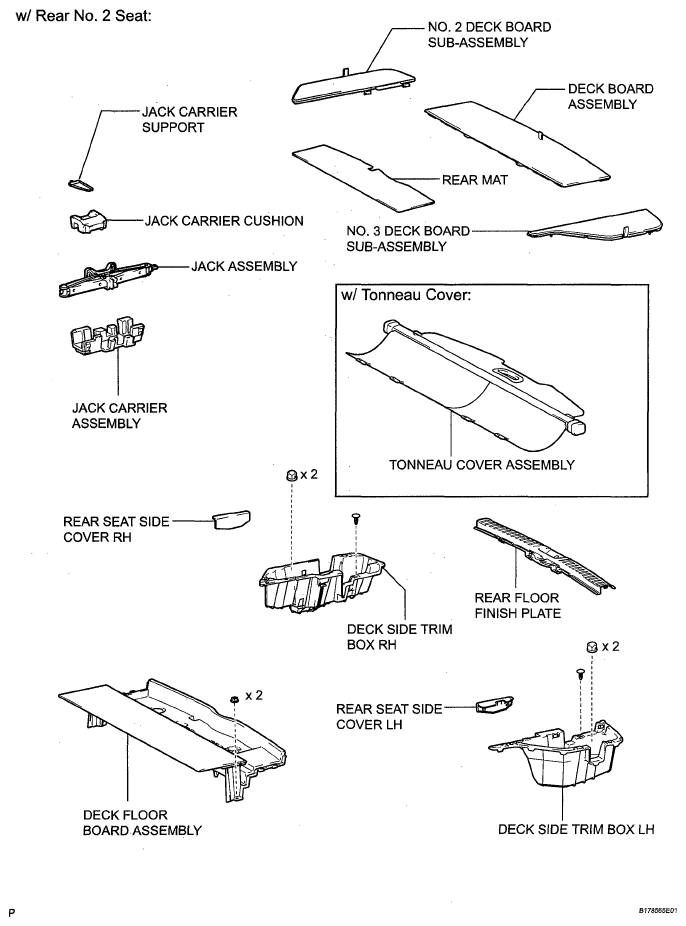

Fig 1: Fuel Pump Replacement Components With Torque Specifications (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

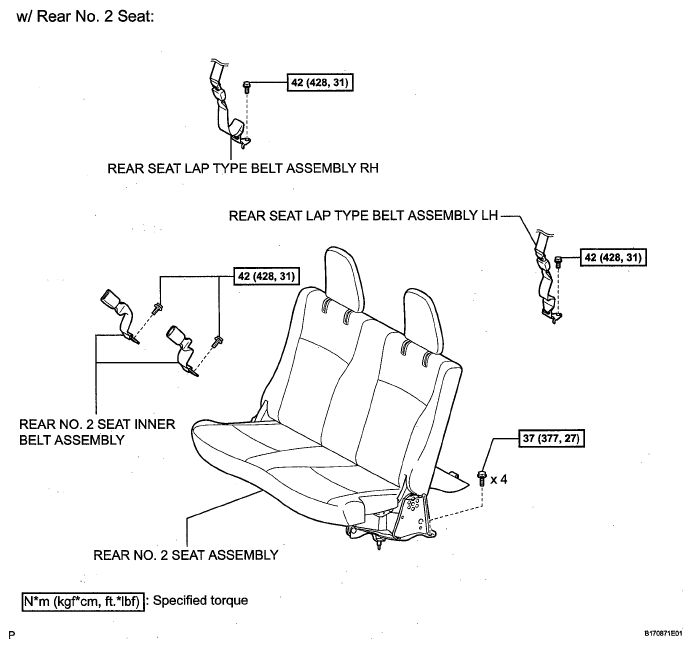

Fig 2: Fuel Pump Replacement Components With Torque Specifications (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

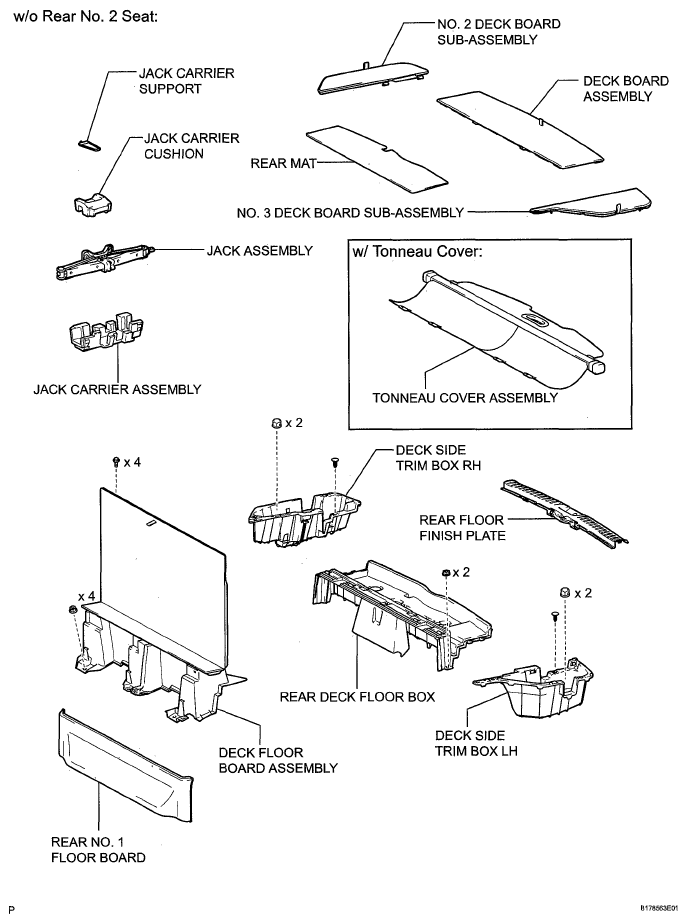

Fig 3: Fuel Pump Replacement Components With Torque Specifications (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

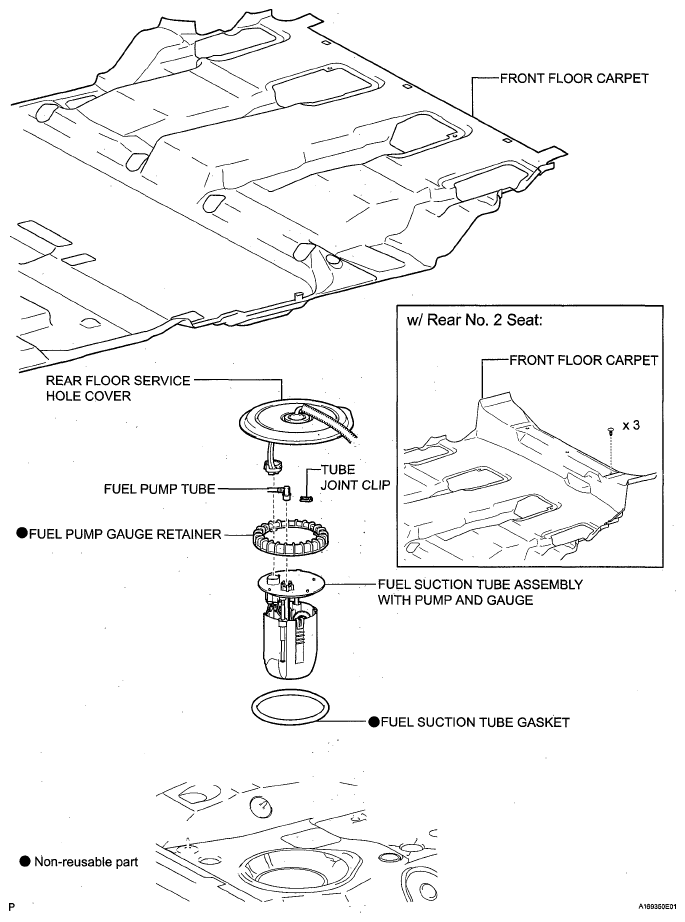

Fig 4: Fuel Pump Replacement Components With Torque Specifications (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Fuel Pump Replacement Components With Torque Specifications (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

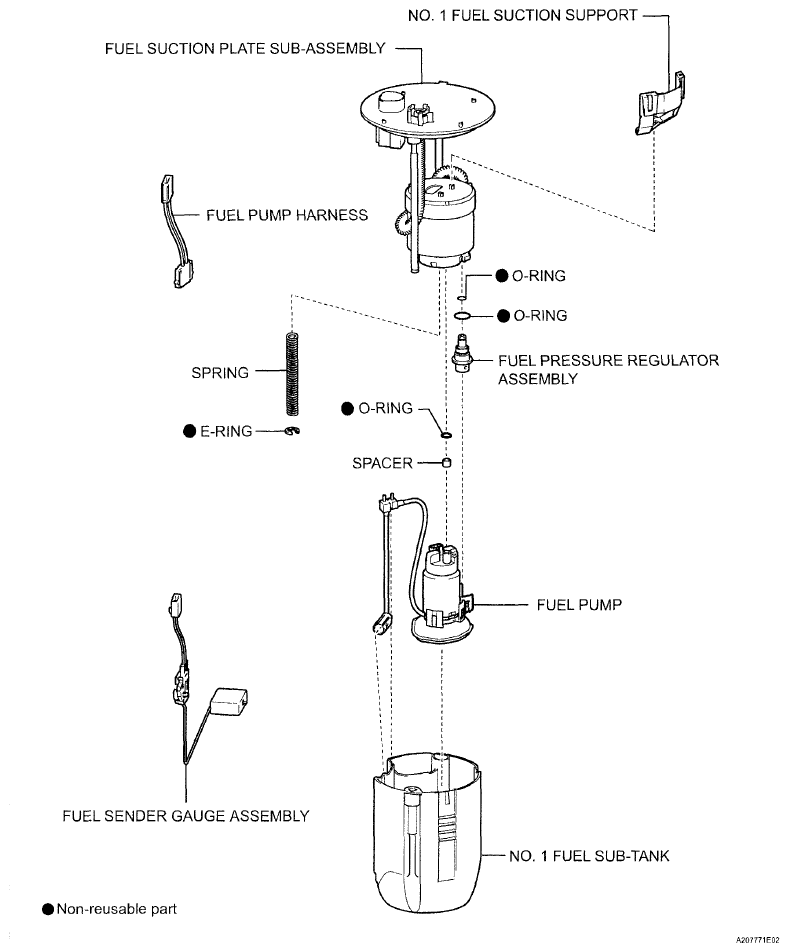

Fig 6: Fuel Pump Replacement Components With Torque Specifications (6 Of 9)

Fig 7: Fuel Pump Replacement Components With Torque Specifications (7 Of 9)

Fig 8: Fuel Pump Replacement Components With Torque Specifications (8 Of 9)

Fig 9: Fuel Pump Replacement Components With Torque Specifications (9 Of 9)
