System Diagram

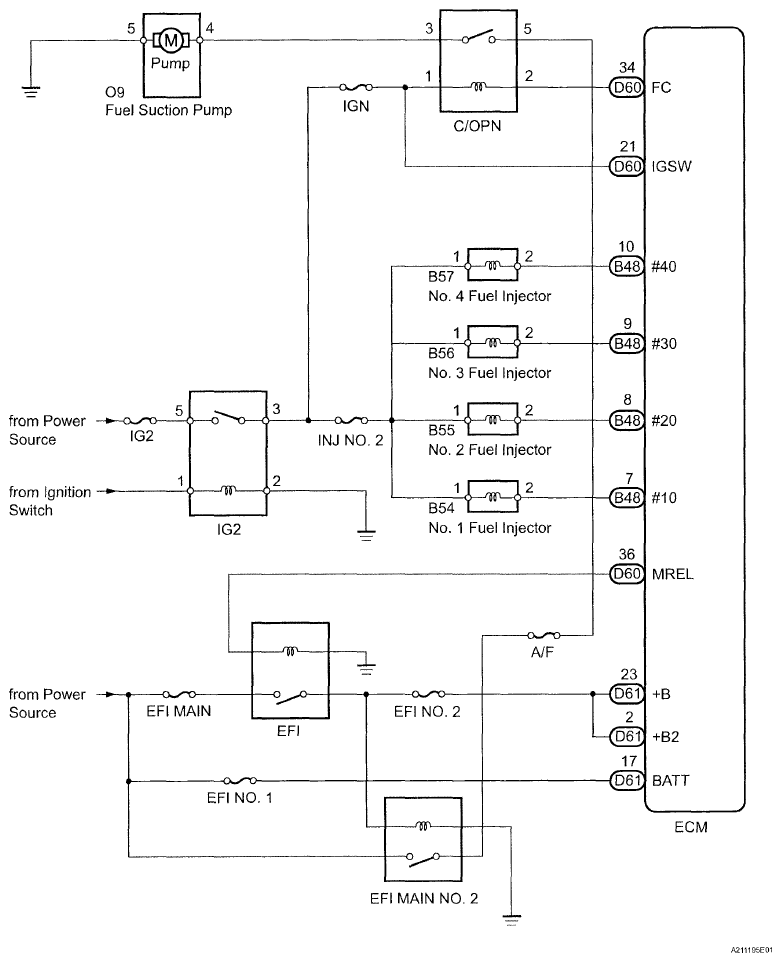

  1. FUEL SYSTEM WIRING DIAGRAM
Fig 1: Fuel System Wiring Diagram
G06112993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
