Heated Oxygen Sensor: Components

Fig 1: Identifying Heated Oxygen Sensor Components (1 Of 2)
G05414072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

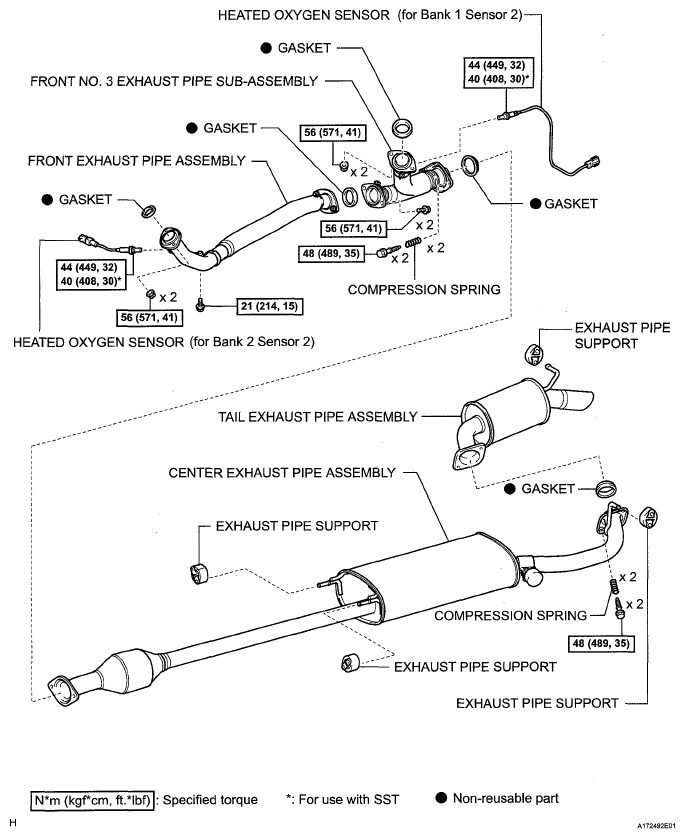

Fig 2: Identifying Heated Oxygen Sensor Components (2 Of 2)
G05414083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
