DTC C1340/47 Center Differential Lock Circuit: Wiring Diagram

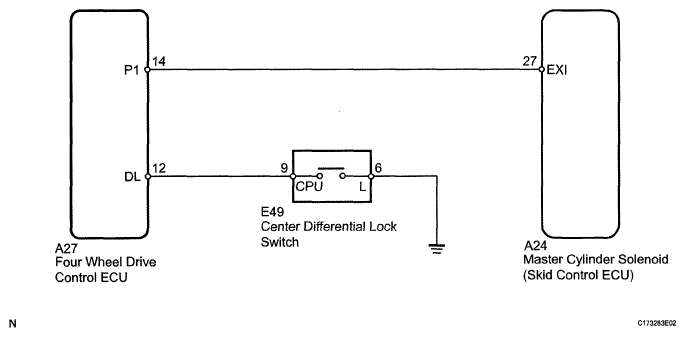

Fig 1: Center Differential Lock - Wiring Diagram
G05629905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
