Air Injection Driver: Components

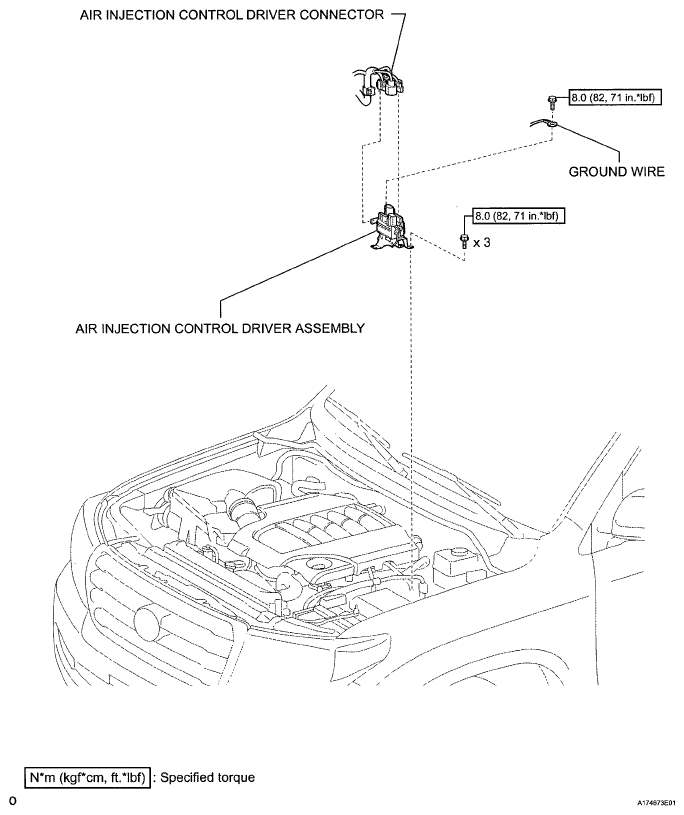

Fig 1: Identifying Air Injection Driver Replacement Components With Torque Specifications (1 Of 2)
G05637952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

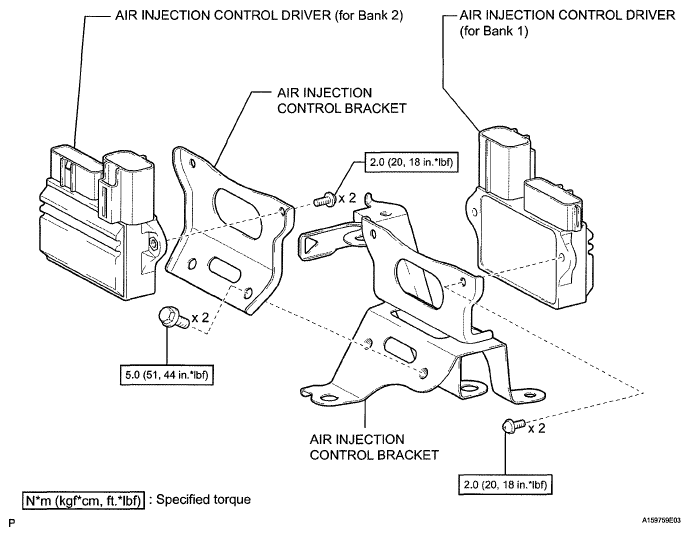

Fig 2: Identifying Air Injection Driver Replacement Components With Torque Specifications (2 Of 2)
G05637953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
